0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working

0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working

    • 0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working
    • 0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working
    • 0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working
    • 0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working
  • 0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working

    Product Details:

    Place of Origin: China
    Brand Name: Roxmech
    Model Number: RL-0.6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: no package
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Product Name: 0.6 Cubic Meter Underground Mining Loader Rated Capacity: 0.6 Cubic Meter
    Rated Load Capacity: 1200kg Engine: Detuz BF4L2011
    Usage: Ore Mining, Tunnel Application: Underground Mining

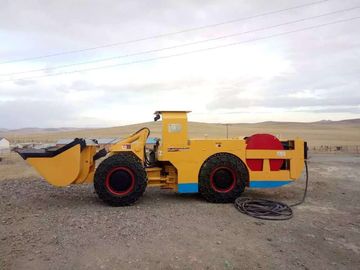

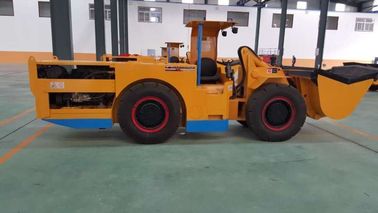

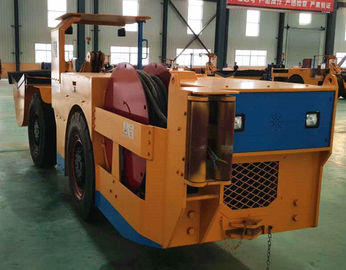

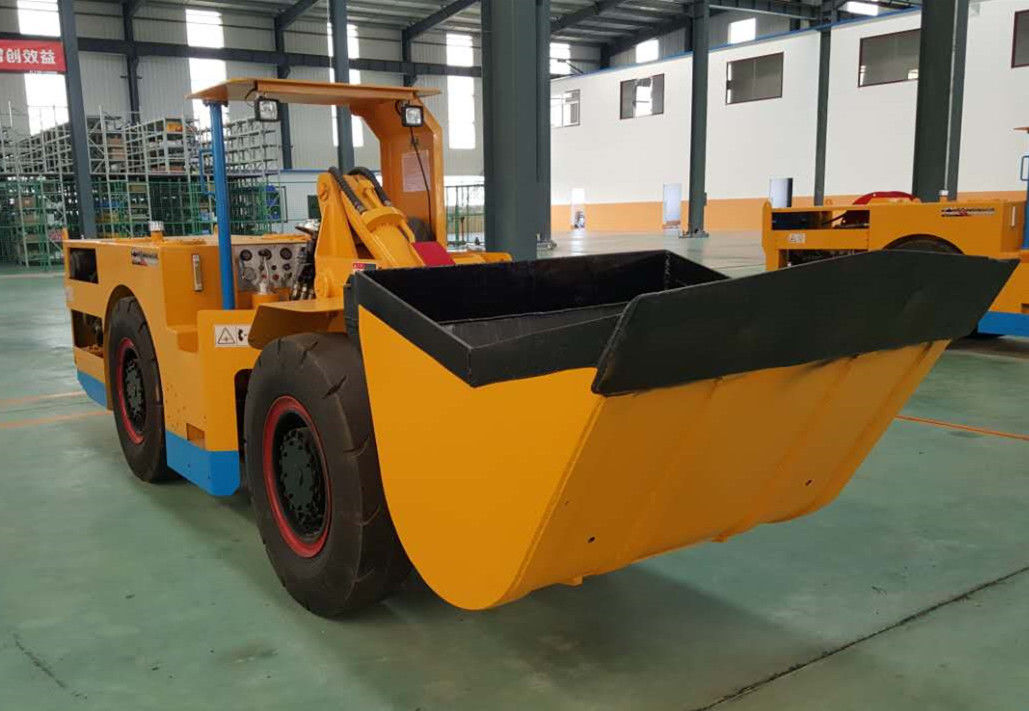

    0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working

    The RL-0.6 Load-Haul-Dump Machine is ideal for small size rock excavation operations. The RL-0.6 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.



    Product Technical Reference



    RL- 0.6 Load-Haul-Dump Machine Main Dimensions
    Engine Deutz Model: BF4L2011, Rate Power: 47.5KW
    Rated Bucket Capacity 0.6m³
    Brake System Using Spring and Hydraulic break system.
    Rated Load Capacity 1.2t
    Maximum Relieving Force 35kN
    Maximum Traction 42kN
    Driving Speed 0-9km/h
    Maximum Climbing Capacity 20°
    Maximum Discharge Height 690mm
    Minimum Discharge Distance 800 mm
    Minimum Turning Radius

    3350mm (Outboard of bucket)

    1830mm (insideof back wheel)

    Maximum Steering Angle ±38°
    Departure Angle 16°
    Weight of the Whole Machine 4.5t
    Size

    Length (Bucket in haul position) 4850mm

    Width 1160mm

    Height of the Cab 1850mm





    Applications

    Underground Mining

    Hydropower Tunneling

    Roadway/Railway Tunneling



    Drawing

    0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working

    0.6 M3/ 0.75 Yard Scraper Load Haul Dump Machine For Underground Mining Working
