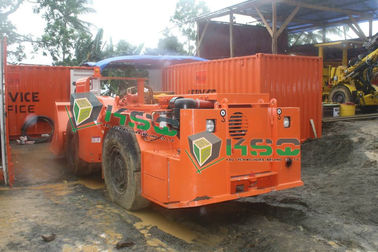

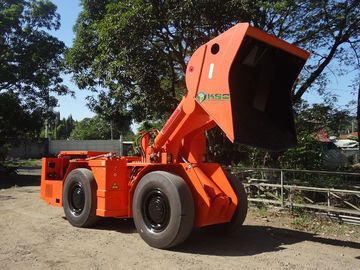

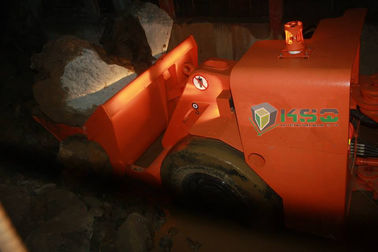

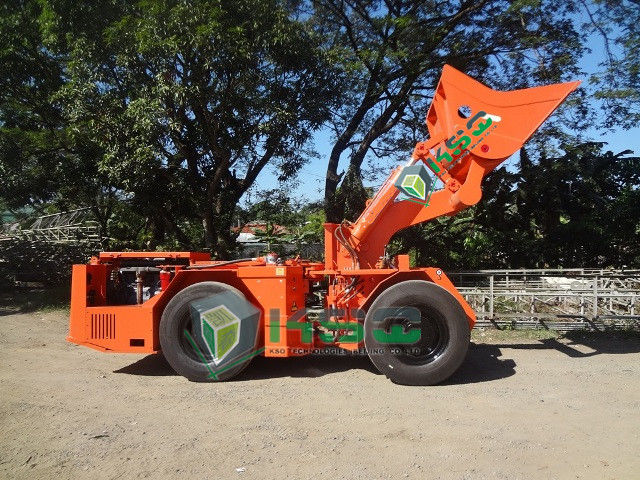

Orange Load Haul Dump Machine , Two Cubic Meters underground lhd machines

Orange Load Haul Dump Machine , Two Cubic Meters underground lhd machines

    • Orange Load Haul Dump Machine , Two Cubic Meters underground lhd machines
    • Orange Load Haul Dump Machine , Two Cubic Meters underground lhd machines
    • Orange Load Haul Dump Machine , Two Cubic Meters underground lhd machines
    • Orange Load Haul Dump Machine , Two Cubic Meters underground lhd machines
  • Orange Load Haul Dump Machine , Two Cubic Meters underground lhd machines

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE, ISO
    Model Number: RL-2 Load Haul Dump Machine/ScoopTram/Scraper

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 2 Months
    Payment Terms: T/T, L/C, D/A, D/P, Western Union
    Contact Now
    Detailed Product Description
    Color:: Orange/Yellow/White Bucket Capacity:: Two Cubic Meters
    Engine:: DEUTZ F6L912W Air Cooled Diesel Engine Tramming Capacity:: 4000kg

    Competitive Advantage:



    1. Original DEUTZ engine

    2. Very competitive pricing

    3. Competitive delivery time

    4. CE, ISO9001 Certified



    Applications:

    • Underground Mining
    • Hydropower Tunneling
    • Roadway/Railway Tunneling
    • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)


    Operation Advantage:

    the RL-2 Load-Haul-Dump Machine is ideal for small to medium size rock excavation operations.
    The RL-2 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.





    Main Technical Configurations:



    Main Dimensions Length 6875mm(haul position)
    Width 1770mm
    Height 1950mm
    Turning Radius Inside 2600mm
    Outside 4886mm
    Volume Capacity   2m3
    Tramming Capacity   4000kg
    Engine   DEUTZ F6L912W air cooled diesel engine
    Torque Converter   DANA C272
    Transmission   DANA RT20000
    Axles   MERITOR CY-2J
    Tires   12.00-24.00 L5-S



    Shotcrete Robot Arm

    CE Certified Underground Mining Load Haul Dumper with Concrete Shotcrete Robot Arm, KSQ RL-2 LHD





    Packaging & Shipping

    China 2 Cubic Meters Bucket Capacity Tunnel Load Haul Dump Machine with ability to install Shotcrete Robot Arm, KSQ RL-2 LHDChina 2 Cubic Meters Bucket Capacity Tunnel Load Haul Dump Machine with ability to install Shotcrete Robot Arm, KSQ RL-2 LHDChina 2 Cubic Meters Bucket Capacity Tunnel Load Haul Dump Machine with ability to install Shotcrete Robot Arm, KSQ RL-2 LHDChina 2 Cubic Meters Bucket Capacity Tunnel Load Haul Dump Machine with ability to install Shotcrete Robot Arm, KSQ RL-2 LHDChina 2 Cubic Meters Bucket Capacity Tunnel Load Haul Dump Machine with ability to install Shotcrete Robot Arm, KSQ RL-2 LHD
