    Detailed Product Description
    Name: DTH Hammer Series: CIR, BR, COP,DHD,MISSION,QL,SD,NUMA
    Size: 3'', 3.5'', 4'', 5'', 6'' ,8'', 10'', 12'' Etc. Type: With Foot Valve, No Foot Valve
    Use: Tunneling, Mining,Quarrying,Water Well Color: Green,Black ,Orange ,Blue,Golden

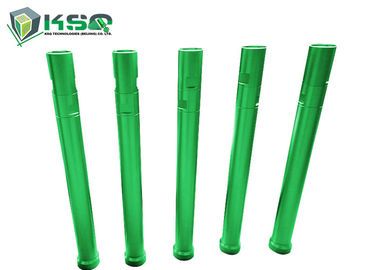

    5.0'' QL DHD COP Series DTH Hammers / down the hole hammers



    In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.

    Basic Information



    Items Replacement Parts
    1 Top sub
    2 O-ring of top sub
    3 Breakout Ring
    4 Check Valve
    5 Spring
    6 Compression Buffer
    7 Air Distributor
    8 Internal cylinder
    9 Piston
    10 External cylinder
    11 Guide sleeve
    12 O-ring of stop ring
    13 Stop ring
    14 Breakout ring
    15 Drive chunk
    16 Drill bit



    Drilling Diameter(mm) Hammer Length(mm) External Diameter(mm) Weight(kg)
    φ135-φ155 1156(without bit) 125 73(without bit)
    Working Pressure(Mpa) Air Consumption(m³/min)
    1.3-2.3 1.0Mpa: 9m³/min 1.8Mpa: 15m³/min 2.4Mpa: 23m³/min
    Impact rate at 17 bar Connection Rod Thread Recommended Rotation Speed  Bit Shank
    25HZ

    API 3 1/2'' Reg

    API 2 7/8'' Reg

    25-40r/min.

    QL50 (with foot valve)



    Applications


    • Underground mining
    • Down the hole rock drilling


    Competitive Advantage


    •  Valveless air distribution, more reliable.

    •  Simple design of the piston. Long life span.

    •  More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.

    •  Fewer internal parts, simple structure, less failure and easier to maintain.

    •  Easy to disassembled because the top sub, the drive chuck and the external cylinder are connected by       multiple steps thread.
