Chisel Bit Integral Drill Rod Steel rock mining tools efficiency

Chisel Bit Integral Drill Rod Steel rock mining tools efficiency

    • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
    • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
    • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
    • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
    • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
    • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
    • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
  • Chisel Bit Integral Drill Rod Steel rock mining tools efficiency

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: SGS Certification
    Model Number: Integral Rod with Chisel Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 20pcs
    Price: negotiation
    Packaging Details: Wooden box
    Delivery Time: 20-25days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union
    Supply Ability: 30000 Per Month
    Contact Now
    Detailed Product Description
    Color:: Black Material: Hollow Steel Rod With Chisel Tungsten Carbide
    Application: Tunnel, Quarry, Bench Rock Drilling

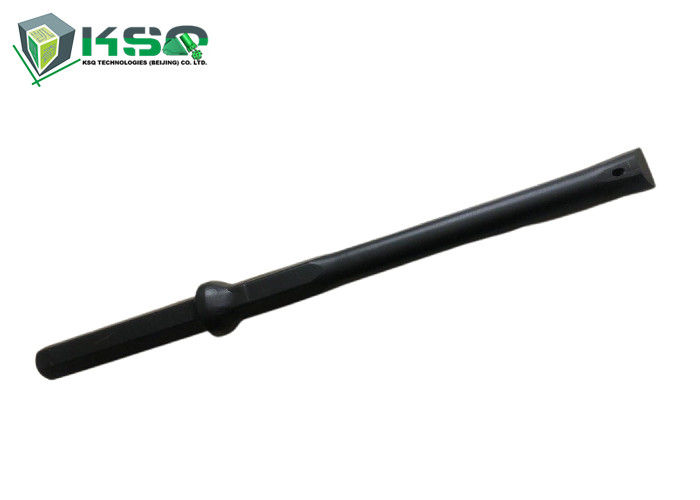

    Chisel Bit Integral Drill Rod Steel rock mining tools efficiency

    Name: Integral Drill Rod

    Brand:MIROC

    Original: China

    The Hex22 Integral drills steels, Hex22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry.

    Main Features

    Shank: Hex22x108mm

    Length: 400mm-8000mm

    Chisel bit diameter: 26mm-41mm



    Integral Steel Rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.

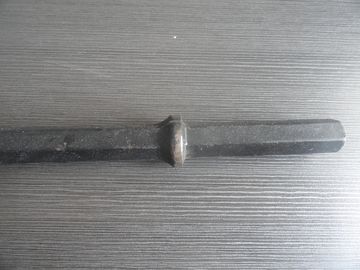

    Chisel Bit Integral Drill Rod Steel rock mining tools efficiency





    Length Dia. Weight Part Number Produce Code
    mm ft mm kg
    800 2 5/8 34 3 4148300035 IH22-C34-800
    1600 5 1/4 33 5.2 4148300036 IH22-C33-1600
    2400 7 7/8 32 8 4148300037 IH22-C32-2400
    3200 10 1/2 31 10.2 4148300038 IH22-C31-3200
    4000 13 1/8 30 12.9 4148300039 IH22-C30-4000
    4800 15 3/4 29 15.1 4148300040 IH22-C29-4800
    5600 18 3/8 28 17.6 4148300041 IH22-C28-5600
    6400 21 27 20.1 4148300042 IH22-C27-6400
    7200 23 5/8 26 22.5 4148300043 IH22-C26-7200

    800 2 5/8 40 3 4148300044 IH22-C40-800
    1600 5 1/4 39 5.2 4148300045 IH22-C39-1600
    2400 7 7/8 38 8 4148300046 IH22-C38-2400-1
    3200 10 1/2 37 10.2 4148300047 IH22-C37-3200
    4000 13 1/8 36 12.9 4148300048 IH22-C36-4000
    4800 15 3/4 35 15.1 4148300049 IH22-C35-4800
    5600 18 3/8 34 17.6 4148300050 IH22-C34-5600
    6400 21 33 20.1 4148300051 IH22-C33-6400
    7200 23 5/8 32 22.5 4148300052 IH22-C32-7200
    8000 26 1/4 31 25 4148300053 IH22-C31-8000



    Length Dia. Weight Part Number Produce Code
    mm ft mm kg
    400 1 1/3 34 1.7 4148300054 IH22-C34-400
    800 2 5/8 33 3 4148300055 IH22-C33-800
    1200 4 32 4.1 4148300056 IH22-C32-1200
    1600 5 1/4 31 5.2 4148300057 IH22-C31-1600
    2000 6 5/9 30 6.7 4148300058 IH22-C30-2000

    600 2 41 2.4 4148300059 IH22-C41-600
    1200 4 40 4.3 4148300060 IH22-C40-1200
    1800 6 39 6.2 4148300061 IH22-C39-1800
    2400 7 7/8 38 8 4148300062 IH22-C38-2400-2

    400 1 1/3 41 1.7 4148300063 IH22-C41-400
    800 2 5/8 29 3 4148300064 IH22-C29-800
    800 2 5/8 38 3.1 4148300065 IH22-C38-800
    1200 4 39 4.3 4148300066 IH22-C39-1200
    1600 5 1/4 36 5.2 4148300067 IH22-C36-1600
    1800 6 36 6 4148300068 IH22-C36-1800
    2000 6 5/9 32 6.7 4148300069 IH22-C32-2000
    2400 7 7/8 27 8 4148300070 IH22-C27-2400
    3200 10 1/2 27 10.2 4148300071 IH22-C27-3200
    3200 10 1/2 32 10.3 4148300072 IH22-C32-3200
    6400 21 30 20.1 4148300073 IH22-C30-6400
    8000 26 1/4 26 25 4148300074 IH22-C26-8000



    drill rod | la barra de taladro | broca Rod | forer tige | Bohrgestänge | çubuk matkap | drill rod hard rock Mining Integral drill steel,Integral drill rod



    Chisel Bit Integral Drill Rod Steel rock mining tools efficiency
