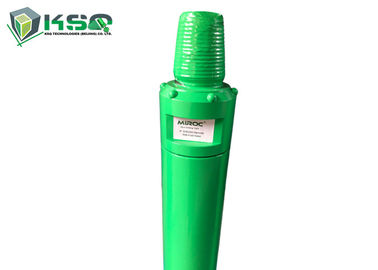

YELLOW 5.0'' QL50 DHD350 M50 SD5 Series DTH Hammers Down the Hole

YELLOW 5.0'' QL50 DHD350 M50 SD5 Series DTH Hammers Down the Hole

YELLOW 5.0'' QL50 DHD350 M50 SD5 Series DTH Hammers Down the Hole

Product Details:

Place of Origin: China
Brand Name: MIROC
Certification: API
Model Number: DTH Hammer

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece DTH Hammer
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Name: DTH Hammer Series: CIR, BR, COP,DHD,MISSION,QL,SD,NUMA
Size: 3'', 3.5'', 4'', 5'', 6'' ,8'', 10'', 12'' Etc. Type: With Foot Valve, No Foot Valve
Use: Tunneling, Mining,Quarrying,Water Well Color: Green,Black ,Orange ,Blue,Golden

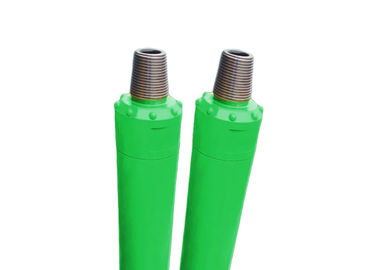

 YELLOW 5.0'' QL50 DHD350 M50 SD5 Series DTH Hammers Down the Hole


QL50 Hammer Specification:


Drilling Diameter(mm) Hammer Length(mm) External Diameter(mm) Weight(kg)
φ135-φ155 1156(without bit) 125 73(without bit)
Working Pressure(Mpa) Air Consumption(m³/min)
1.3-2.3 1.0Mpa: 9m³/min 1.8Mpa: 15m³/min 2.4Mpa: 23m³/min
Impact rate at 17 bar Connection Rod Thread Recommended Rotation Speed  Bit Shank
25HZ

API 3 1/2'' Reg
API 2 7/8'' Reg

25-40r/min.

QL50 (with foot valve)


COP54/ DHD350R Hammer Specification


Drilling Diameter(mm) Hammer Length Without Bit(mm) External Diameter(mm) Weight Without Bit(kg)
φ135-φ155 1214 125 76.5
Working Pressure(Mpa) Air Consumption(m³/min)
1.3-2.3 Mpa 1.0Mpa: 9 m³/min 1.8Mpa: 15 m³/min 2.4Mpa: 23 m³/min
Impact rate at 17 bar Recommended Rotation Speed Connection Rod Thread Bit Shank
25HZ 20-35 r/min. API 2 3/8'' Reg, API 3 1/2'' Reg, API 2 7/8'' Reg, COP54/DHD350R



YELLOW 5.0'' QL50 DHD350 M50 SD5 Series DTH Hammers Down the Hole

Advantages:

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe


KSQ Related Rock Drilling Tools:

(1) Integral Drill Rod–Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming     bit,extension rod, MF-Rod, coupling sleeve of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, Sandvik, Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit.
Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.


Company Information
 KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
