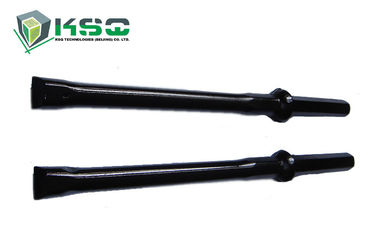

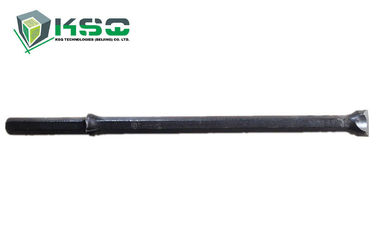

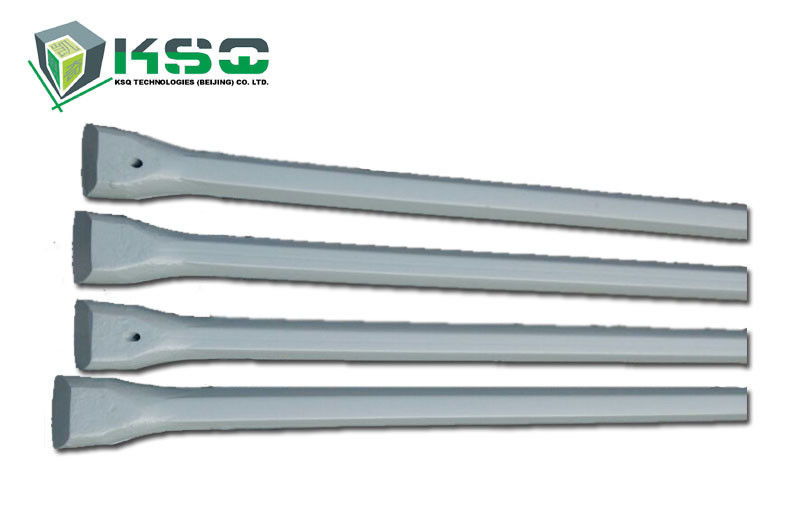

Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank

Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank

    • Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank
    • Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank
    • Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank
    • Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank
    • Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank
    • Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank
  • Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: SGS Certification
    Model Number: Integral Rod with Chisel Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 20pcs
    Price: negotiation
    Packaging Details: Wooden box
    Delivery Time: 20-25days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union
    Supply Ability: 30000 Per Month
    Contact Now
    Detailed Product Description
    Color:: Black Material: Hollow Steel Rod With Chisel Tungsten Carbide
    Application: Tunnel, Quarry, Bench Rock Drilling



    Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank



    KSQ Beijing Integral Rod with Hex22x108mm Shank For Mining

    Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm

    Legnth: 400mm to 8000mm

    Shank: Hex22x108mm, Hex19mmx108mm, Hex25mmx159mm

    Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank





    Length Dia. Weight Part Number Produce Code
    mm ft mm kg
    800 2 5/8 34 3 4148300035 IH22-C34-800
    1600 5 1/4 33 5.2 4148300036 IH22-C33-1600
    2400 7 7/8 32 8 4148300037 IH22-C32-2400
    3200 10 1/2 31 10.2 4148300038 IH22-C31-3200
    4000 13 1/8 30 12.9 4148300039 IH22-C30-4000
    4800 15 3/4 29 15.1 4148300040 IH22-C29-4800
    5600 18 3/8 28 17.6 4148300041 IH22-C28-5600
    6400 21 27 20.1 4148300042 IH22-C27-6400
    7200 23 5/8 26 22.5 4148300043 IH22-C26-7200

    800 2 5/8 40 3 4148300044 IH22-C40-800
    1600 5 1/4 39 5.2 4148300045 IH22-C39-1600
    2400 7 7/8 38 8 4148300046 IH22-C38-2400-1
    3200 10 1/2 37 10.2 4148300047 IH22-C37-3200
    4000 13 1/8 36 12.9 4148300048 IH22-C36-4000
    4800 15 3/4 35 15.1 4148300049 IH22-C35-4800
    5600 18 3/8 34 17.6 4148300050 IH22-C34-5600
    6400 21 33 20.1 4148300051 IH22-C33-6400
    7200 23 5/8 32 22.5 4148300052 IH22-C32-7200
    8000 26 1/4 31 25 4148300053 IH22-C31-8000

    drill rod | la barra de taladro | broca Rod | forer tige | Bohrgestänge | çubuk matkap | drill rod hard rock Mining Integral drill steel,Integral drill rod

    Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank

    Hand Held Rock Dill Machines stone drilling tools with Hex22 x 108mm shank
