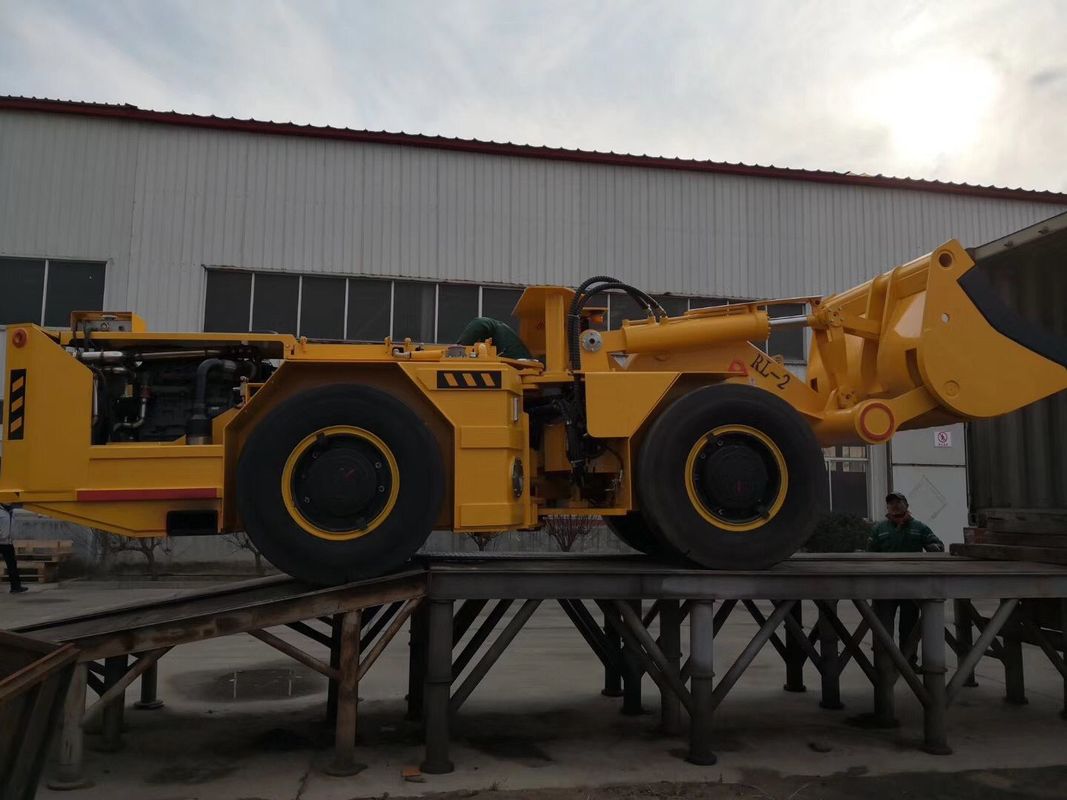

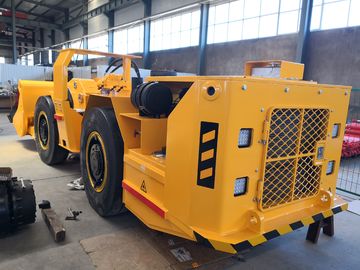

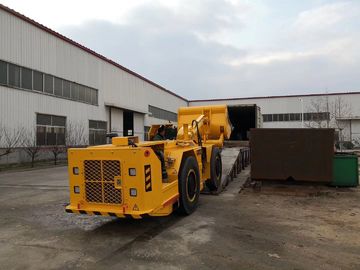

Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop

Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop

    • Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop
    • Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop
    • Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop
  • Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Model Number: RL-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: no package
    Delivery Time: 25-30 works days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Product Name: 2 Cubic Meters Underground Mining Scoop Rated Capacity: 4000kg
    Engine: Detuz BF4M1013EC Hydraulic Torque Converter: DANA C272
    Power Transmission: DANA R32000 Size(Length* Width* Height): 7300*1840*1960mm

    Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop



    Description



    The trusted workhorse of miners and tunneling professionals, the RL-2 Load-Haul-Dump Machine is ideal for small to medium scale rock excavation operations. The RL-2 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a
    small footprint and turning radius suitable for small envelope sizes, high proven reliability,and straight-forward mechanical components that are easy to maintain.



    Main Components

    • Engine:

                    Manufacturer DEUTZ

                    Model BF4M1013EC

                    Type Water cooled diesel engine

                     Rated power 115KW/2300rpm

    • Hydraulic torque converter

                    Manufacturer DANA

                    Model C272

                    Type Single stage two components with hydraulic pump drive

    • Power transmission

                    Manufacturer DANA

                    Model R32000

                    Type Power shift

    • Axles

                   Manufacturer Meitong, Xuzhou

                   Type Rigid planetary transmission bridge with NO-SPIN anti-skid differential

    • Brakes system

                   Include Service brake, Parking brake

                   Design SAHR brake for service brake and parking brake, the SAHR brakes on axle will act as both service and park brake

    • Hydraulic system

                   Include Working system, Steering system, Braking system, Filling system

                   Design The main components are imported from abroad



    Technical Datas

    1. Dimension

        Rated capacity 4,000kg

        Length 7300±100mm

        Width 1840±50mm

        Height 1960±50mm

        Standard bucket 2 m³

        Max. Lifting height 4070±100 mm

        Max. Unloading height 1880mm

        Min. Unloading distance ≥740 mm

        Unloading angel 40°

        Wheelbase 2540±15mm

        Min. Ground clearance ≥250mm

        Departure angle 15°

        Rear axle swing angle ±6°~±8°



    2. Weight 12900kg

       Heavy duty weight ≤16900kg



    3.Speed 1st gear 3.8±0.5 km/h

                  2nd gear 7.8±0.5 km/h

                 3rd gear 17.5±1.0 km/h

    Gradeability ≥12°(Heavy loaded)

    Maximum traction ≥110KN

    Maximum scooping force(SAE) ≥90KN



    4.Hydraulic system

    Working system rated pressure: 14MPa

    Steering system rated pressure: 14MPa

    Brake system rated pressure: 12.5MPa

    Hydraulic hoses JIC37



    5.Tank

    Fuel tank 100L

    Hydraulic oil tank 120L



    6. Electric system

    Working voltage 24V



    7. Driver’s cab

    Horizontal



    8. Steering

    Central articulated hydraulic power steering, controller by Joystick

    Steering angle ±42°

    Min. Turning radius Inner ≤ 4255mm

    Outer ≤ 6500mm



    Rl-2 Load Haul Dump Machine With Detuz Engine 4000kg Underground Mining Scoop
