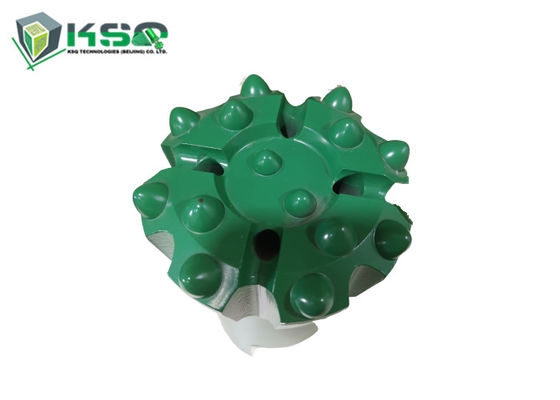

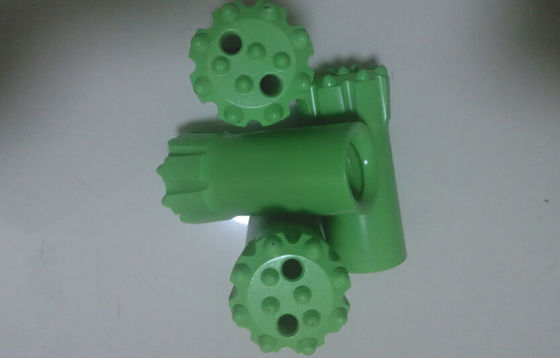

Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons

Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons

    • Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons
    • Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons
    • Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons
  • Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons

    Product Details:

    Place of Origin: Shangdong,China
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: 4148300437-4148300520

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-22days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Material: Tungsten Carbide Color: Green,Blue Or Based On Demand
    Use: Tunneling, Mining,Quarrying,Construction Design: Precise Design Suit Particular Needs
    Button Bit Shape: Spherical, Ballistic Service: Product Customization
    Type: Threaded Button Bit

    R28 R32 Threaded Tungsten Carbide Rock Drill Button Bit With Spherical/Ballistic Buttons



    Describtion



    Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.



    R25 Button bits, normal skirt.
    Diameter T.C buttons Flushing hole Angle Weight
    mm inch Gauge x mm Front x mm Side Front Gauge Kg
    38 11/2 5x9 2x7 1 1 30° 0.53
    38 11/2 4x9 2x8 2 1 30° 0.56
    41 15/8 5x9 2x8 1 1 35° 0.63
    41 15/8 4x9 2x8 2 1 35° 0.64
    43 111/16 5x10 2x8 2 1 35° 0.68
    43 111/16 6x9 3x8 1 3 35° 0.68
    45 13/4 4x11 2x9 2 1 35° 0.82
    45 13/4 5x11 2x8 2 1 30° 0.80
    45 13/4 6x9 3x8 1 3 35° 0.84
    48 17/8 6x9 3x9 1 3 35° 0.85
    51 2 5x11 2x10 2 1 35° 1.05
    51 2 6x11 3x10 1 3 35° 1.11
    51 2 6x10 3x9 1 3 35° 1.14



    1) Thread Types: R25 R28 R32 T38 T45 T51...

    2) Alloy steel:45CrNiMo

    3) Suitable carbide tips YK05

    4) Diameter: 30-127mm

    5)Technology:hot-pressing or welding

    6) Suitable: drifting and tunneling, bench drilling



    Specification

    Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons



    Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons



    Tungsten Carbide Mining Drill Bits With R28 R32 Threaded Spherical and Ballistic Buttons



    KSQ Related Rock Drilling Tools


    (1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,

         Shank H19 x 108mm and H22 108mm.


    (2) Tapered Rock Drill Tools - chisel bit,  cross bit, button bit, drill rod of taper 7, 11, 12 degree


    (3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming     bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


    (4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.


    (5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)



    Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
