Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001

Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001

Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001
Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001
Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE Certified
Model Number: RL-1 Load Haul Dump Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 1 Month
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10+Unit+Month
Contact Now
Detailed Product Description
Color:: Orange/White/Yellow Application:: Underground Mining
Place Of Origin:: China Engine:: F6L912W
Power:: Chisel Engine
High Light:

underground lhd machines

,

lhd load haul dump

1 Cubic Meter LHD Loader with CE Certificate RL-1 Wheel Loader for Underground Project



Competitive Advantage:
1. Original DEUTZ engine. Model can be chosed • Underground Mining or Tunneling Project
2. Very competitive pricing • Hydropower Tunneling
3. Competitive delivery time. 20-30 days • Roadway/Railway Tunneling/Underground Project
4. CE, ISO9001 Certified • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




Operation Advantage:

The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.





Main Technical Configuration:



Brand: ROXMECH
Rated Bucket Capacity: 1 m3
Length: 6000 mm(Buket in haul position)
Width: 1300 mm
Height: 2000 mm
Wheelbase: 2200mm
Track: >200mm
Departure Angle: 15 degrees
Bucket Capacity (SAE, Heaped): 1.0 m3
Deadweight: 7000kg

Payload:

2000kg
Bucket type: Heavy Duty Rock Bucket
Maximum Dumping Height: 1050 mm
Dumping Angle: 43 degrees
Engine Modle: F6L912W
Engine Type: Air-Cooled Diesel Engine
Engine Max Power: 62KW
Motion Drive Type: PV22 (Pump)
Motion Drive Design: Closed loop Hydrostatic drive system
Axle Design: Differential Gear

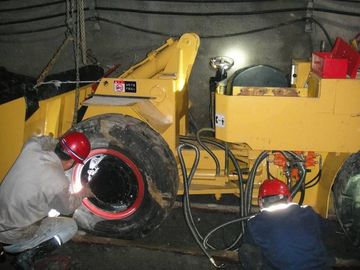

Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001 0

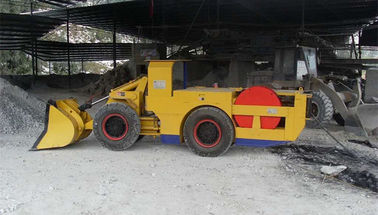

Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001 1

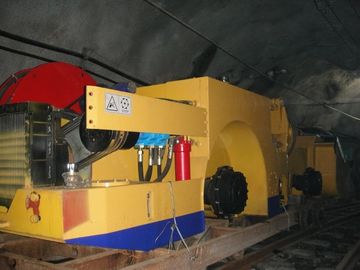

Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001 2

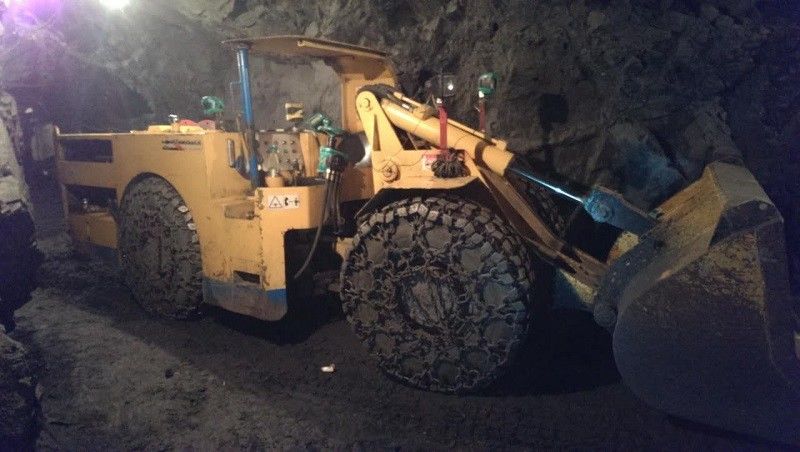

Chisel Engine Lhd Load Haul Dump For Underground Mining CE / ISO9001 3

Our Service:



Our delivery can be 20 to 30 days;

We can offer training for our customers inside of our factory;

If the order is more then 5 units machines, we can send engineer to working side;

Offering some free spare parts together with the machines;

Can offer spare parts within short time;

Can change the machines based on customers' requirement.



Special service

Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



Design service

Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



Training service

When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.



Packaging & Shipping



Load in Container for Scoop tramp.jpgLoad in Container for Load Haul Dump.jpg



Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|





Company Information



ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.



ROXMECH® Rock Excavation and Service/Support Equipment include:



Load Haul Dump Machines

RL-0.6 Load-Haul-Dump Machine
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine



Low Profile Dump Trucks
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck



Support Equipment
RS-3 Service Vehicle Series
MT30M Low Profile Transmixer



Processing Equipment
TT Series Vacuum Ceramic
Filtration System
