Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling

Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling

    • Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling
    • Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling
    • Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling
    • Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling
  • Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: SGS certified
    Model Number: DTH Bits

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: wooden box
    Delivery Time: 15-20days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Color:: Green/Yellow Application:: Water Well Drilling
    Shank:: Low Air Pressure, High Air Pressure Suitable Brands:: Atlas Copco/Sandvik Etc..
    Low Air Pressure Hole Diameter:: 65-220mm High Air Pressure Hole Diameter:: 85-305mm
    Face Type:: Flat Face, Concave Face, Convex Face



    DTH Hammer Bit Low air pressure, High air pressure



    Products features:



    1.high and low air pressure down-the-hole drill bits



    2.Low air pressure hole Dia.:65-220mm



    3.High air pressure hole Dia.:85-305mm



    4.Face type:drop center/concave/convex/double gauge/flat



    5.Our DTH Bit can be suitable for Original Atlas Copco /Sandivk big brands' DTH Hammers, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.



    Good Quality DTH Drill Bit



    Face design: Flat Face, Concave Face, Convex Face
    Tungsten Carbide: Ballistic Buttons, or Spherical Buttons
    Color: Green or Based on Customer requirements



    Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling Ballistic Concave Face
    Charracteristics:

    1. Straight hole application
    2. Fast penetraction
    3. Suited for soft to medium rock
    4. Non-abrasive drilling conditions
    Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling Ballistic Convex Face
    Charracteristics:

    1. Fast penetraction
    2. Suited for soft rock
    3. Non-abrasive drilling conditions
    Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling Spherical Concave Face
    Charracteristics:

    1. Straight hole application
    2. Good wear resistance
    3. Suited for medium to hard rock
    4. Abrasive drilling conditions
    Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling Spherical FlatFace
    Charracteristics:

    1. Good wear resistance
    3. Suited for hard rock
    4. Abrasive drilling conditions



    2.5" DTH BIT D=76mm   CWG76
    80mm
    3.5" DTH BIT D=90mm
    95mm   DHD3.5
    100mm
    105mm
    4" DTH BIT D=105mm
    108mm   DHD340A
    115mm   Mission40
    120mm   COP44
    125mm
    130mm
    D=105mm   TD40
    108mm
    115mm
    120mm
    125mm
    130mm
    5" DTH BIT D=133mm   DHD350R
    140mm   COP54
    148mm   QL50
    152mm   Mission50
    6" DTH BIT D=152mm
    155mm
    165mm
    171mm   Mission60
    178mm   QL60
    190mm
    203mm
    219mm
    254mm
    8" DTH BIT D=194mm
    200mm
    203mm
    216mm
    219mm   DHD380
    222mm   COP84
    235mm   QL80
    254mm   Mission80
    270mm
    305mm
    311mm
    325mm
    350mm



    DTH hammer bits/DTH биты молоток/DTH martilyo bits/DTH บิตค้อน/DTH martillo de bits

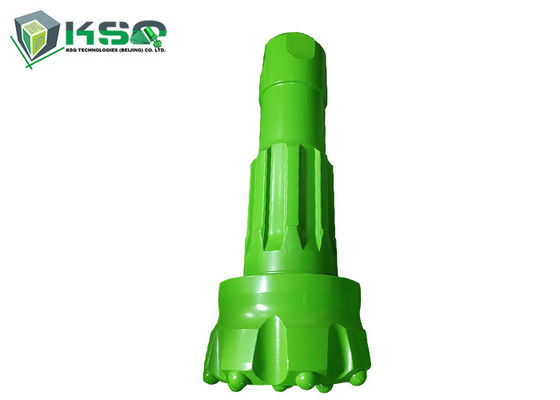

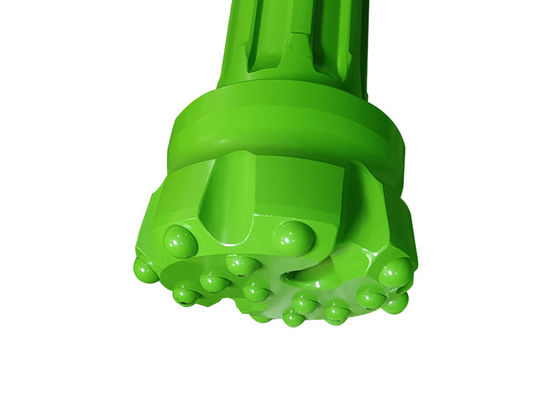

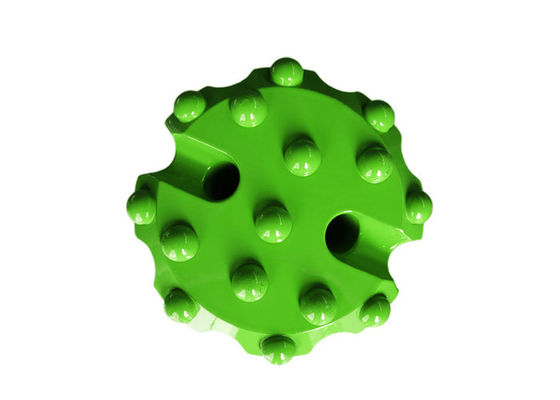

    Products Pictures:



     Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling Low air pressure DTH Drill Bits , High air pressure DTH Hammers for Water well drilling





    Producing Lines:



    Good Quality 152mm 155mm 159mm 165mm 172mm 178mm 190mm 203mm QL60 DHD360 SD6M60 Shank Down The Hole Hammer Drill Bits, DTH Bit
