Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project

Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project

    • Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project
    • Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project
    • Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project
  • Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE Certified
    Model Number: RL-4 Load Haul Dump Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 30-60 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining
    Place Of Origin:: China Engine:: BF6M1013FC 191KW/2300
    Power:: Chisel Engine

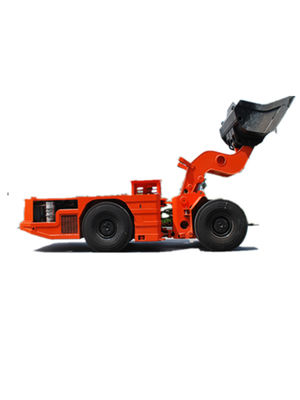

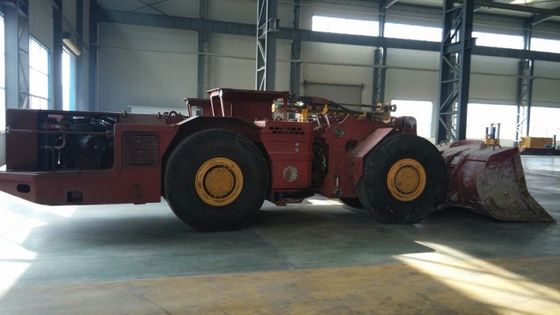

    Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project





    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed • Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days • Roadway/Railway Tunneling/Underground Project
    4. CE, ISO9001 Certified • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:

    The RL-3 Load-Haul-Dump Machine bucket capacity is 3 cubic meter, it is ideal for small size rock excavation operations.
    The RL-3 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.





    Main Technical Configuration:



    Brand: ROXMECH
    Rated Bucket Capacity: 4 m3
    Length:

    9718 mm(Bucket in haul position)

    Width: 2550 mm
    Height: 2390 mm
    Max.Disassembly Size:
    Length: 5112mm
    Width: 2400mm
    Height: 2390mm
    Min Turning radius:

    Inside:

    3370mm
    Outside: 6650mm
    Max.Driving Speed:
    1st Gear: 4.2km/h
    2nd Gear: 8.7km/h
    3rd Geara: 14.7km/h
    4th Gear: 24.5km/h
    Max. Discharge Height: > 1871
    Max.Discharge Angle: > 40 degrees
    Digging Depth: >500mm
    Max.Lifting Capacity: >10000
    Max.Climbing Capacity: 14 degrees
    Min.Ground Clearance: >394mm
    Max.Transverse Swing Angle: Left/Right 8 degrees
    Power shift transmission: R32420
    Engine: BF6M1013FC 191KW/2300, Deutz
    Converter: C5502-240, DANA
    Transmission: R36420-8 DANA
    Front/Rear Axles: 19D2748 DANA.
    Shaft: China
    Throttle Controller: TCY-0417 Mico USA
    Exhaust Gas Purifier: 12DZ ECS Canada







    Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project

    Mining Load Haul Dump Machine , 4 Wheel Lhd Loader For Underground Project



    Our Service:



    Our delivery can be 55 to 60 days;

    We can offer training for our customers inside of our factory;

    If the order is more then 5 units machines, we can send engineer to working side;

    Offering some free spare parts together with the machines;

    Can offer spare parts within short time;

    Can change the machines based on customers' requirement.



    Special service

    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



    Design service

    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



    Training service

    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.



    Packaging & Shipping



    Load in Container for Scoop tramp.jpgLoad in Container for Load Haul Dump.jpg



    Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|
