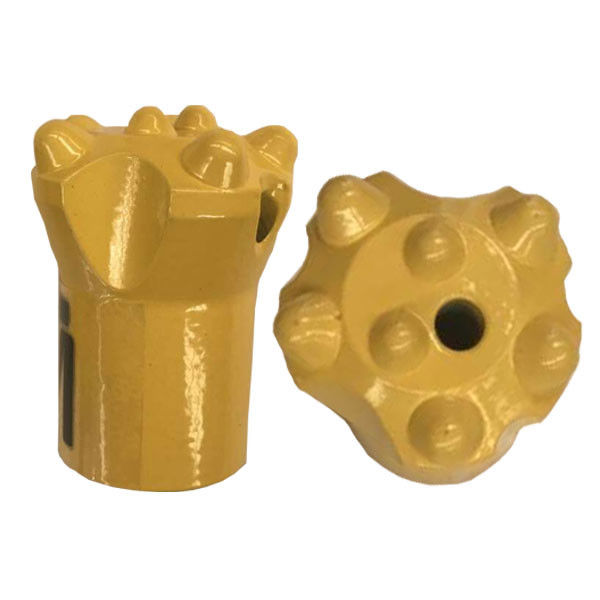

Taper Knock off 7 Button Drill Bit , 11 Taper Degree Dth Hammer Bit 32mm 36mm 38mm

Taper Knock off 7 Button Drill Bit , 11 Taper Degree Dth Hammer Bit 32mm 36mm 38mm

Taper Knock off 7 Button Drill Bit , 11 Taper Degree Dth Hammer Bit 32mm 36mm 38mm
Taper Knock off 7 Button Drill Bit , 11 Taper Degree Dth Hammer Bit 32mm 36mm 38mm
Taper Knock off 7 Button Drill Bit , 11 Taper Degree Dth Hammer Bit 32mm 36mm 38mm
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: ISO9001
Model Number: Knock off Drill Bits
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Type: Knock Off Drill Bits Material: Tungsten Carbide
Color: Yellow Processing Type: Forging
Taper Shank: 7 Degree,11 Degree,12 Degree Use: Tunneling, Mining,Quarrying,Construction
High Light:

hardened steel drill bits

,

milling drill bits


Taper Knock off 7 Button Drill Bit , 11 Taper Degree Dth Hammer Bit 32mm 36mm 38mm

Feature of Taper Button Bit
1. tapered button bits connect with tapered drill rod for drilling holes
2. Stale and mature welding technology ensure good quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. work reliable and very cost-effective
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

Tapered drilling tools Types

Diameter          (mm)

Taper Angle (Degree)

Skirt

Weight (kg)

Tapered chisel bits

20-60mm

4°,6°,7°,11°,12°

Normal, Length

0.15 - 0.45

Tapered cross bits

32-60mm

Normal, Length

0.18 - 0.7

Tapered button bits

30-55mm

Normal, Length

0.2 - 0.5

Taper Knock off 7 Button Drill Bit , 11 Taper Degree Dth Hammer Bit 32mm 36mm 38mm 0

Button bit and Insert types
Spherical Button Characteristics:
1.Universal button
2.Good wear resistance
3.Best suited for hard ground
4.27000-48000PSI(180 to 320Mpa)
5.Suited for abrasive to very abrasive drilling conditions

Ballistic Button Characteristics:
1.Fast Penetration
2.Best suited for soft rock
3.10000-20000PSI(70 to 140Mpa)
4.Suited for non-abrasive drilling conditions


Applications of  rock drilling tools
• Underground mining
• Tunneling,quarrying


Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
