15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck

15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck

    • 15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck
    • 15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck
    • 15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck
  • 15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE
    Model Number: RT-15 Low Profile Dump Truck

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining And Project
    Place Of Origin:: China Engine:: BF6L914W/F8L413FW
    Power:: Chisel Engine

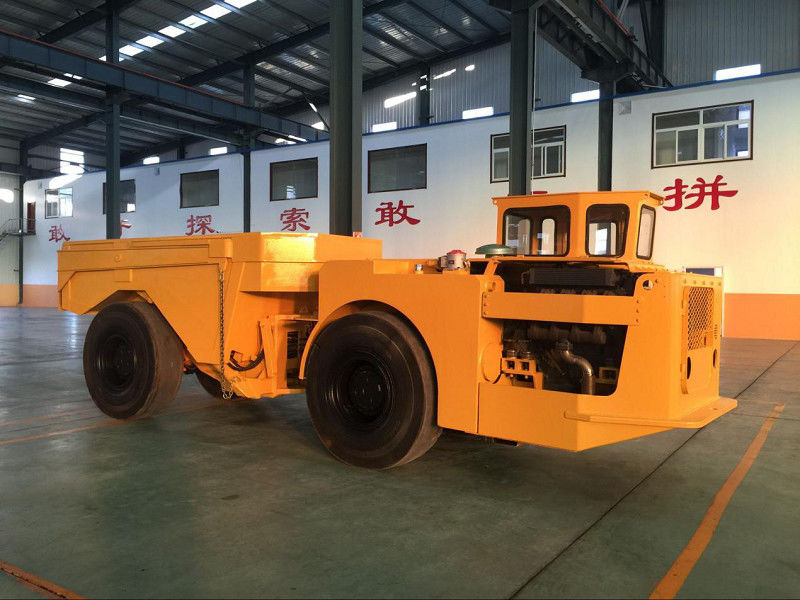

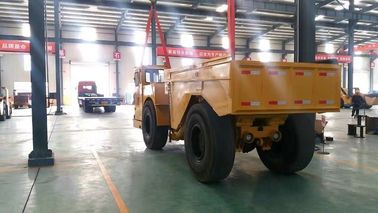

    15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck



    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed • Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days • Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:


    The RT-15 Low Profile Dump Truck is ideal for medium scale rock excavation operations that require high haulage productivity. Works perfectly with the RL-3 LHD Machine. The RT-15 mantains the simple yet very robust design tenets of what a mining equipment should be -It has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.









    Main Technical Configuration:



    Brand: ROXMECH
    Length: 7600 mm
    Width: 2100 mm
    Height: 2480 mm
    Deadweight: 15000kg
    Dump Box Capacity: 6.0m3
    Lifting Time: 11s
    Unloading Angle: > 68 degrees
    Wheelbase:  Around 3560 mm
    Steering Angle: 40 degrees
    Min.Turning Radius:
    Inside: 3706 mm

    Outside:

    6568 mm
    Min Ground Clearance: > 290mm
    Operational quality 16000kg
    Front Axle Load (No-Load): 9500kg
    Rear Alxe Load (No-Load): 6500kg
    Load Quality: 28000kg
    Transmission: R32000
    Speed:
    1st Gear: 0-5km/h
    2nd Gear: 0-10.03km/h
    3rd Gear: 0-17.09/km/h
    4th Gear: 0-23.7km/h
    Climbing Capacity: 25%
    Max.Drawbar Pull: 180KN



    15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck

    15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck

    15 Ton Dump Truck Trailer With Wheels , Orange Mining Dump Truck



    Our Service:



    Our delivery can be 30 to 40 days;

    We can offer training for our customers inside of our factory;

    If the order is more then 5 units machines, we can send engineer to working side;

    Offering some free spare parts together with the machines;

    Can offer spare parts within short time;

    Can change the machines based on customers' requirement.



    Special service

    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



    Design service

    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



    Training service

    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.

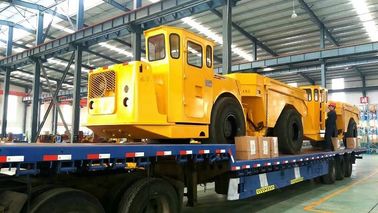

    Packaging & Shipping
