3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod

3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod

    • 3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod
    • 3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod
    • 3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod
    • 3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod
  • 3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: ISO
    Model Number: T38 Male Male Thread Drill Rod

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: USD100.00 - USD260.00
    Packaging Details: Iron Packing
    Delivery Time: 30-35days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Material:: Steel Thread Protector Color:: Red/Blue
    Thread:: T38, T45,T51 Length:: 915mm, 1220mm, 1525mm,1830mm, 3050mm, 3660mm, 4270mm

    3050mm 3660mm Length T38 Male Male Thread Extension Drill Rod





    Description



    Drill rod using T38 thread system. In good rock conditions it will produce straighter holes and at least 10% higher penetration rate compared to rod and coupling sleeve combination system.

    • R28 thread system
    • Suitable for small hole range


    Color: Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: T38 Speed Rod T38-Round 39-T38 Flushing Hole 14.5 mm



    Applications


    • Underground Mining
    • Tunneling





    Product Code System



    Threaded Drill Rods:
    DR22-H25-305-(1) (2)
    DR = Threaded Drill Rod, Round Type
    DRH = Threaded Drill Rod, Hex Type
    ERH = Threaded Extension Rod, Hex Type
    MF = Threaded Speed Rod, Round Type
    ---
    22 = Drill Rod Diameter in mm
    ---
    H25 = Thread System
    ---



    T38 Extension Rod
    T38-Round39-T38, flushing hoe 14.5mm, wrench flat 32mm
    Length  Diameter  Weight Part Number Product Code
    mm ft mm inch kg
    915 3 39 1 1/2 10.7 4148300781 MF39-T38-915
    1220 4 39 1 1/2 13.3 4148300782 MF39-T38-1220
    1525 5 39 1 1/2 15.8 4148300783 MF39-T38-1525
    1830 6 39 1 1/2 18.3 4148300784 MF39-T38-1830
    3050 10 39 1 1/2 28.5 4148300785 MF39-T38-3050
    3660 12 39 1 1/2 33.6 4148300786 MF39-T38-3660
    4270 14 39 1 1/2 38.7 4148300787 MF39-T38-4270
    4880 16 39 1 1/2 43.7 4148300788 MF39-T38-4880
    5530 18 1/7 39 1 1/2 49.2 4148300789 MF39-T38-5530
    6095 20 39 1 1/2 53.9 4148300790 MF39-T38-6095





    Products Pictures:

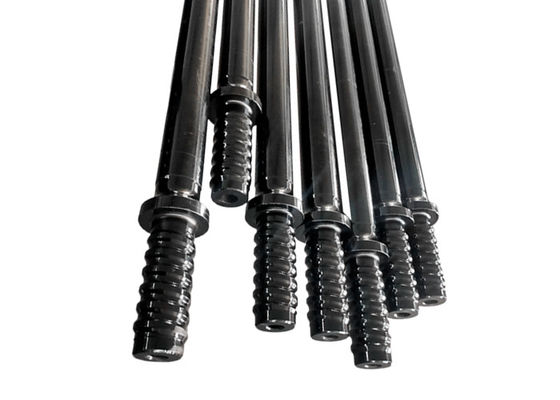

    3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod

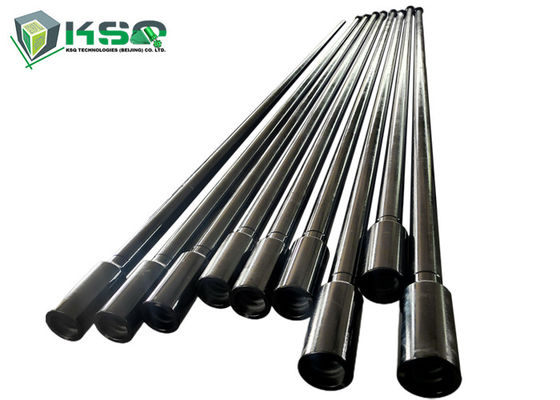

    3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod

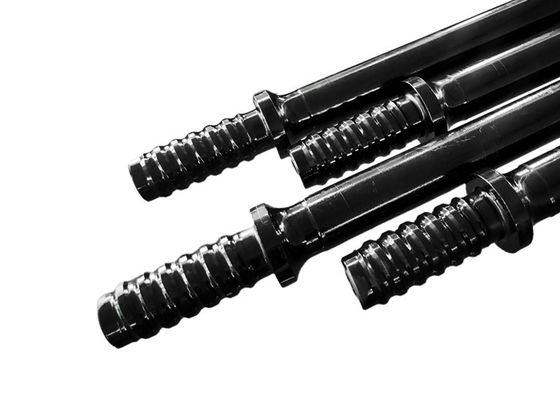

    3050mm 3660mm Length Rock Drilling Tools Fully Carburized Extension Drill Rod
