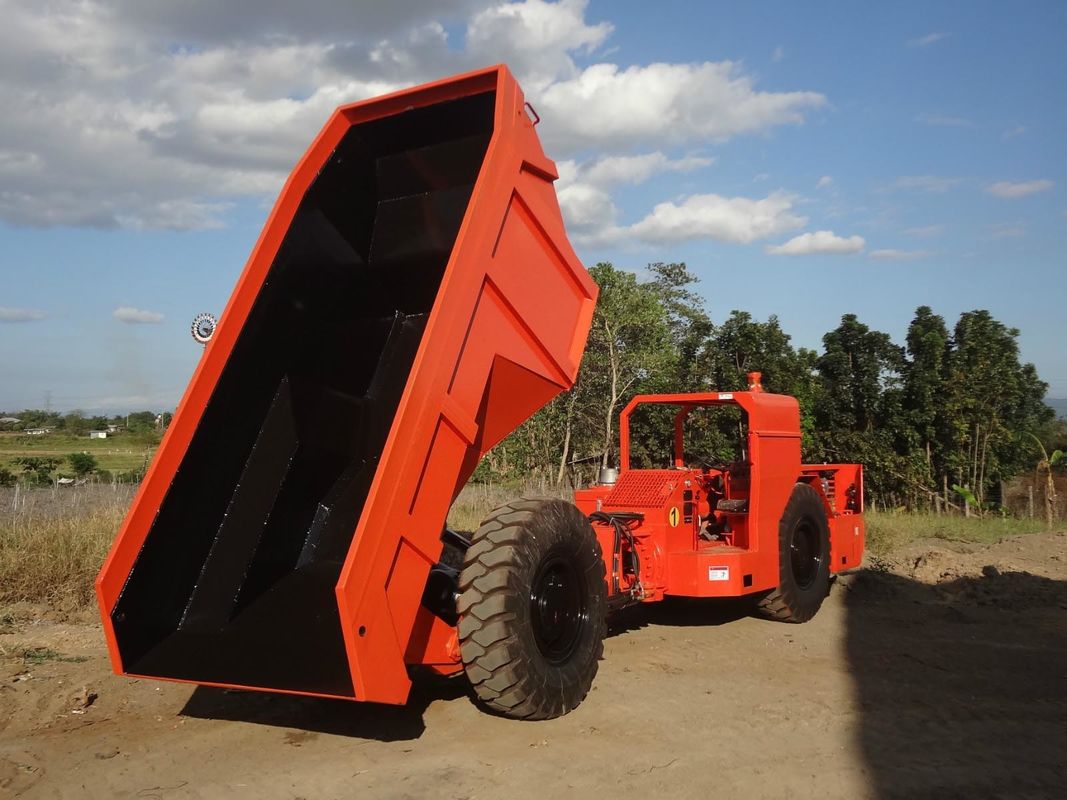

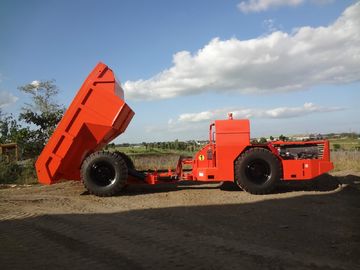

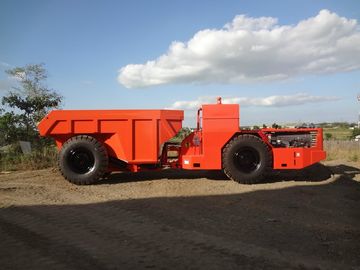

Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment

Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment

    • Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment
    • Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment
    • Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment
  • Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: ISO9001 certified
    Model Number: RT-12 Low Profile Truck

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 55 to 60 fays
    Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
    Supply Ability: 10 units per month
    Contact Now
    Detailed Product Description
    Color:: Yellow, Orange, Or As Customer Needs Model:: RT-12 Low Profile Truck
    Bucket Capacity:: 12 Tons / 6m³ Engine:: Deutz BF6L914(112 KW), Or Cummins QSB4.5-C170(127kW)
    Torque Converter:: DANA C270 Series Transmission:: DANA R32000 Series
    Axle:: QY150



    Competitive Advantage:
    1. Original DEUTZ engine and CUMMINS engine Model can be chosed • Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling

    3. Competitive delivery time.

     55-60 days

    • Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified





    Operation Advantage:



    The RT-12 Low Profile Dump Truck is ideal for medium scale rock excavation operations that require high haulage productivity. Works perfecly with the RL-2 LHD Machine.

    The RT-12 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.





    Main Configurations:



    Engine:

    Deutz BF6L914(112 kW),



    or Cummins QSB4.5-C170(127kW)



    or customer choosed

    Torque converter: DANA C270 series
    Transmission: DANA R32000 series
    Axle: QY150
    Tire: 14.00-24







    Main technical data:

    Main Dimensions



    Length

    7956 mm
    Width 1804 mm
    Height 2150 mm
    Ground clearance 294 mm
    Dump box capacity 6.0 m3
    Maximum dump angle 70 °
    Weights

    Deadweight

    15,000 kg
    Payload 12,000 kg
    Fully loaded 27,000 kg

    Maximum tramming speed

    Laden forward/reverse, on a level roadway



    1st Gear

     3.4 km/h
    2nd Gear  7.1 km/h
    3rd Gear  11.6 km/h
    4th Gear  26.3 km/h

    Gradeability

     Minimum speed of 3 km/h at 25% (based on good road conditions)
    Turning radius

      Insde:4945±100

     Outside:7930±100













    Further information you might interested to know:



    1. What is your delivery time?

        - Our delivery can be 55 to 60 days;



    2.  What service we can get from you?

         - We can offer training for our customers inside of our factory on operation and maintenance; If the order is more than 5 units machines, we can send our engineer directly to working side for traininig;

         - Offering some free spare parts together with the machines;

         - Can offer spare parts of recommended list to be stocked in users' local market for 1 year, or 2 years, and supply those parts within short time;



    3. Do you have warranty for the machines?

        - Yes, the warranty period is 2000 working hours or 360 days after commissioning, whichever occurs first.



    4. Can you change the machines based on our requirements?

        - Yes, once you send us your requirements ( engine model, torque converter model, transmission model etc....), we can change the machines based on customers' requirement.



    Special service

    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



    Design service

    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



    Training service

    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with operation and maintenance courses.In addition, OEM is also available.





    Packaging & Shipping













    Other product you may Interest:



    2 m³ load haul dump machine 0.6 m³ load haul dump machine
    Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment

    Orange 12 Tons Underground Mining Truck , Gold Mining Drilling Equipment
