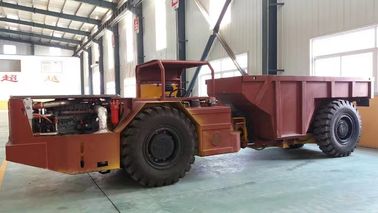

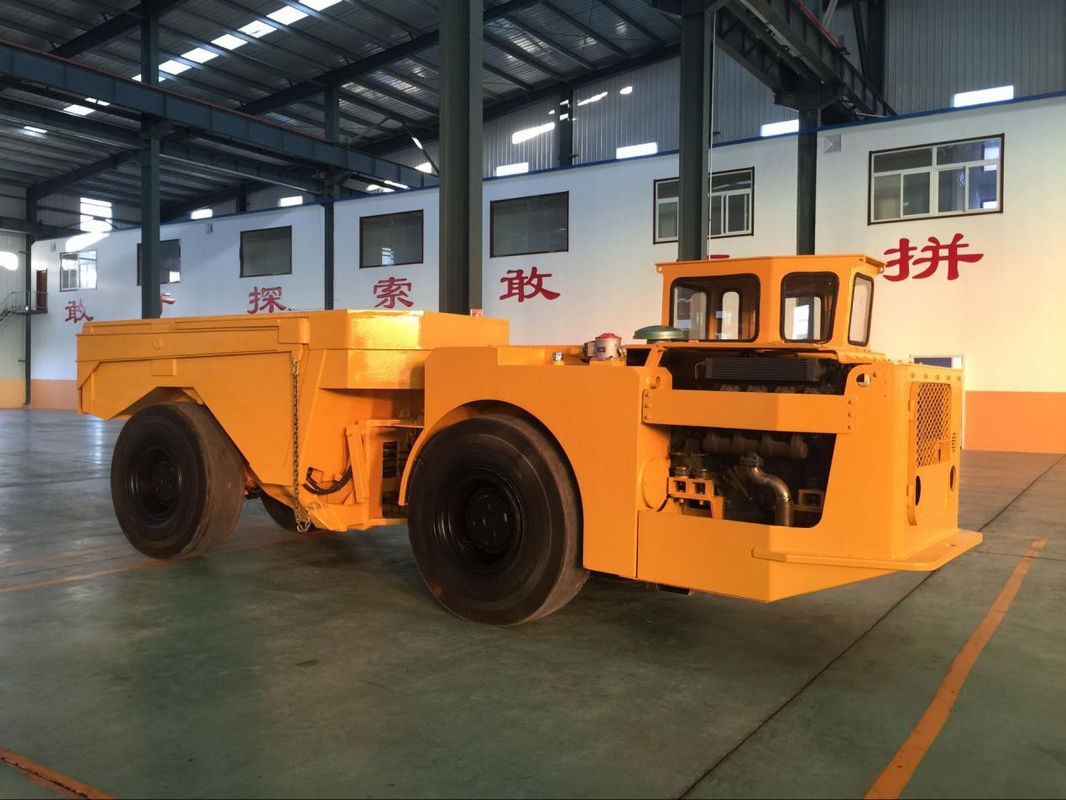

Easy Operation Low Profile Dump Truck 15 Tons For Underground Mining Project

Easy Operation Low Profile Dump Truck 15 Tons For Underground Mining Project

    • Easy Operation Low Profile Dump Truck 15 Tons For Underground Mining Project
    • Easy Operation Low Profile Dump Truck 15 Tons For Underground Mining Project
  • Easy Operation Low Profile Dump Truck 15 Tons For Underground Mining Project

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: ISO9001 certified
    Model Number: RT-15 Low Profile Truck

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 55 to 60 fays
    Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
    Supply Ability: 10 units per month
    Contact Now
    Detailed Product Description
    Color:: Yellow, Orange, Or As Customer Needs Model:: RT-15 Low Profile Truck
    Bucket Capacity:: 15 Tons / 7m³ Engine:: DEUZ BF6M1013EC(135 KW), Or DEUZ F8L413FW(136kW)
    Torque Converter:: DANA C270 Series Transmission:: DANA R32000 Series
    Axle:: QY150,or DANA 16D
    High Light:

    Underground Dump Truck


    mining dump trucks


    Competitive Advantage:
    1. Original DEUTZ engine and CUMMINS engine Model can be chosed • Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling

    3. Competitive delivery time.

     55-60 days

    • Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified






    Main Configurations:



    DEUZ BF6M1013EC(135 kW),


    or DEUZ F8L413FW(136kW)


    or customer choosed

    Torque converter: DANA C270 series
    Transmission: DANA R32000 series
    Axle: QY150,or DANA 16D
    Tire: 14.00-24




    Main technical data:

    Main Dimensions



    Width 2100±50mm


    Ground clearance ≥290mm
    Dump box capacity 7.0 m3
    Maximum dump angle 68 °


    16,000 kg
    Payload 12,000 kg
    Fully loaded 28,000 kg

    Maximum tramming speed

    Laden forward/reverse, on a level roadway


    1st Gear

     5 km/h
    2nd Gear  10.03 km/h
    3rd Gear  17.09 km/h
    4th Gear  23.7 km/h


     Minimum speed of 5 km/h at 25% (based on good road conditions)
    Turning radius







    Easy Operation Low Profile Dump Truck 15 Tons For Underground Mining Project 0


    Further information you might interested to know:


    1. What is your delivery time?

        - Our delivery can be 55 to 60 days;


    2.  What service we can get from you?

         - We can offer training for our customers inside of our factory on operation and maintenance; If the order is more than 5 units machines, we can send our engineer directly to working side for traininig;

         - Offering some free spare parts together with the machines;

         - Can offer spare parts of recommended list to be stocked in users' local market for 1 year, or 2 years, and supply those parts within short time;


    3. Do you have warranty for the machines?

        - Yes, the warranty period is 2000 working hours or 360 days after commissioning, whichever occurs first.


    4. Can you change the machines based on our requirements?

        - Yes, once you send us your requirements ( engine model, torque converter model, transmission model etc....), we can change the machines based on customers' requirement.


    Special service

    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.


    Design service

    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.


    Training service

    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with operation and maintenance courses.In addition, OEM is also available.






    Company Information


    ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
    equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
    Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
    Service Vehicles, and Personnel Carriers.


    ROXMECH® Rock Excavation and Service/Support Equipment include:


    Load Haul Dump Machines

    RL-0.6 Load-Haul-Dump Machine
    RL-1 Load-Haul-Dump Machine
    RL-2 Load-Haul-Dump Machine
    RL-3 Load-Haul Dump Machine
    RL-4 Load-Haul Dump Machine


    Low Profile Dump Trucks
    RT-12 Low Profile Dump Truck
    RT-15 Low Profile Dump Truck
    RT-20 Low Profile Dump Truck
    MT30D Low Profile Dump Truck


    Support Equipment
    RS-3 Service Vehicle Series
    MT30M Low Profile Transmixer


    Processing Equipment
    TT Series Vacuum Ceramic
    Filtration System
