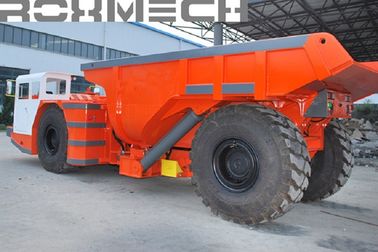

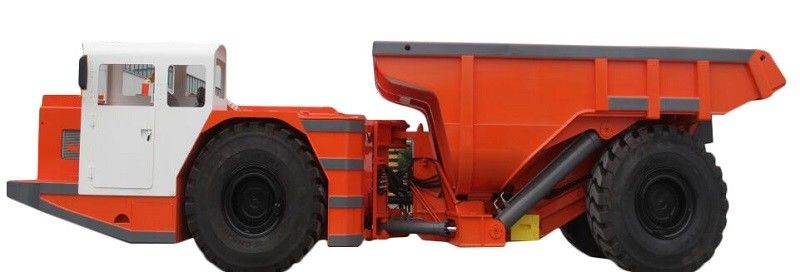

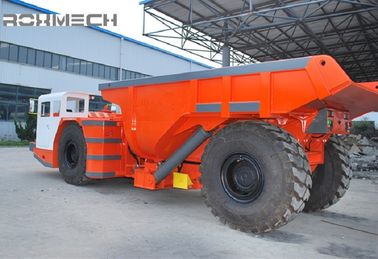

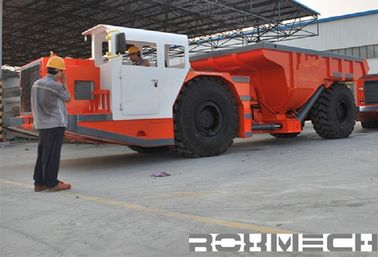

Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks

Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks

    • Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks
    • Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks
    • Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks
    • Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks
  • Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE
    Model Number: RT-30 Low Profile Dump Truck

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining And Project
    Place Of Origin:: China Engine:: OM460LA
    Power:: Whater Cooled, Turbo Charged


    Heavey truck 30 tons undergournd mining truck,Mining equipment RT-30,for underground tunneling or project


    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed• Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days• Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:


    The RT-30 Low Profile Dump Truck is ideal for medium scale rock excavation operations that require high haulage productivity. Works perfectly with the RL-4 LHD Machine. The RT-30 mantains the simple yet very robust design tenets of what a mining equipment should be -It has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.




    Main Technical Configuration:


    Brand:ROXMECH
    Length:10135 mm
    Width:2800 mm
    Height:2580 mm
    Deadweight:30000kg
    Bucket Capacity:15 cubic meter
    Max.Lifting Height:5715mm
    Unloading Angle:> 65 degrees
    Wheelbase: Around 5245 mm
    Leaving Angle15 degrees
    Rear Axle Oscillation Angle:15 degrees
    Min. Off-Ground Clearance:357mm

    Max.Grade Ability:

    25%
    Max.Steering Angle: Around 42 degrees
    Outer Size / Inner Size:8851mm / 5114mm
    Rated Loading Capacity:30000kg
    Front Axle Weights Without Load:19700kg
    Rear Axle Weights Without Load:10300kg
    Front Axle Weights With Load:28780kg
    Rear Axle Weights With Load31220kg
    1st Gear:0-5.1km/h
    2nd Gear:0-9.2km/h
    3rd Gear:0-15.2/km/h
    4th Gear:0-27.2km/h
    Bucket Rasing Time:14s
    Lowering Time:10s






    Heavy Duty 30 Tons Low Profile Dump Truck Underground Mining Dump Trucks






    Special service
    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.

    Design service
    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.

    Training service
    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
