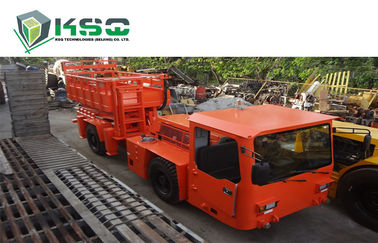

Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project

Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project

    • Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project
    • Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project
    • Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project
    • Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project
    • Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project
  • Underground Service Vechicles 1 Ton Scissor Lift Truck for Underground Mining or Tunneling Project

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE
    Model Number: RS-3SL 1 Ton

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining And Project
    Place Of Origin:: China Engine:: F6L912W 65Kw
    Power:: Whater Cooled, Turbo Charged


    Underground Service Vechicles RS-3SL 1 Ton Scissors Lift Truck for Underground Mining or Tunneling Project


    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed• Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days• Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:


    The RS-3 Service Vehicle Series is a versatile chassis platform that can be configured for many support tasks for underground mining and tunneling. It can configured as scissors lift truck, fuel and lube truck, crew transporter, anfo charger truck, tire transporter and changer truck, etc




    Main Technical Configuration:


    Brand:ROXMECH
    Length:6800 mm
    Width:1800 mm
    Height:2200 mm
    Deadweight:8000kg
    Max.Drawbar Pull:>80kn
    Min. Ground Clearance:>230mm
    Climbing Capacity:25%
    Steering Angle: 40 degrees of each side
    Lateral Swing Angle7-10 degrees of each side
    Wheelbase:1520mm
    Distance Between Shafts:3410mm

    Turning Radius:

    <4000mm Inside
    Turning Radius: <6000mm Outside
    Outer Size / Inner Size:8851mm / 5114mm
    Driving Speed:1st Gear 4.5km/h
    Driving Speed:2nd Gear 10km/h
    Driving Speed:3rd Gear 22km/h
    Rated Loading:1000kg
    Max. Lifting Distance:4500mm
    Size of the Platform:2540x 1680x 1200mm
    Engine:F6L912W, 65Kw
    Transmission & Converter:1201FT20321, Dana, USA
    Axles:F/R 112, Dana, USA
    Tires:10.00-20
    Exhaust Purifier:6DZ ECS, Canada





    Special service
    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.

    Design service
    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.

    Training service
    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
