    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE Certified
    Model Number: RL-1 Load Haul Dump Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange/White/Yellow Application:: Underground Mining
    Place Of Origin:: China Power:: Electric LHD Loader

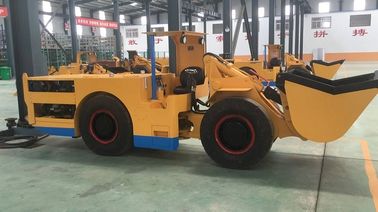

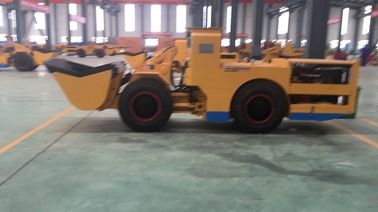

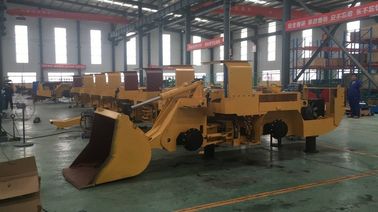

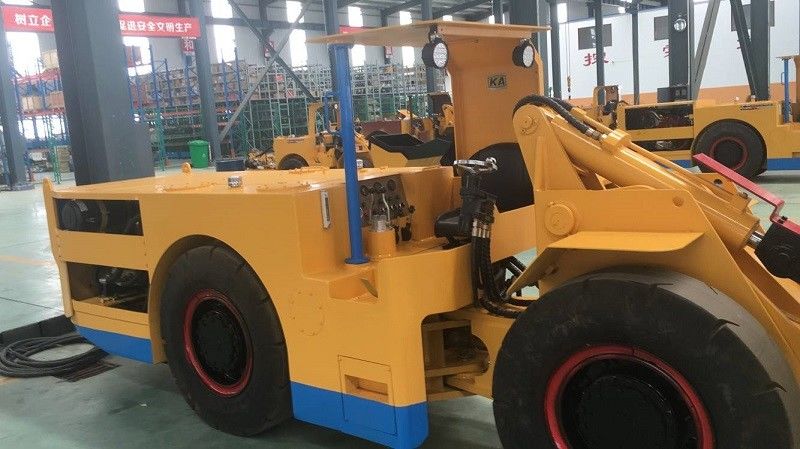

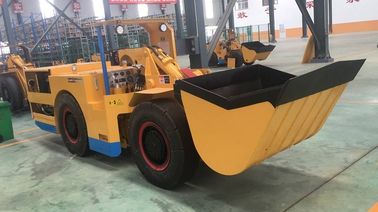

    1 Cubic Meter Electric LHD Load Haul Dump Machine For Underground Mining with Cable CE / ISO9001



    Competitive Advantage:
    1. Electric version • Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days • Roadway/Railway Tunneling/Underground Project
    4. CE, ISO9001 Certified • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:

    The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
    The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.





    Main Technical Configuration:



    Brand: ROXMECH
    Rated Bucket Capacity: 1 m3
    Length: 6000 mm(Buket in haul position)
    Width: 1300 mm
    Height: 2000 mm
    Wheelbase: 2200mm
    Track: >200mm
    Departure Angle: 15 degrees
    Bucket Capacity (SAE, Heaped): 1.0 m3
    Deadweight: 7000kg

    Payload:

    2000kg
    Bucket type: Heavy Duty Rock Bucket
    Maximum Dumping Height: 1050 mm
    Dumping Angle: 43 degrees
    Power Version: Electric power
    Motion Drive Type: PV22 (Pump)
    Motion Drive Design: Closed loop Hydrostatic drive system
    Axle Design: Differential Gear



    1 Cubic Meter  Electric LHD Load Haul Dump Machine For Underground Mining with Cable CE / ISO9001

    1 Cubic Meter  Electric LHD Load Haul Dump Machine For Underground Mining with Cable CE / ISO9001

    1 Cubic Meter  Electric LHD Load Haul Dump Machine For Underground Mining with Cable CE / ISO9001

    1 Cubic Meter  Electric LHD Load Haul Dump Machine For Underground Mining with Cable CE / ISO9001

    Our Service:



    Our delivery can be 20 to 30 days;

    We can offer training for our customers inside of our factory;

    If the order is more then 5 units machines, we can send engineer to working side;

    Offering some free spare parts together with the machines;

    Can offer spare parts within short time;

    Can change the machines based on customers' requirement.



    Special service

    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



    Design service

    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



    Training service

    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.



    Packaging & Shipping
