Orange / White / Yellow RS-3CT Crew Transporter ( 16 Seats ) Underground Dump Truck

Orange / White / Yellow RS-3CT Crew Transporter ( 16 Seats ) Underground Dump Truck

    • Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    • Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    • Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    • Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    • Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
  • Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: CE
    Model Number: RS-3CT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 1 Month
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10+Unit+Month
    Contact Now
    Detailed Product Description
    Color:: Orange / White / Yellow Application:: Underground Mining And Project
    Place Of Origin:: China Engine:: F6L912W 65Kw
    Power:: Whater Cooled, Turbo Charged

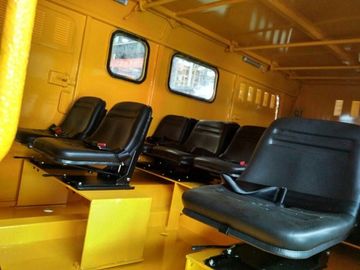

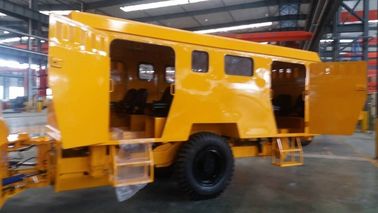

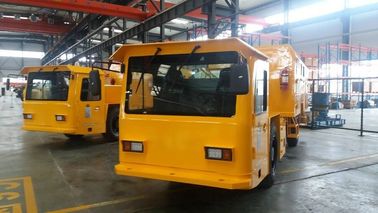

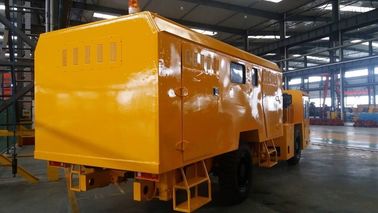

    Underground Service Vechicles RS-3CT Crew Transporter (16 seats) for Underground Mining or Tunneling Project


    Competitive Advantage:
    1. Original DEUTZ engine. Model can be chosed• Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling
    3. Competitive delivery time. 20-30 days• Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




    Operation Advantage:


    The RS-3 Service Vechicle Series is a versatile chassis platform that can be configured for many support for undergroung mining and tunneling. It can configured as: scissors lift for truck, fuel and lube truck, crew transporter, ANFO charger truck, tire transporter and changer truck, etc.




    Main Technical Configuration:


    Brand:ROXMECH
    Length:7200 mm
    Width:1800 mm
    Height:2200 mm
    Deadweight:8500kg
    Wheelbase:3620mm
    Distance Between Shafts:1510mm
    Min Ground Clear:>230
    Climbing Ability: >12 degrees
    Lateral Swing Angle:7-10 degrees of each side
    Max.Streering Angle:40 degrees
    Maximum Drawbar Pull:>80KN

    Turning Radius:

    <4100mm Inside
    Turning Radius: <6300mm Outside
    Rated Seats:16
    Driving Speed:1st Gear 4.5km/h
    Driving Speed:2nd Gear 10km/h
    Driving Speed:3rd Gear 22km/h
    Engine:F6L912W, 65Kw, Deutz
    Gear Pump:2PB16/11.5, Salami Italy
    Charging Valve:06-463-230, Mico,USA
    Foot Valve:06-466-210, Mico, USA
    Transmission & Converter:1201FT20321, Dana, USA
    Axles:F/R 112, Dana, USA
    Tires:10.00-20
    Exhaust Purifier:6DZ ECS, Canada


     Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    Orange / White / Yellow RS-3CT  Crew Transporter ( 16 Seats ) Underground Dump Truck
    Special service
    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.

    Design service
    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.

    Training service
    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
