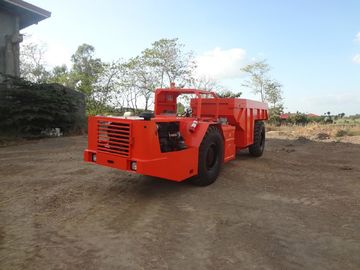

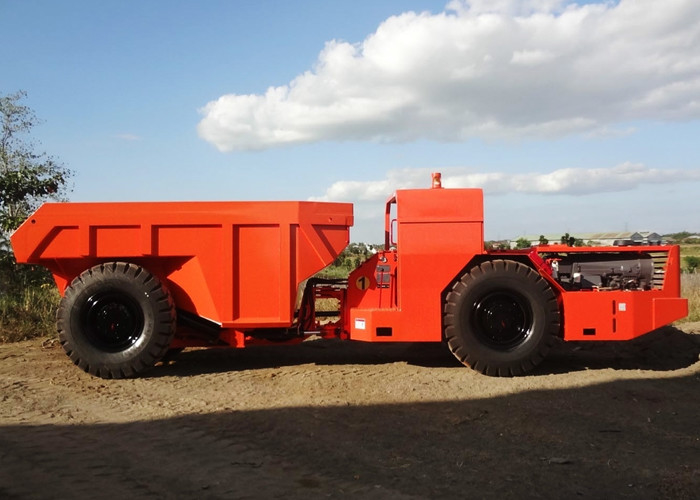

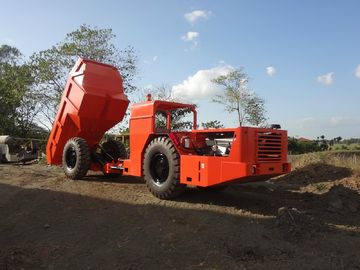

7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck

7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck

    • 7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck
    • 7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck
    • 7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck
  • 7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck

    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Certification: ISO9001 certified
    Model Number: RT-15 Low Profile Truck

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Packaging Details: Suitable for Long Transportation
    Delivery Time: 55 to 60 fays
    Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
    Supply Ability: 10 units per month
    Contact Now
    Detailed Product Description
    Color:: Yellow, Orange, Or As Customer Needs Model:: RT-15 Low Profile Truck
    Bucket Capacity:: 15 Tons / 7m³ Engine:: DEUZ BF6M1013EC(135 KW), Or DEUZ F8L413FW(136kW)
    Torque Converter:: DANA C270 Series Transmission:: DANA R32000 Series
    Axle:: DANA 16D Truning Radius: Inside: 3706±150mm, Outside:6568±150mm
    Gradeability: 25% (at Minimum Speed Of 5 Km/h Based On Good Road Conditions) Dimension: 7600x2100x2480mm (LengthxWidthxHeight)

    7cbm or 15 Tons Bucket Capacity Underground Mining Dump Trucks



    Competitive Advantage:
    1. Original DEUTZ engine and CUMMINS engine Model can be chosed • Underground Mining or Tunneling Project
    2. Very competitive pricing • Hydropower Tunneling

    3. Competitive delivery time.

     55-60 days

    • Roadway/Railway Tunneling/Underground Project
    4. ISO9001 Certified











    Main Configurations:



    Engine:

    DEUZ BF6M1013EC(135 kW),



    or DEUZ F8L413FW(136kW)



    or customer choosed

    Torque converter: DANA C270 series
    Transmission: DANA R32000 series
    Axle: QY150(China),or DANA 16D
    Tire: 14.00-24







    Main technical data:



    Main Dimensions



    Bucket lifting time:

    11s
    Bucket unloading angle: 68 degree
    Steering angle:

    ±40 degree

    Ground clearance ≥290mm
    Dump box capacity 7.0 m3
    Maximum dump angle 68 °
    Weights

    Deadweight

    16,000 kg
    Payload 12,000 kg
    Fully loaded 28,000 kg

    Maximum tramming speed

    Laden forward/reverse, on a level roadway



    1st Gear

     5 km/h
    2nd Gear  10.03 km/h
    3rd Gear  17.09 km/h
    4th Gear  23.7 km/h

    Gradeability

     Minimum speed of 5 km/h at 25% (based on good road conditions)
    Turning radius

      Insde:3706±150mm

     Outside:6568±150mm





    7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck







    7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck



    Further information you might interested to know:



    1. What is your delivery time?

        - Our delivery can be 55 to 60 days;



    2.  What service we can get from you?

         - We can offer training for our customers inside of our factory on operation and maintenance; If the order is more than 5 units machines, we can send our engineer directly to working side for traininig;

         - Offering some free spare parts together with the machines;

         - Can offer spare parts of recommended list to be stocked in users' local market for 1 year, or 2 years, and supply those parts within short time;



    3. Do you have warranty for the machines?

        - Yes, the warranty period is 2000 working hours or 360 days after commissioning, whichever occurs first.



    4. Can you change the machines based on our requirements?

        - Yes, once you send us your requirements ( engine model, torque converter model, transmission model etc....), we can change the machines based on customers' requirement.



    Special service



    Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



    Design service



    Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



    Training service



    When it comes to training service, we offer technical manual to our customers, and we will provide group customers with operation and maintenance courses.In addition, OEM is also available.
