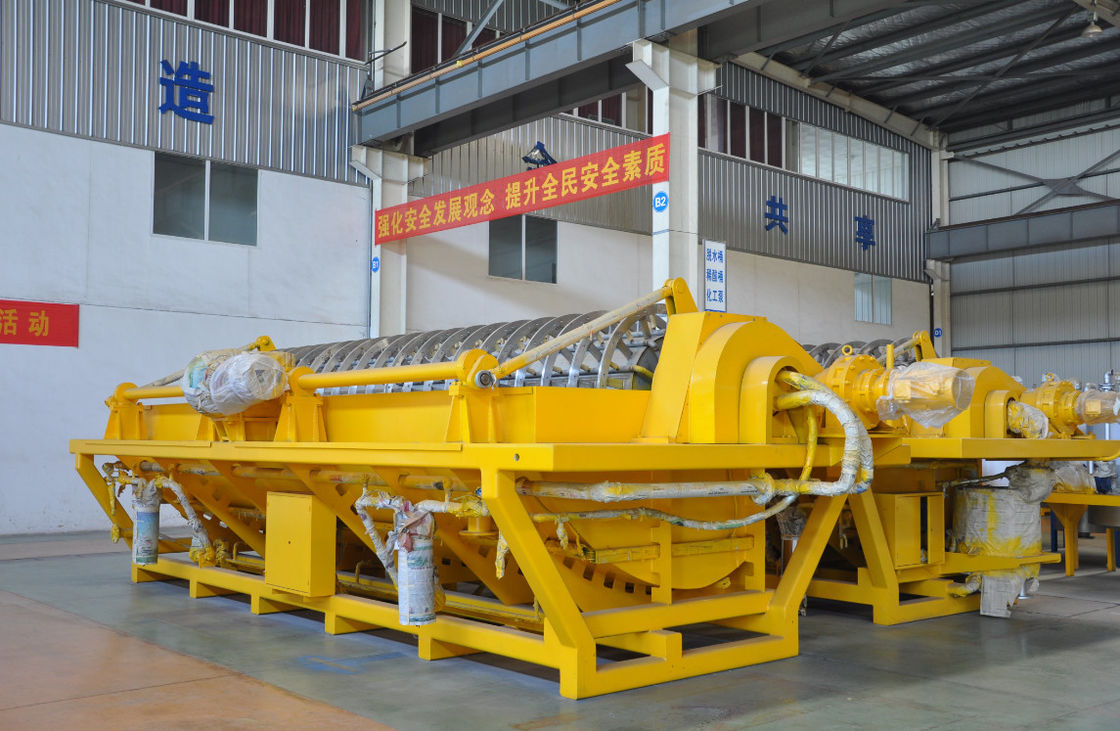

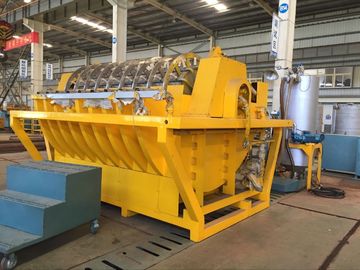

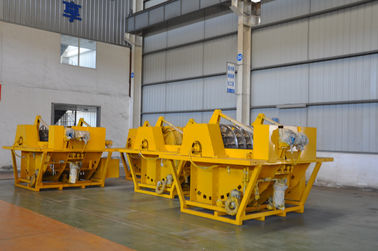

2m³ To 9m³ Small Capacity Automatic Liquid Discharging Disc-Vacuum Filters

2m³ To 9m³ Small Capacity Automatic Liquid Discharging Disc-Vacuum Filters

    • 2m³ To 9m³ Small Capacity Automatic Liquid Discharging Disc-Vacuum Filters
    • 2m³ To 9m³ Small Capacity Automatic Liquid Discharging Disc-Vacuum Filters
    • 2m³ To 9m³ Small Capacity Automatic Liquid Discharging Disc-Vacuum Filters
  • 2m³ To 9m³ Small Capacity Automatic Liquid Discharging Disc-Vacuum Filters

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: ISO 9001
    Model Number: TT Series Vacuum Ceramic Filtration System

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 1000 - USD30000
    Packaging Details: Iron Boxes
    Delivery Time: 45 days - 60 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Color:: Yellow Type:: Automatic Liquid Discharging
    Filter Area:: 2m³ To 9m³ Quanity Of Plate:: 1 Circle To 4 Circles
    Outer Diameter Of Plate: 1510mm



    Application:



    The TT Series Vacuum Ceramic Filter System is extensively used in the mining industry to separate liquids from solids for dewatering purposes. The operation and construction principle is similar to a conventional disc filter except the filter medium is replaced by finely porous ceramic discs, providing resistance to almost all chemicals and having a long operational life. The TT Series is designed and manufactured based on specific requirements by clients.



    Detail Specifications:



    Small Capacity Systems from 2m2 ~ 9m2 filtration area

    Model TT-2 TT-4 TT-6 TT-8 TT3C-9
    Specification (N m2 ) 2m2 2m2 2m2 2m2
    Liquid discharging way Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging
    Size L×W×H (mm) 2300×2480×2100 2300×2480×2100 2460×2480×2100 2460×2480×2100 2710×2480×2100 2710×2480×2100 2960×2780×2100 2960×2780×2100 2900×2850×2450
    Outer diameter of plate (mm) 1510 1510 1510 1510 1510 1510 1510 1510 φ1920
    Filter area () 2 2 4 4 6 6 8 8 9
    Quantity of plate (Circle) 1 1 2 2 3 3 4 4 3
    Quantity of ceramic 12 12 24 24 36 36 48 48 3
    Total weight (t) 1.8 1.8 2 2 2.5 2.5 3 3 36
    Max overhaul weight (t) 0.5 0.5 0.55 0.55 0.65 0.65 0.75 0.75 4
    Volume of tank (m3) 0.7 0.7 0.85 0.85 1.1 1.1 1.3 1.3 1
    Installed power (KW) 6.35 7.9 7.4 8.95 7.7 9.25 8.8 10.35 1.1
    Max working power (KW) 5.85 7.4 6.6 8.15 6.6 8.15 7.4 8.95 8
    Power of spindle speed 0.75 0.75 1.5 1.5 1.5 1.5 1.5 1.5 6.6
    Power of stirring speed 2.2 2.2 2.2 2.2 2.2 2.2 3 3 1.5
    Power of vacuum 1.45×2 1.45 1.45×2 1.45 1.45×2 1.45 1.45×2 1.45 2.2
    Powere of circulation   3   3   3   3 1.45×2
    Power of controlled volume pump (KW) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
    Power of ultrasonic (KW) 0.3 0.3 0.6 0.6 0.9 0.9 1.2 1.2 1.2

    98dosage of nitric acid

    (kg/d)

    1.8 1.8 3.6 3.6 5.4 5.4 7.2 7.2 16.2
    Clean water (m3/h) 0.36 0.36 0.72 0.72 1.08 1.08 1.44 1.44 38.88
    Entrance pressure of clean water (Mpa) 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5
    Production water consumption (m3/d) 4.2 4.2 5.1 5.1 6.6 6.6 7.8 7.8 6.6
    Entrance pressure of production water 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.35 ~ 0.5
    Air volume for gas back flushing (m3/min) 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.36
    Valve control gas 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.7
    Air intake pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.5 ~ 1.5
    Main shaft speed (r/min) 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 12 ~ 20
    Speed of agitator (r/min) 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20
