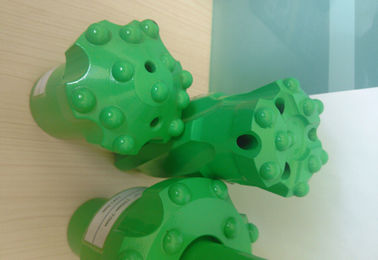

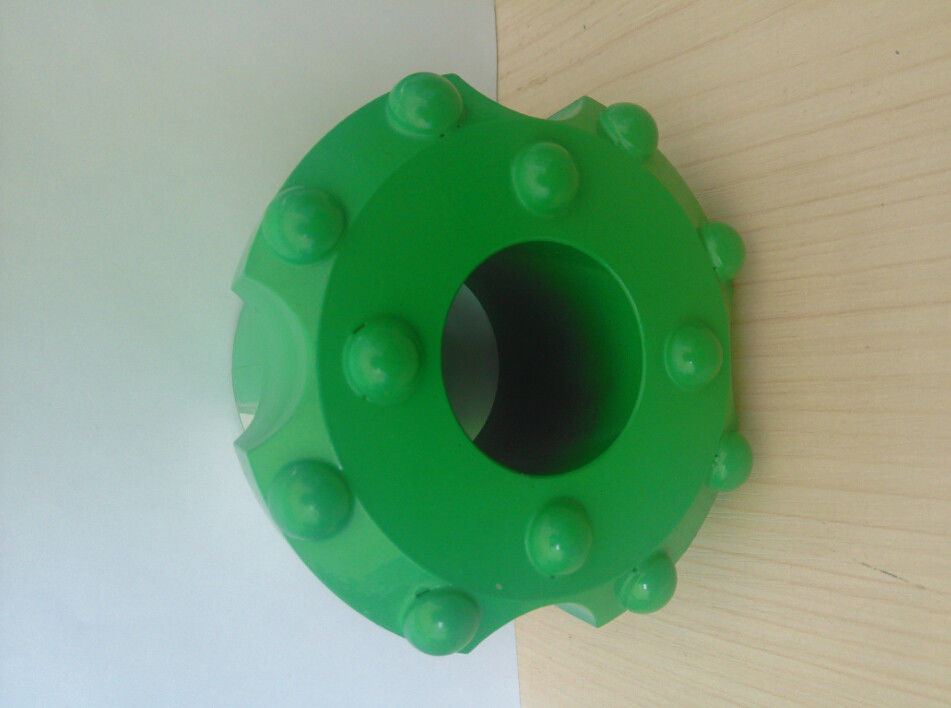

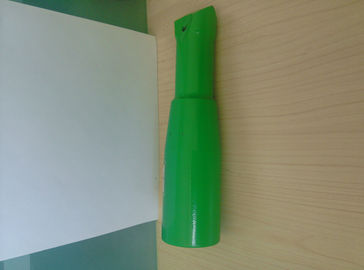

10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction

10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction

  • 10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction
  • 10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction
  • 10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction
10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction
Product Details:
Place of Origin: Shan Dong, China(Mainland)
Brand Name: MIROC
Certification: GB
Model Number: R32 R38 / T38 / T45 / T51
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: Carton or Wooden Box
Delivery Time: 1-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per month
Contact Now
Detailed Product Description
Type: Reaming Bits Material: Tungsten Carbide, 45CrNiMoV And YK05
Processing Type: Forging Use: Underground Construction
Color: Depends On Customers Button Bit Shape: Spherical, Ballistic
High Light:

reamer drill bit

,

cnc drill bits

10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction



Specifications

1) Thread connection:  R28, R32, R38, T38, T45
2) Steel material: 45CrNiMoV.
3) Suitable carbide tips.
4) Bits diameter: 30-89mm.

Usage:

 Drilling in ore field,

 Suitable even for harsh enviroment works;



Selling Point:

Quality certified;

 Competitive prices;

 Brand Name effect;

 Nice after-sales services;



T38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front  Side kg
1 64 3×10, 1×10  6×11 3  - 1.7
2 70 3×10, 1×10  6×12 3  - 1.8
3 76 3×11, 1×11  6×12 3 1 2.6
4 89 3×11, 2×11  6×13 3 1 3.3
R38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front  Side kg
1 64 3×11  6×12 3  - 1.8
2 70 3×10, 1×10  6×12 3  - 1.8
3 76 3×11, 1×11  6×12 2  - 2.6
4 89 4×13, 1×13  8×13 4  - 3.3
R32 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front  Side kg
1 41 2×8  5×9 1 1 0.7
2 43 2×9  5×10 1 1 0.7
3 45 2×9  5×11 1 1 0.8
4 48 2×9  5×11 1 1 0.9
5 51 2×10  5×11 1 1 1
6 57 3×9 6×11 3  - 1.3
7 64 3×11  6×12 3  - 1.6
8 70 4×11  8×11 2  - 2.6
9 76 4×11 8×11 2  - 2.8
R28 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front  Side kg
1 37 2×7  5×9 1 1 0.5
2 38 2×7  5×9 1 1 0.6
3 41 2×8 5×9 1 1 0.7
4 43 2×9 5×9 1 2 0.8
5 45 2×9 5×10 1 2 0.9
6 48 2×9  5×11 1 2 1



10 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction 010 Buttons Reamer Drill Bit 76mm Dome Tungsten Carbide for Construction 1
