12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project

12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project

  • 12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project
  • 12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project
  • 12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project
  • 12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project
  • 12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project
  • 12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project
12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE
Model Number: RT-15 Low Profile Dump Truck
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 1 Month
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10+Unit+Month
Contact Now
Detailed Product Description
Color:: Orange/White/Yellow Application:: Underground Mining And Project
Place Of Origin:: China Engine:: BF6L914W
Power:: Chisel Engine
High Light:

heavy duty Dump Truck

,

Underground Dump Truck



12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project



Competitive Advantage:
1. Original DEUTZ engine. Model can be chosed • Underground Mining or Tunneling Project
2. Very competitive pricing • Hydropower Tunneling
3. Competitive delivery time. 20-30 days • Roadway/Railway Tunneling/Underground Project
4. ISO9001 Certified • Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)




Operation Advantage:


The RT-12 Low Profile Dump Truck is ideal for medium scale rock excavation operations that require high haulage productivity. Works perfectly with the RL-2 LHD Machine. The RT-12 mantains the simple yet very robust design tenets of what a mining equipment should be -It has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.









Main Technical Configuration:



Brand: ROXMECH
Length: 7956 mm
Width: 1804 mm
Height: 2150 mm
Ground Clearance: 294mm
Dump Box Capacity: 6.0m3
Maximum Dump Angle: 70 degrees
Deadweight: 15000kg
Payload: 12000kg
Fully Loaded: 27000kg
Maximum tramming speed:
1st gear: 5.8km/h

2nd gear:

11.1km/h
3rd gear: 28km/h
Greadeability: Minimum speed of 3 km/h at 25% (based on good road conditions)
Engine type: BF6L914
Engine Design: Air cooled diesel engine
Engine Max Power: 112kw/2500 rpm
Engine Max Torque: 550 Nm/1600 rpm
Engine Air Intake System: Oil bath air filter
Exhaut System: Catalytic Exhaust gas catalyst/Silencer
Starter, power/Voltage: Bosch 4.8 kw/24v
Alternator, Voltage/ Ampere: Bosch 28 v/35A
Torque Converter Manufacturer: DANA Spicer off-highway
Type: C273

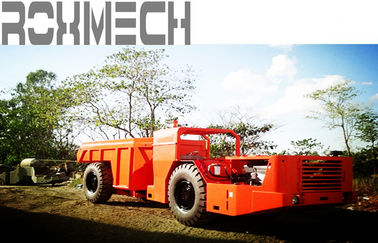

12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project 0

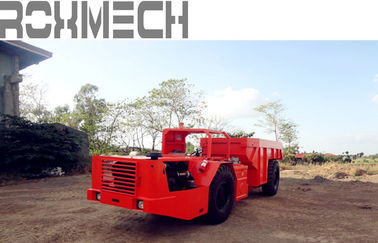

12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project 1

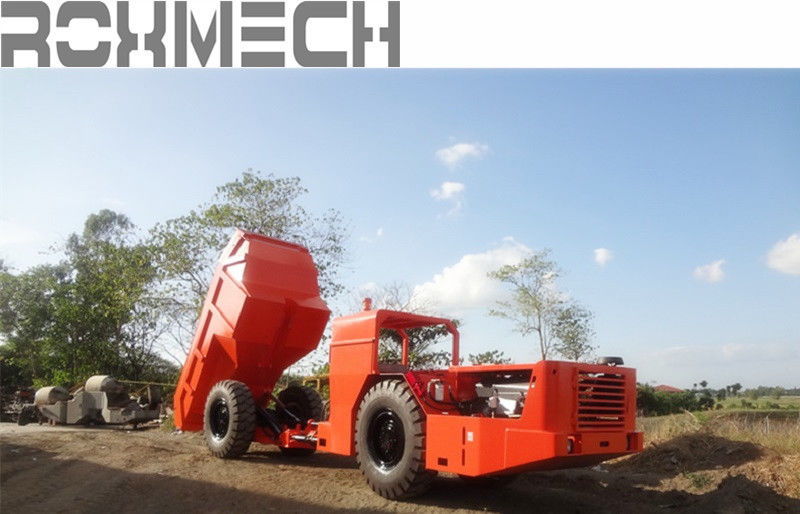

12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project 2

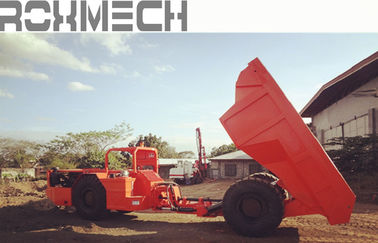

12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project 3

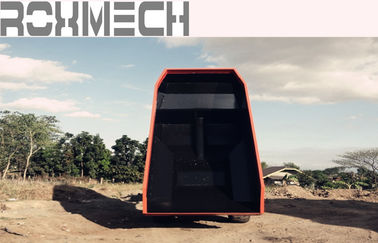

12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project 4

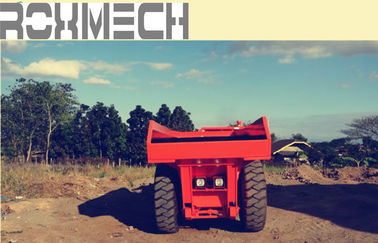

12 Tons RT -12 Heavy Duty Dump Trailers for underground mining or project 5

Our Service:



Our delivery can be 30 to 40 days;

We can offer training for our customers inside of our factory;

If the order is more then 5 units machines, we can send engineer to working side;

Offering some free spare parts together with the machines;

Can offer spare parts within short time;

Can change the machines based on customers' requirement.



Special service

Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



Design service

Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



Training service

When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.



Packaging & Shipping



Load in Container for Scoop tramp.jpgLoad in Container for Load Haul Dump.jpg



Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|





Company Information



ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.



ROXMECH® Rock Excavation and Service/Support Equipment include:



Load Haul Dump Machines

RL-0.6 Load-Haul-Dump Machine
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine



Low Profile Dump Trucks
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck



Support Equipment
RS-3 Service Vehicle Series
MT30M Low Profile Transmixer



Processing Equipment
TT Series Vacuum Ceramic
Filtration System
