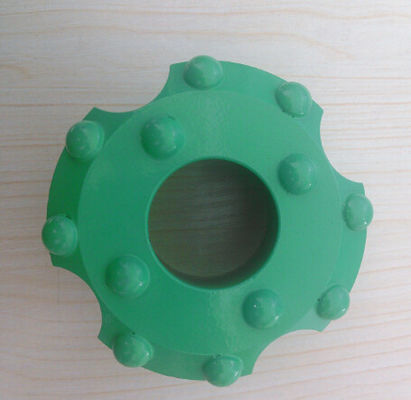

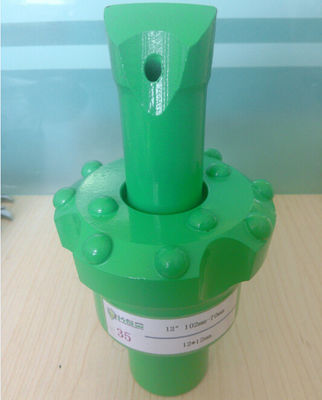

Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material

Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material

  • Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material
  • Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material
  • Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material
Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: API
Model Number: 4148300533-4148301039
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Material: 45CrNiMoV Type: Dome Bit For Reaming
Color: Green / Black Or Depends On Customers Use: Tunneling, Mining,Quarrying,Construction
Processing Type: Forging Thread: R32, T38, T45, T51, ST58, ST68
Button Bit Shape: Spherical, Ballistic,Conical
High Light:

reamer drill bit

,

tungsten drill bits

R32 T38 T45 T51 ST58 ST68 Rock Dome Reamer Button Drill Bit For Tunneling And Mining



Description



Reaming bits were widely used in quarrying or mining for blast hole drilling, with pilot adaptors, the drilling direction can be ensured and accurate. Pilot holes are drilled depth and then reamed out to a larger diameter in a second pass required when hole diameter exceeds the capabilities of the rock drill and drilling tools available



Materials: Tungsten carbide and high strength alloy steels.

Processing: CNC milling and proprietary "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand ,military grade requirements of heat-treatment guarantee durability .



1) Thread connection:  R32, T38, T45, T51, ST58, ST68
2) Steel material: 45CrNiMoV.
3) Suitable carbide tips.
4) Bits diameter: 76-152mm.

Specification:


R32 Thread dome bits
Diameter T.C buttons Flushing hole Angle Weight
mm inch Gauge x mm Front x mm Side Front Gauge Kg
76 3 9x13 1x13 1 3 35° 2.0
89 31/2 14x13 1x13 2 2 35° 2.5
102 4 16x13 1x13 2 2 35° 3.2
127   18x13 1x13 1 3 35° 4.8



Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material 0Construction Carbide Drill Bits / Button Drill Bit For Tunneling Mining 45CrNiMoV Material 1

Usage:

Drilling in ore field,

Suitable even for harsh enviroment works;



Our Services



KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due to physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.

The information you may like to know before order:



1. Methods of Payment:

T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3. Shipping way

Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

4. Quality Control

We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5. After Services:

a. Our sales team will response for your question within 24 hours (Holidays Excluded)

b. Technical Support will be available in any time

c. Free replacement will provide once the failure confirmed caused by our product quality
