R25 Threaded Rock Mining Tools / Hardened Steel Drill Bits , High Wear Resistance

R25 Threaded Rock Mining Tools / Hardened Steel Drill Bits , High Wear Resistance

  • R25 Threaded Rock Mining Tools / Hardened Steel Drill Bits , High Wear Resistance
  • R25 Threaded Rock Mining Tools / Hardened Steel Drill Bits , High Wear Resistance
  • R25 Threaded Rock Mining Tools / Hardened Steel Drill Bits , High Wear Resistance
R25 Threaded Rock Mining Tools / Hardened Steel Drill Bits , High Wear Resistance
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: ISO9001
Model Number: 4148300382-4148300389
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Color: Green,Blue Or Based On Demand
Use: Tunneling, Mining,Quarrying,Construction Design: Precise Design Suit Particular Needs
Button Bit Shape: Spherical, Ballistic Service: Product Customization
Type: Threaded Button Bit
High Light:

hardened steel drill bits

,

milling drill bits

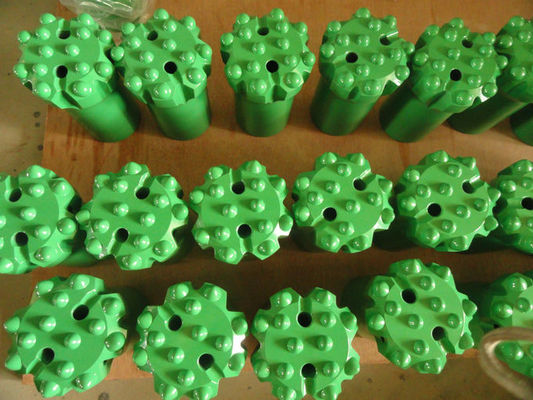

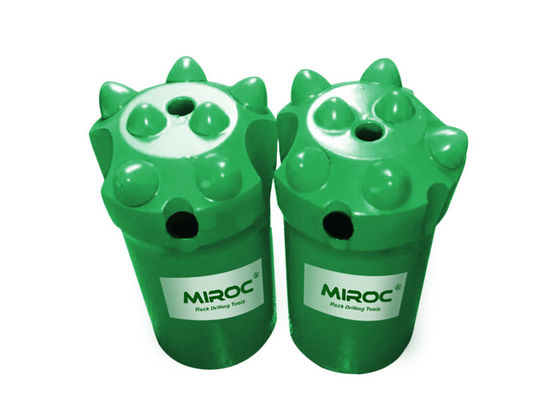

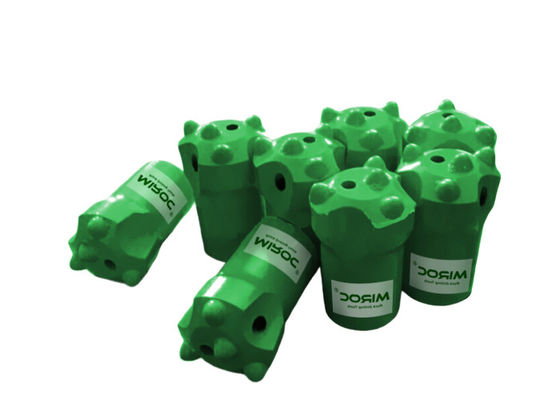

R25 Threaded Button Bit With Spherical/Ballistic Button for Rock And Mining Drilling



Describtion



R25 Button Bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



1. High wear resistance

2. Tungsten carbide

3. Medium-hard to hard abrasive rock



Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R25 Button Bit Short Skirt Spherical Buttons



Specification



Product: R25 button bit

Size choose: 33mm, 35mm, 38mm, 41mm, 45mm.

Button tip inserts choose: Spherical button, hemispherical button, Parabolic button, Conical button, Ballistic button.

Button tips qty choose: 6 button, 7 button.

Connection choose: R25 Extension rod, R25 speed rod, R25 drifter rod, R25 shank end rod.



KSQ Related Rock Drilling Tools


(1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,

     Shank H19 x 108mm and H22 108mm.


(2) Tapered Rock Drill Tools - chisel bit,  cross bit, button bit, drill rod of taper 7, 11, 12 degree


(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming     bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.


(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)



Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
