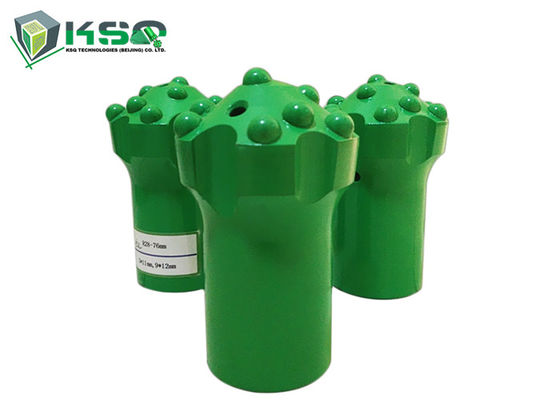

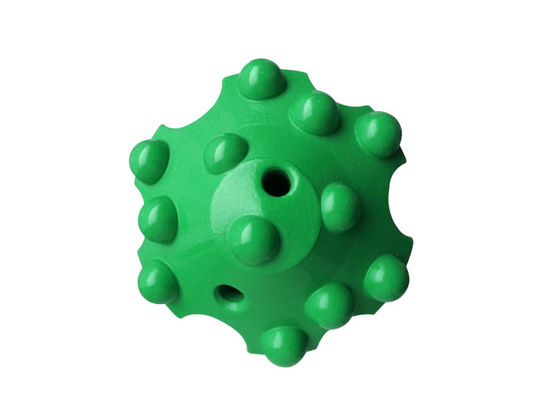

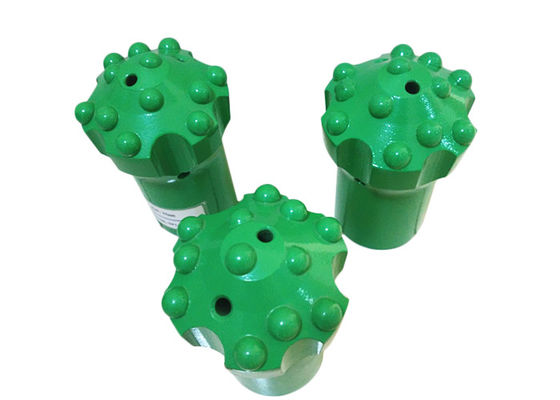

R28 Reaming Drill Bit Stone Drill Bits CNC Tunneling Mining Quarrying Construction

Large Image : R28 Reaming Drill Bit Stone Drill Bits CNC Tunneling Mining Quarrying Construction

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Model Number:	4148300452-4148300457

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	negotiation
Packaging Details:	Carton Box or Wooden Box
Delivery Time:	25 days
Payment Terms:	T/T or L/C
Supply Ability:	20000 pieces per month

Contact Now

Detailed Product Description

Highlight:

reamer drill bit

tungsten drill bits

Description

This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.

• Widely used in drifting and tunneling
• R28 thread system

Color: Green,Blue or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R28 Reaming Bit 6

Applications

• Underground mining
• Tunneling

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Specification

Part Number	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)
4148300452	64	2 1/2	2x10	8x9
4148300453	64	2 1/2	4x8	8x9
4148300454	76	3	2x11	8x11
4148300455	76	3	4x10	8x10
4148300456	89	3 1/2	4x11	8x11
4148300457	89	3 1/2	4x10	8x10

Product Code and Brief Description	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
RE1064-6D-R28, R28 Reaming Bit 6°	35°	-	-	0.8
RE1264-6D-R28, R28 Reaming Bit 6°	25°	-	-	0.8
RE1076-6D-R28, R28 Reaming Bit 6°	35°	-	-	1.2
RE1276-6D-R28, R28 Reaming Bit 6°	30°	-	-	1.2
RE1289-6D-R28, R28 Reaming Bit 6°	35°	-	-	1.7
RE1289-6D-R28, R28 Reaming Bit 6°	30°	-	-	1.7
