R32-64mm Retract Rock Drilling Bit

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	R32-64mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30
Supply Ability:	3000

Contact Now

Detailed Product Description

Type:	Retrac Button Bit	Material:	Tungsten Carbide
Body Type:	Retrac	Color:	Customized
Advantage:	High-efficiency	Use:	Quarry,construction,blasting,open Pit And Underground
Highlight:	R32-64mm retract rock drill bit , retract rock drilling tool , rock drill bit with warranty

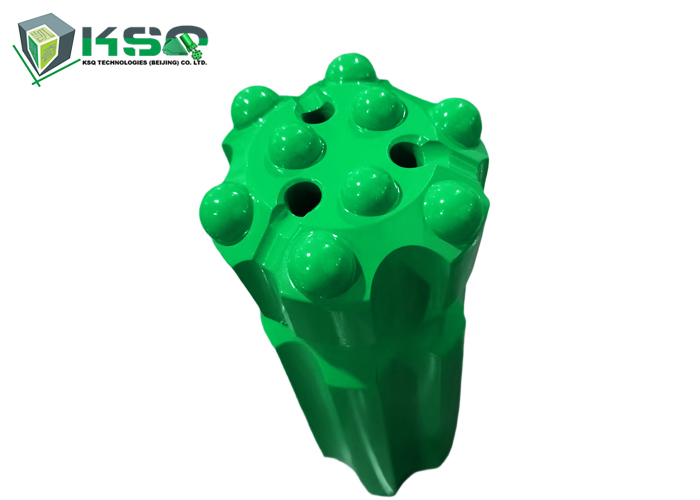

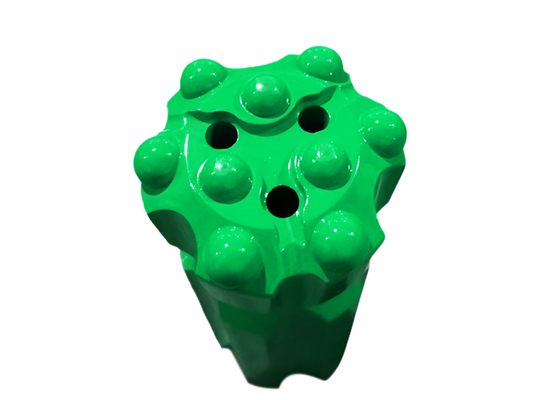

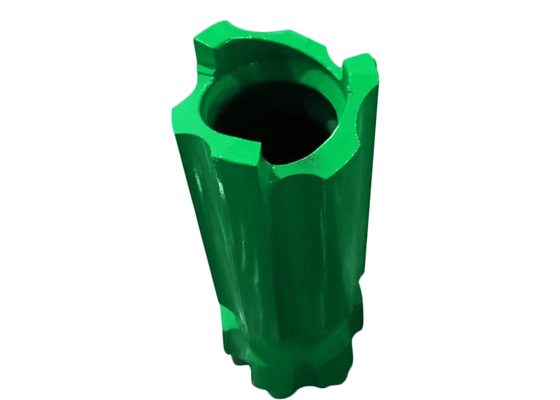

R32-64mm Retract Rock Drilling Bit

Product Attributes

Type	Retrac Button Bit
Material	Tungsten Carbide
Body type	Retrac
Color	Customized
Advantage	High-efficiency
Use	Quarry, construction, blasting, open pit and underground

Product Overview

A retractable button bit designed for small-to-medium diameter drilling (32-64mm), combining a retraction mechanism with button-shaped tungsten carbide inserts. Ideal for applications requiring frequent bit withdrawal in complex geological conditions.

Key Features

Retractable Design: Enables safe withdrawal during drilling to prevent jamming in fractured/abrasive formations.
R32 Thread Connection: Standard R32 threaded shank compatible with most drill rigs (e.g., DTH, top hammer).
Button Inserts: Spherical/wedge-shaped carbide tips for high wear resistance (suitable for medium-to-extremely hard rock).
Optimized Flushing: Internal fluid channels ensure efficient cuttings removal and bit cooling.

Applications

Geotechnical Exploration: Core sampling, blast hole drilling.
Mining: Small-diameter blast holes, anchor bolt holes.
Civil Engineering: Tunnel support drilling, micropile foundations.
Challenging Formations: Unstable layers (e.g., fault zones, loose gravel).

Technical Specifications

Parameter	Range	Notes
Diameter Range	32-64mm (incremental sizes)	Custom sizes available.
Rock Hardness	80-250 MPa UCS	Granite, quartzite, etc.
Recommended Load	5-15 kN	Adjust per rig capacity.
Rotation Speed	80-150 RPM	Lower for hard rock.
Flushing Pressure	≥1.5 MPa	Minimize bit balling.

Product Variants

Part Number	Product Code and Description	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
4148300527	R945-R32-B, R32 Retrac Button Bit, Ballistic Buttons	45	1 7/9	3x8	6x9	40°	3	-	1.1
4148300528	R948-R32-B, R32 Retrac Button Bit, Ballistic Buttons	48	1 8/9	3x9	6x10	30°	3	-	1.2
4148300529	R951-R32-B, R32 Retrac Button Bit, Ballistic Buttons	51	2	3x9	6x10	30°	3	-	1.4
4148300530	R1064-R32-B, R32 Retrac Button Bit, Ballistic Buttons	64	2 1/2	3x10, 1x10	6x11	35°	3	-	2.2
4148300531	R1264-R32-B, R32 Retrac Button Bit, Ballistic Buttons	64	2 1/2	4x10	8x10	40°	2	-	2.2
4148300532	R1376-R32-B, R32 Retrac Button Bit, Ballistic Buttons	76	3	4x11, 1x11	8x11	35°	4	1	3.5
