R32 6° Drill Bit Shank Tungsten Carbide Inserts 15x10mm

R32 6° Drill Bit Shank Tungsten Carbide Inserts 15x10mm

  • R32 6° Drill Bit Shank Tungsten Carbide Inserts 15x10mm
  • R32 6° Drill Bit Shank Tungsten Carbide Inserts 15x10mm
  • R32 6° Drill Bit Shank Tungsten Carbide Inserts 15x10mm
  • R32 6° Drill Bit Shank Tungsten Carbide Inserts 15x10mm
R32 6° Drill Bit Shank Tungsten Carbide Inserts 15x10mm
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148300547
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
High Light:

stone drilling tools

,

mining drilling tools

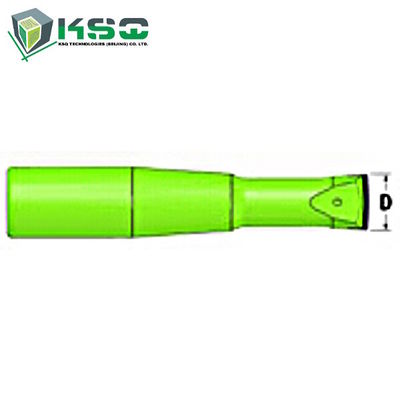

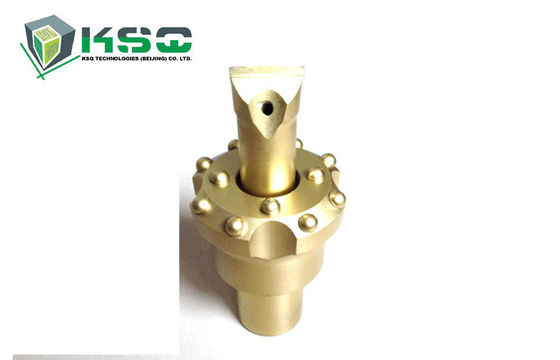

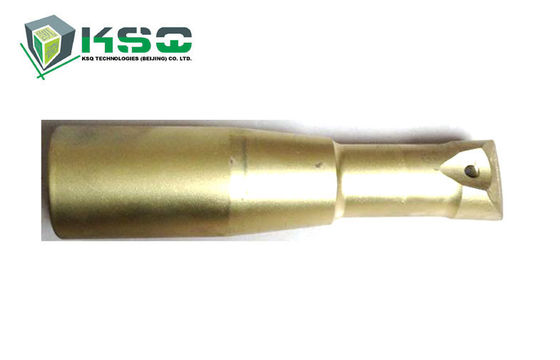

R32 6°Drill Bit Shank Tungsten Carbide Inserts 15x10mm



Description

This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


• Widely used in drifting and tunneling
• R32 thread system


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process

Type: R32 Pilot Adapter 6°



Applications

• Underground mining
• Tunneling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification


Part Number Bit Diameter (mm) Bit Diameter (inch) Tip Size (W x H, mm)
4148300547 40 1 4/7 15x10



Product Code and Brief Description Angle Front Flushing Holes Side Flushing Holes

Weight

(kg)

PA126-6D-R32, R32 Pilot Adapter 6° - - - 2.2
