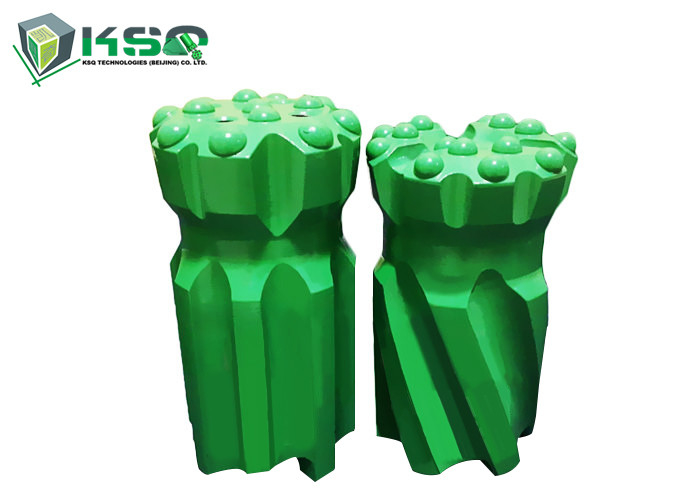

R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel

R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel

  • R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel
  • R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel
  • R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel
  • R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel
  • R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel
R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel
Product Details:
Place of Origin: China
Brand Name: MIROC (KSQ)
Model Number: Button Drill Bits
Payment & Shipping Terms:
Minimum Order Quantity: Negotiated one
Price: Negotiable
Packaging Details: Carton or Wooden Box
Delivery Time: 15-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 pcs per Month
Contact Now
Detailed Product Description
Button Types: Spherical , Ballistic Thread System: R38
Application: Mining Operations, Drifting And Tunneling, Quarrying, Construction Color: Black, Green Or Based On Requestss
Material: Tungsten Carbide Diameter: 64 - 89
High Light:

hardened steel drill bits

,

milling drill bits

R38 Threaded Drill Bits 89mm

For Drifting / Tunneling

Hardened Steel

Spherical and Balistic Buttons



Spherical Button Characteristics:


1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions


Ballistic Button Characteristics:


1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions



R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel 0



Application:



1. Underground mining
2.
Tunneling

3. In granite and marble quarry

4. Gold Mine

5. Dimensional Stone Industry



Package: Carton or Wooden Box; also we can follow customers' requirements.

Delivery time is around 15-25 days.



Spherical Button Bit



Drill Bit Diameter, mm No x Buttons diameter Flushing Holes Weight, kg
Front Gauge Angle Front Side
Button Bit Spherical
64 3 x 11 6 x 12 35 3 - 1.8
70 4 x 11 8 x 11 40 2 - 1.9
70 4 x 10, 1 x 10 8 x 11 30 4 - 1.9
70 3 x 10, 1 x 10 6 x 12 35 3 - 1.8
76 4 x 11 8 x 11 40 2 - 2.4
76 3 x 1, 1 x 11 6 x 12 35 3 1 2.6
76 4 x 11, 1 x 11 8 x 12 35 4 - 2.6
89 5 x 12 8 x 12 35 2 - 3.3
89 4 x 13, 1 x 13 8 x 13 35 4 - 3.3



R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel 1



R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel 2R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel 3





Ballistic Button Bit



Drill Bit Diameter, mm No x Buttons diameter Flushing Holes Weight, kg
Front Gauge Angle Front Side
Button Bit Spherical
64 3 x 11 6 x 12 35 3 - 1.8
70 4 x 11 8 x 11 40 2 - 1.9
70 4 x 10, 1 x 10 8 x 11 30 4 - 1.9
76 4 x 11 8 x 11 40 2 - 2.4
76 3 x 1, 1 x 11 6 x 13 35 3 1 2.6
76 4 x 11, 1 x 11 8 x 12 35 4 - 2.6
89 5 x 12 8 x 12 35 2 - 3.3
89 4 x 13, 1 x 13 8 x 13 35 4 - 3.3



R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel 4



R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel 5R38 Threaded Drill Bits 89mm Retrac Body For Drifting / Tunneling Hardened Steel 6



MIROC® Production:

Integral Rods

Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods

Coupling Sleeves
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers



Company Information:

DTH Drill Bit 127mm DHD340 Bit Shank With Spherical and Ballistic Carbide Have Foot Valve


The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.



MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
