T38 T45 T51 Dome Reamer Drill Bit For Mining / Construction , Tungsten Carbide Forging

T38 T45 T51 Dome Reamer Drill Bit For Mining / Construction , Tungsten Carbide Forging

  • T38 T45 T51 Dome Reamer Drill Bit For Mining / Construction , Tungsten Carbide Forging
  • T38 T45 T51 Dome Reamer Drill Bit For Mining / Construction , Tungsten Carbide Forging
  • T38 T45 T51 Dome Reamer Drill Bit For Mining / Construction , Tungsten Carbide Forging
T38 T45 T51 Dome Reamer Drill Bit For Mining / Construction , Tungsten Carbide Forging
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Model Number: Pilot Adapter Reaming Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10 - 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Type: Dome Bit Material: Tungsten Carbide And Alloy Steel Bar
Color: Green,blue,golden,orange Etc Processing Type: Forging
Thread: T38 T45 T51 Use: Tunneling, Mining,Quarrying,Construction
High Light:

reamer drill bit

,

cnc drill bits



Tungsten Carbide Forging T38 T45 T51 Dome Reaming Drill Bits For Mining And Construction



Description:


This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.



Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: T38 T45 T51 Dome Bit For Reaming Spherical Buttons



Specification:



THREADED ROCK DRILLING TOOLS - T38 Dome Bit
Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle front Side kg
Spherical
102 4    1×13 16×13 35° 2 2   4148300766
127 5    1×13 16×13 35° 1 3   4148300767
Ballistic
102 4    1×13 16×13 35° 2 2   4148300768
127 5    1×13 16×13 35° 1 3   4148300769
THREADED ROCK DRILLING TOOLS - T45 Dome Bit
Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
127 5    1x13 18x13 35° 3 1 6.0 4148300863
152 6    2x14 18x14 35° 3 1 10.6 4148300864

Ballistic
127 5    1x13 18x13 35° 3 1 6.0 4148300865
152 6    2x14 18x14 35° 3 1 10.6 4148300866
THREADED ROCK DRILLING TOOLS - T51 Dome Bit
Diameter Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
152 6    2x14 18x14 35° 3 1 10.6 4148300945

Ballistic
152 6    2x14 14x14 35° 3 1 10.6 4148300946





Applications


• Underground mining
• Bench Drilling


Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery

  and heat treatment



Photos:

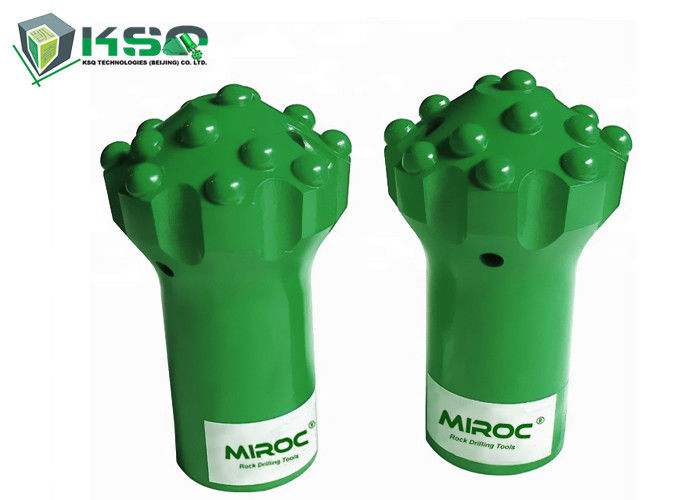

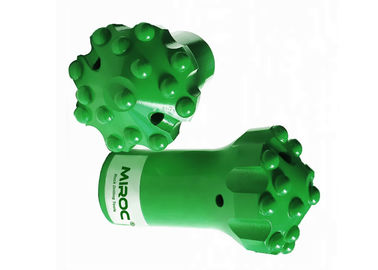

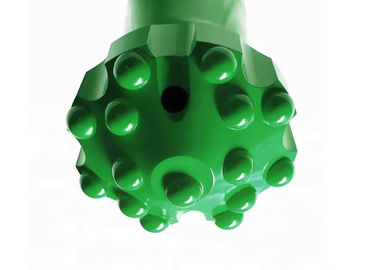

T38 T45 T51 Dome Reamer Drill Bit For Mining / Construction , Tungsten Carbide Forging 0
