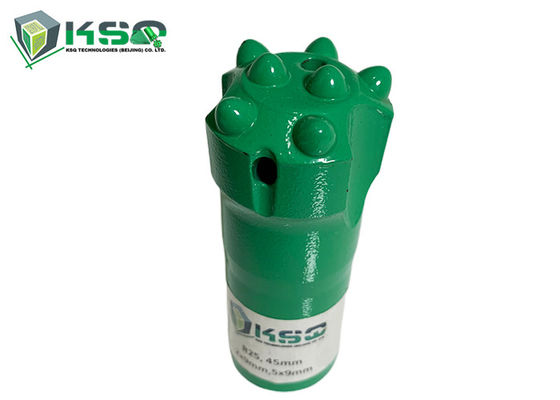

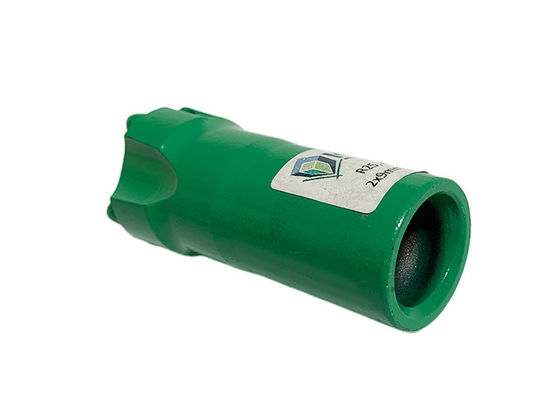

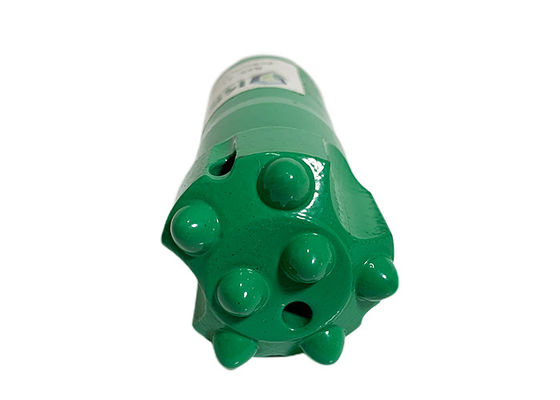

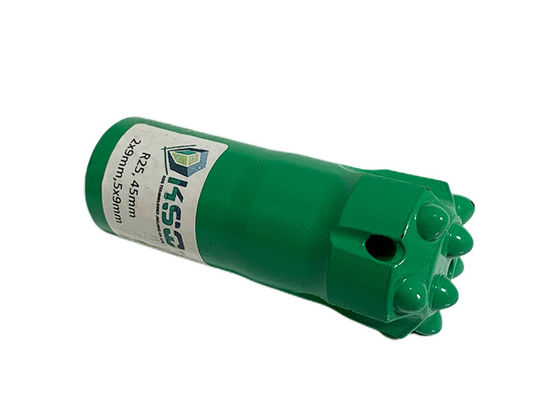

Forging R25 Thread Button Bits Rock Drilling Tungsten Carbide Drill Tools

Large Image : Forging R25 Thread Button Bits Rock Drilling Tungsten Carbide Drill Tools

Product Details:

Place of Origin:	Shangdong,China
Brand Name:	MIROC
Certification:	ISO9001:2000
Model Number:	Thread Button Bits

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	negotiation
Packaging Details:	Carton Box or Wooden Box
Delivery Time:	10-22days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	30000pcs per month

Contact Now

Detailed Product Description

Type:	Thread Button Bits	Material:	Alloy Steel Bar And Tungsten Carbide
Color:	Green	Processing Type:	Forging
Button Bit Shape:	Ballistic	Face Shape:	Flat Face
Body Shape:	Normal Body	Thread:	R25 R32
Highlight:	stone drilling tools , mining drilling tools

Forging R25 R32 Thread Button Rock Drill Tools Tungsten Carbide Drill Bits

Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock

Button bit and Insert types
Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions

Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions

Applications of rock drilling tools

• Underground mining
• Tunneling,quarrying

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Product Name:	different rock hardness drilling button bit
Description:	For different rock hardness mining,tunneling,quarrying button bit Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment.
Material:	Alloy steel bar and tungsten carbide bit
MOQ:	trial order 1-5pcs
Body Type	Normal type and retract type
Thread type	R25,R28,R32,R38,T38,T45,T51,ST58,ST68
Diameter	32mm-152mm
Button bit shape	Spherical and Ballistic
Face shape	Flat shape and Drop-center shape
