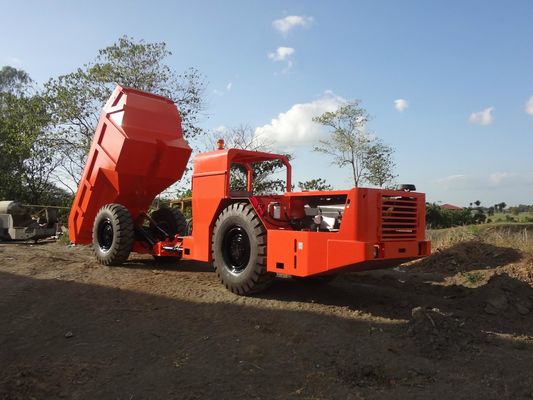

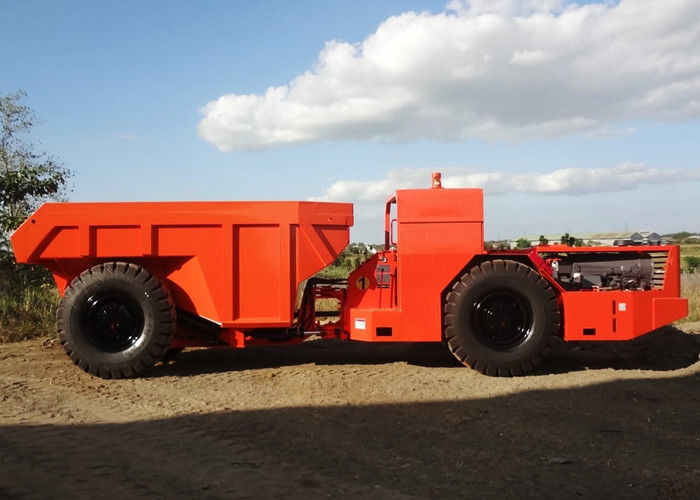

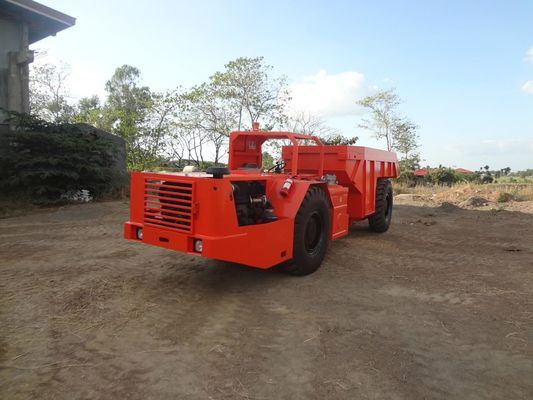

7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck

7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck

  • 7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck
  • 7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck
  • 7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck
7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: ISO9001 certified
Model Number: RT-15 Low Profile Truck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Suitable for Long Transportation
Delivery Time: 55 to 60 fays
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 10 units per month
Contact Now
Detailed Product Description
Color:: Yellow, Orange, Or As Customer Needs Model:: RT-15 Low Profile Truck
Bucket Capacity:: 15 Tons / 7m³ Engine:: DEUZ BF6M1013EC(135 KW), Or DEUZ F8L413FW(136kW)
Torque Converter:: DANA C270 Series Transmission:: DANA R32000 Series
Axle:: DANA 16D Truning Radius: Inside: 3706±150mm, Outside:6568±150mm
Gradeability: 25% (at Minimum Speed Of 5 Km/h Based On Good Road Conditions) Dimension: 7600x2100x2480mm (LengthxWidthxHeight)
High Light:

Underground Dump Truck

,

mining dump trucks

7cbm or 15 Tons Bucket Capacity Underground Mining Dump Trucks

Competitive Advantage:
1. Original DEUTZ engine and CUMMINS engine Model can be chosed • Underground Mining or Tunneling Project
2. Very competitive pricing • Hydropower Tunneling

3. Competitive delivery time.

 55-60 days

• Roadway/Railway Tunneling/Underground Project
4. ISO9001 Certified



Main Configurations:

Engine:

DEUZ BF6M1013EC(135 kW),



or DEUZ F8L413FW(136kW)



or customer choosed

Torque converter: DANA C270 series
Transmission: DANA R32000 series
Axle: QY150(China),or DANA 16D
Tire: 14.00-24



Main technical data:

Main Dimensions



Bucket lifting time:

11s
Bucket unloading angle: ≥68 degree
Steering angle:

±40 degree

Ground clearance ≥290mm
Dump box capacity 7.0 m3
Maximum dump angle 68 °
Weights

Deadweight

16,000 kg
Payload 12,000 kg
Fully loaded 28,000 kg

Maximum tramming speed

Laden forward/reverse, on a level roadway



1st Gear

 5 km/h
2nd Gear  10.03 km/h
3rd Gear  17.09 km/h
4th Gear  23.7 km/h

Gradeability

 Minimum speed of 5 km/h at 25% (based on good road conditions)
Turning radius

  Insde:3706±150mm

 Outside:6568±150mm



7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck 0

Further information you might interested to know:



1. What is your delivery time?

    - Our delivery can be 55 to 60 days;



2.  What service we can get from you?

     - We can offer training for our customers inside of our factory on operation and maintenance; If the order is more than 5 units machines, we can send our engineer directly to working side for traininig;

     - Offering some free spare parts together with the machines;

     - Can offer spare parts of recommended list to be stocked in users' local market for 1 year, or 2 years, and supply those parts within short time;



3. Do you have warranty for the machines?

    - Yes, the warranty period is 2000 working hours or 360 days after commissioning, whichever occurs first.



4. Can you change the machines based on our requirements?

    - Yes, once you send us your requirements ( engine model, torque converter model, transmission model etc....), we can change the machines based on customers' requirement.



Special service



Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.



Design service



Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.



Training service



When it comes to training service, we offer technical manual to our customers, and we will provide group customers with operation and maintenance courses.In addition, OEM is also available.





Other Products you may Interest:





RL-3 LHD loader used together with RT-15 truck

7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck 1





12 tons Bucket capacity RT-12 truck

7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck 2



2 m³ bucket capacity RL-2 Loader

7cbm Or 15 Tons Bucket Capacity Underground Mining Dump Trucks , RT-15 Low Profile Truck 3
