Product Details:
Payment & Shipping Terms:
|
| Product Name: | ST58 Retract Button Bit | Type: | Rock Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | Tungsten Carbide & Steel |
| Processing Type: | Casting | Use: | Mining Drilling |
| Thread: | ST58 | Color: | Any Color Is Available |
| Bit Diameter: | 89-115mm | Button Type: | Spherical/Ballistic |
| High Light: | stone drilling bits,spherical drill bit |
||

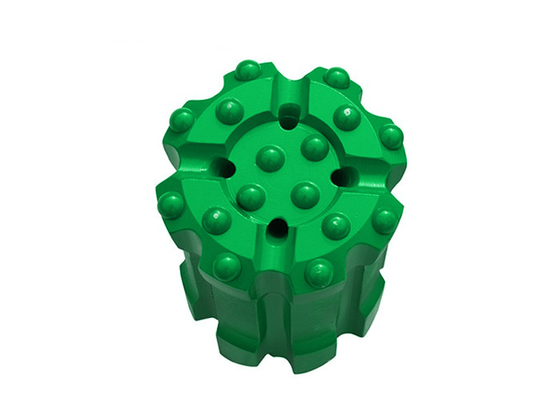

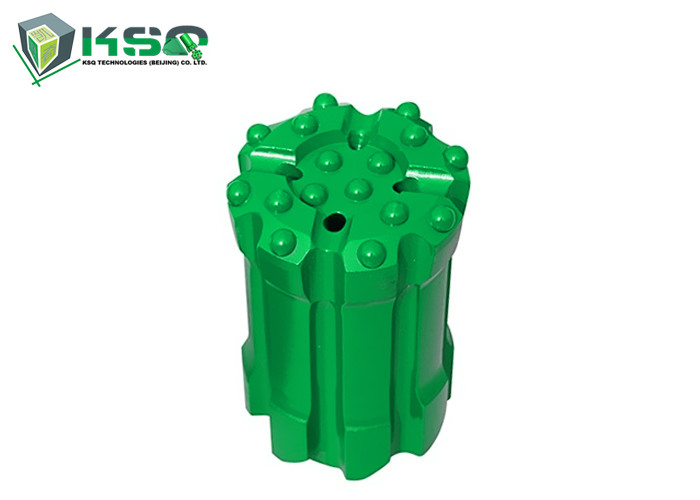

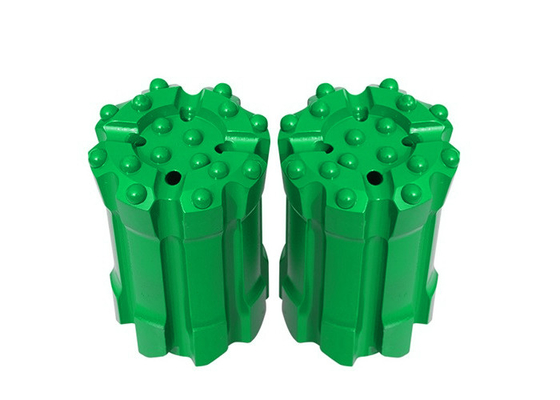

ST58 retractable drill bit retrac body rock drill bit for mining drilling
Application:
The Retrac Bits are widely applicable to mining industry, tunneling and underground engineering, open pit, construction drill, blast industry, civil engineering operations,
road, gas line, pipe and trench projects, quarry work, rock anchoring and ground stabilization projects, water well industry, etc,.
89mm 102mm 115mm Retrac button bit ST58
This type design can get better hole deviation control while drilling, it can get bit back easily while the bit is jammed during drilling.
| Face Type | Flat face |
General purpose bit Suited for medium to hard rock |
| Drop conter |
Straight hole application Suited for medium to hard rock |
|
| New drop center |
Straight hole application Suited for medium to hard rock |
89mm 102mm 115mm Retrac button bit ST58
| Button type | Spherical button |
Universal button Wearing resistance good Best suited to hard ground 27,000~48,000 PSI (180 to 320 Mpa) Abrasive to very abrasive |
| Hemispherical button |
Universal button Wearing resistance good Best suited to hard ground 25,000~45,000 PSI (170 to 300 Mpa) Abrasive to very abrasive |
|
| Parabolic button |
Universal button Fast penetration Best suited to medium to hard rock 15,000~25,000 PSI (100 to 170 Mpa) Midly abrasive ground |
|
| Conical button |
Fast penetration Best suited to smaller diameter bits Suited for all non-abrasive ground types |
|
| Ballistic button |
Fast penetration Best suited to soft rock 10,000~20,000 PSI (70 to 140 MPa) Non abrasive ground |
