High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment

High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment

High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment
High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment

Product Details:

Place of Origin: China (Mainland)
Brand Name: KSQ
Certification: ISO9001
Model Number: KSQ-70 Pneumatic

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pieces
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 7-10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Drilling Diameter: 50-90mm Drilling Pipe Diameter: 42mm
Apply Rock Hardness: ≥ 20 Drilling Depth: ≥ 15m
Weight: 300kg Application: Water Conservancy Project; Constrection Projects;
Dimension: 1740*260*420mm Warranty: 1 Year
High Light:

borehole drilling rig

,

hydraulic water well drilling rig

High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment for Sale

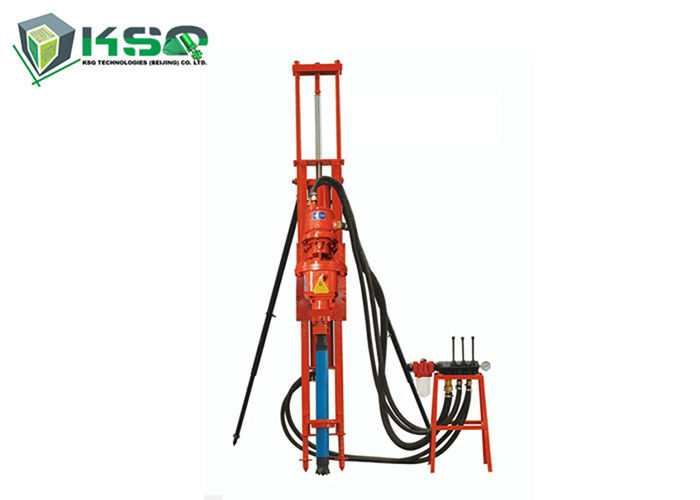

KSQ type 70 Small pneumatic down-the-hole drilling rig is designed for these highway, railway, water conservancy, mine construction engineers which road inconvenient in the earlier projects stage.The auxiliary equipment for supplying power is lighter and easier to relocation and transfer.In the case of utmost reduce the main machine weight can still meet the needs of drilling large diameter and deep hole operations.

But also is suitable for the slope support and other projects.So the machine is a kind of portable and economic model.

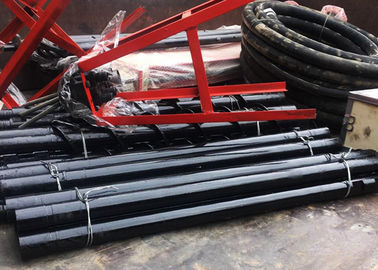

The whole set of equipment includes:

1. drill rig
2. control console
3. suppprt legs
4. impactor
5. drill pipes
6. drill bits
7. air hoses



Description:
1. High efficiency, which makes the low cost operation.
2. Simple structure. Easy to be installed, uninstalled and maintained.
3. More user-friendly operation.
4. Light overall weight and separated structure, making it convenient to move and transport.



Performance advantages:
1. Safe and stable traveling system
Low gravity, great ground clearance, make cars easily make drill through rugged road.The advanced automatic balance system, not only makes drilling stable, also greatly reduced the impact of the car, and ensure the safe driving.
2. Centralized operating system of Mobile Drilling Rig Drill carriage designed with advanced hydraulic system and completely functional gas circuit system.

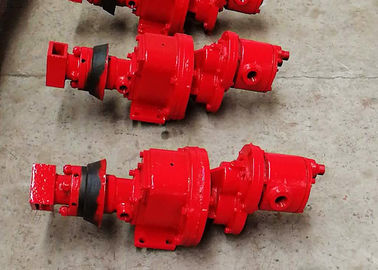

3. Powerful feeding and rotating system of Mobile Drilling Rig
Promote reducer drives adopt turbine and worm, which have a big push- pull effort and can reliaze self-locking.
4. Adjustable boom
Adopt adjustable boom, the dip angle of hole and Level hole height can adjust by control the oil tank stretch out and draw back.



Technical Parameter:

Model KSQ-70
Drilling Diameter 50-90mm
Drilling Depth ≤15m
Electric Motor 380V, 50Hz, 3Ph
Motor Power 3kw
Drilling Pipe OD 42mm
Quantity 15pcs
Impactor OD 70mm
Air Consumption 4m3/min
Air Pressure 0.5-0.7Mpa
Dimension 1740*260*420mm
Weight 280kg



Other Type of Drill Rig:

Model KSQ 70 KSQ 100 KSQ 100 KSQ100-4
KSQ120-5.5
Drilling diameter (mm) 50-90 90-130 90-130 90-130
Rock ruggedness coefficient >20 >20 >20 >20
Drilling depth (m) 15 25 25 30-40
Rotate speed (r/min) 110 110 110 110
Working air pressure (Mpa) 0.5-0.7 0.5-1.0 0.5-1.0 0.5-1.0
Air comsumption (m3/min) 4 6 12 10
Propulsion stroke (mm) 90 140 140 140
Max propelled force ( N) 3600 9600 9600 9600
Electric motor power (kw) 3 4 ----- 4/5.5
Electric Motor Voltage( V) 380 380 ----- 380
Rated speed (r/min) 1440 1440 3200 1440
Drilling rod (mm) 42 50/60 50/60 60
Drilling rod length (mm) 1025 1025 1025 1025
Dimension (mm) 1740*260*420 2280*440*550 2230*380*550 2230*380*550
Weight (kg) 280 470 450 460/480

High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment 0

High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment 1

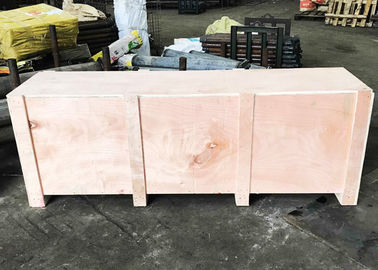

Packing & Shipping
1. Packaging:
1) Wrapped by proctective film;
2) Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
