    Product Details:

    Place of Origin: China
    Brand Name: ROXMECH
    Model Number: DR-350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: no package
    Delivery Time: 25-30 works days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Core Water Well Drilling Machine Core Drilling Capacity: BQ 600m
    Hole Diameter: 200-400mm Depth: 100-200m
    Condition: New Machine Type: Water Well Drilling Equipment
    Usage: Core Drilling
    High Light:

    borehole drilling rig

    ,

    hydraulic water well drilling rig

    Cheapest Mine Core Drilling Rig Rock Geological Core Water Well Drilling Rig Machine For Sale

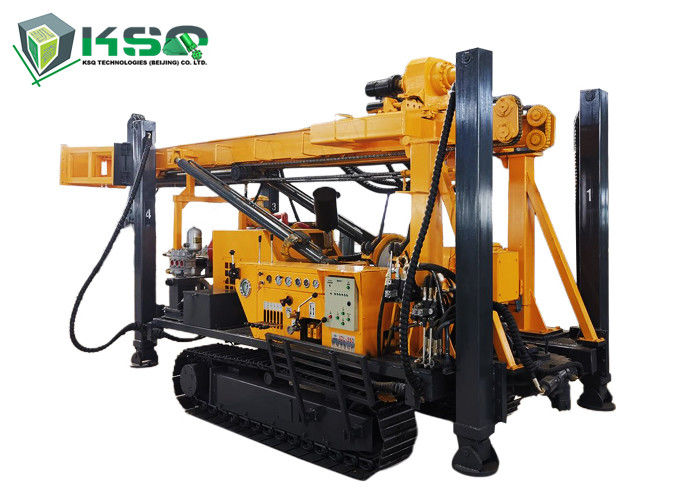

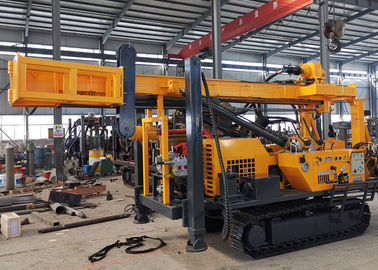

    DR-350 drilling rig is a mechanical top drive drilling equipment integrating water drilling and gas drilling, which solves the difficulty of air drilling with air-dive hole hammer in soil layer, hard rock layer, gravel and pebble layer. Due to the low efficiency of mud drilling construction, the dual-purpose water and gas rig is suitable for various formations, and the efficiency of drilling cores and geological exploration for drilling cores is highly efficient and energy-saving.





    Main Technical Features



    1.Equipped with hydraulic steel track, the off-road ability is stronger;

    2. It is equipped with 4 hydraulic square tube high legs, which is convenient for leveling on site and can save a lot of loading and unloading costs;

    3. The drill rig is equipped with a drill rod frame and a foot pedal on the left and right respectively, the design is more user-friendly;

    4. The front end of the drilling rig is equipped with an auxiliary rod unloading cylinder, which is more convenient for loosening the drill rod;

    5. The hydraulic oil pump and the power are directly connected with a universal shaft, and the rig can climb and move more powerfully;

    6. AMT manual-automatic automatic transmission gearbox and electronically controlled shifter are adopted to make shifting easier;

    7. The drilling rig uses dual oil pumps to supply oil, and the hydraulic system uses split and merge technology to make the power head rise and fall more quickly;

    8. Equipped with folding auxiliary tower, it can lift 2 3m/root gas drill rods at a time.



    Specification



    Drilling capacity Drilling depth for water well 200m
    Wireline coring N size 500m
    Borehole (Drill bit) dia. Ø75~Ø350mm
    Casing Max. diameter* length Ø75*6000mm
    Feeding system Lifting capacity 6.5 Ton
    Thrusting capacity
    Drive head Rotary speed RPM 0~1000 r/min Adjustable
    Positive rotation:50/94/167/239/281/347/445/790/1000 reversal rotation :56/265
    Max. Torque 10500N.m
    Power Unit Engine Model YN33GBZ
    Rated power/speed 65kW/ 2400r/min
    Mechanical winch capacity 4.5 Ton
    Drill pipe Drill pipe dia. Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
      Drill pipe length 3000mm
    Air compressor Air consumption 16~35m3/min
    Air pressure 10.5~24.6bar
    Crawler chassis Walking speed 0~2 km/h
      Climbing angle Max. 30°~35°
    Dimension Transport 6000*1600*2600mm
    Working 3480*1600*6280mm
    Weight with steel crawler 6500kg
