Home ProductsDTH Hammers

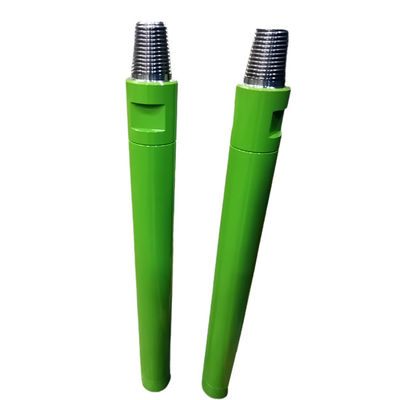

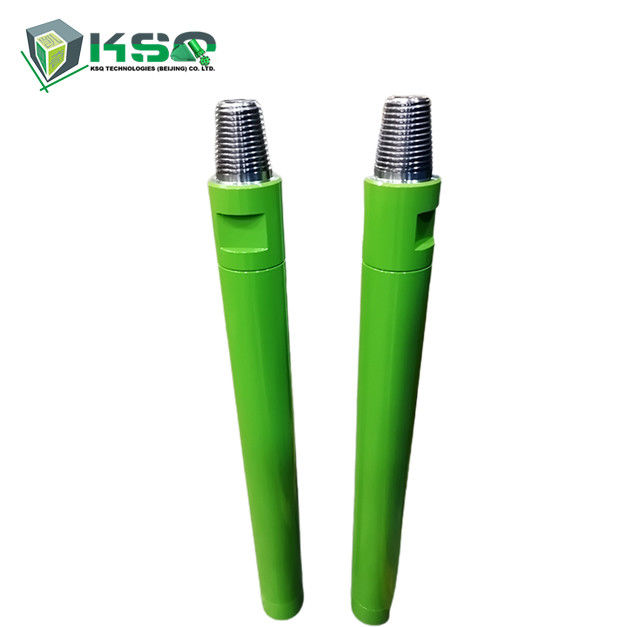

DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling

DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling

  • DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling
  • DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling
  • DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling
  • DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling
DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: API
Model Number: DHD3.5 DHD340 DHD350 DHD360
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD$70-$120
Packaging Details: Wooden Plate
Delivery Time: 20 days
Payment Terms: T/T or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Processing Type: CNC Milling And Proprietary Heat Treatment Process Use: Tunneling, Mining,Quarrying,Construction
Material: Tungsten Carbide And High Quality Carbon Steel Product Name: DTH Hammers
Series: COP, MISSION, SD, DHD,QL Hole Range: 76-152mm
Connect Thread: API 2 3/8" API 3 1/2" API 4 1/2" API 6 5/8" REG Machine Type: Drilling Tool
Advantage: High Quality And Factory Prices Color: Blue,Gold,Red,Golden,blue Or Customized
High Light:

DHD360 DTH Hammers

,

DHD350 DTH Hammers

,

DHD340 DTH Hammers

DHD3.5 DHD340 DHD350 DHD360 Low Pressure Down The Hole DTH Hammers For Water Well Drilling

Description
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths

Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Low Pressure DTH Hammer

Specification

Technical Data
Length(Without Bit) 930mm 1030mm 1214mm 1160mm 1248mm
Weight(Without Bit) 25.00 kg 39.00 kg 76.50 kg 72.50 kg 100.00 kg
External Diameter 82mm 99mm 126mm 126mm 142/144/146/148mm
Bit Shank DHD3.5 COP44/DHD340 COP54/DHD350R ND55C/DHD350Q COP64/DHD360
Hole Range 90-110 mm 110-135 mm 135-155 mm 135-155 mm 155-190 mm

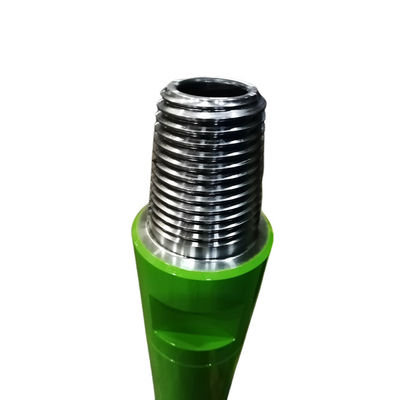

Connect ion Thread API 2 3/8”Reg API 2 3/8”Reg

API 2 3/8”Reg

API 3 1/2”Reg

API 2 7/8”Reg

API 2 3/8”Reg

API 3 1/2”Reg

API 2 7/8”Reg

API 3 1/2”Reg



Working Pressure 1.0- 1.5 Mpa 1.2-2.0 Mpa 1.3-2.3Mpa 1.3-2.3 Mpa 1.5-2.5 Mpa
Inpact Rate at 17 Bar 28HZ 27HZ 25HZ 25HZ 23HZ
Reccfurended Rotation Speed 25-40 "min 25-40 r/min 20-35 r/min 20-35 r/min 20-30 r/min
Air Consunption 1.0Mpa :4.5 m3/min 1.0Mpa :6m3/min 1.0Mpa:9 m3/min 1.0Mpa:9m3/min 1.0Mpa :10 m3/min
1.5Mpa:9.0m3/min 1.8Mpa:10m3/min 1.8Mpa:15m3/min 1.8Mpa:15m3/min 1.8Mpa:20m3/min
  2.4Mpa:15m3/min 2.4Mpa:23m3/min 2.4Mpa:23m3/min 2.4Mpa:28.5m3/mi


Applications
• Underground mining
• Quarry benching operations
• Water well drilling

Competitive Advantage
•  Main hammer components manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
DHD3.5 DHD340 DHD350 DHD360 DTH Hammers For Water Well Drilling 0
