Product Details:
Payment & Shipping Terms:
|
| Material: | Hign Manganese Steel | Use: | Well Drilling |
|---|---|---|---|
| Model Type: | COP | Face Design: | Concave, Convex, Flat |
| Carbide Design: | Dome, Parabolic, Ballistic | Processing Type: | Forging |
| Diameter: | 85mm To 105mm | Shank Type: | COP32 |
| High Light: | 105mm dth drill bit,85mm dth drill bit,cop32 dth drill bit |
||

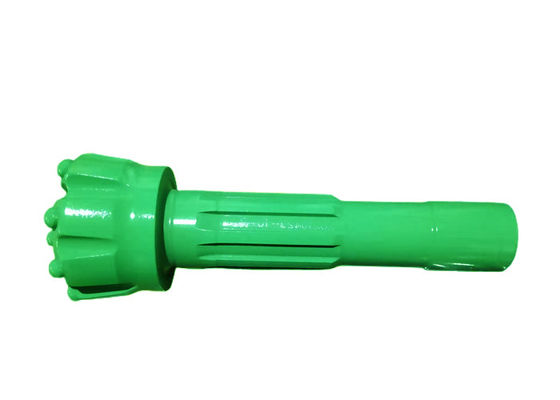

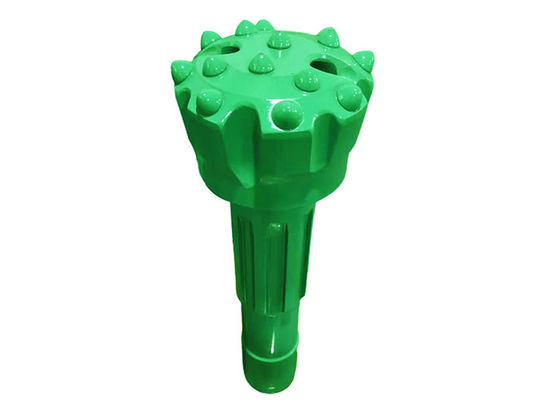

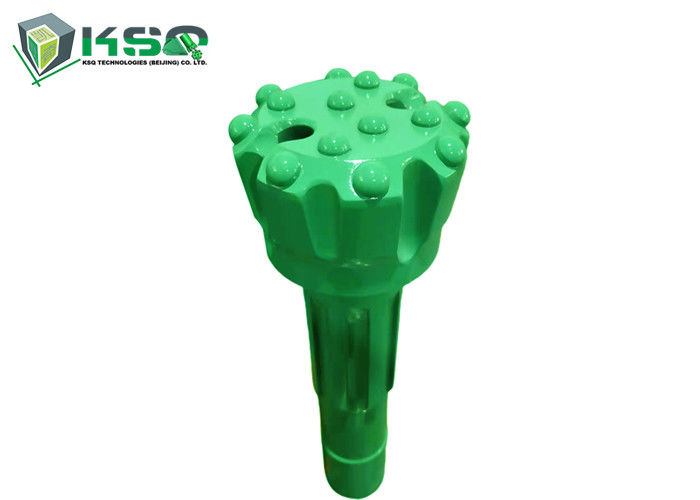

Description
DTH bit is the tool cutting rocks, and subject to severe stress from the striking piston as well as from the abrasive cuttings passing the bit at high velocity. When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life.
Specification
| Drill Bit | Bit Dia. | Spline Key Number | Buttons (mm) | NO. Air Holes | Weight | ||
| mm | inch | Front | Gauge | (kg) | |||
| COP32 | 85 | 3 1/3 | 8 | 4x12 | 6x13 | 2 | 4.2 |
| 90 | 3 5/9 | 8 | 4x12 | 6x14 | 2 | 4.5 | |
| 95 | 3 3/4 | 8 | 5x12 | 6x14 | 2 | 4.7 | |
| 100 | 3 8/9 | 8 | 6x12 | 8x12 | 2 | 5.0 | |
| 105 | 4 1/8 | 8 | 6x12 | 8x13 | 2 | 5.3 | |
