Product Details:
Payment & Shipping Terms:
|
Material: | Carbide | Tapered Degree: | 7°, 11°, 12° |
---|---|---|---|
Connection: | Hex 19, 22, 25 | Bit Dia.: | 20mm, 21mm, 22mm |
Chipways: | Normal, Oblique, Flat, Oblique Flat | Chisel Size: | 10x7,13.5x8 Etc. As Requirements |
Color: | Green, Black, Yellow Or Cutomized | Packaging: | Carton, Wooden Box, Plastic Box |
High Light: | tc15 chisel drill bit,tc20 chisel drill bit,TC hard rock chisel drill bit |

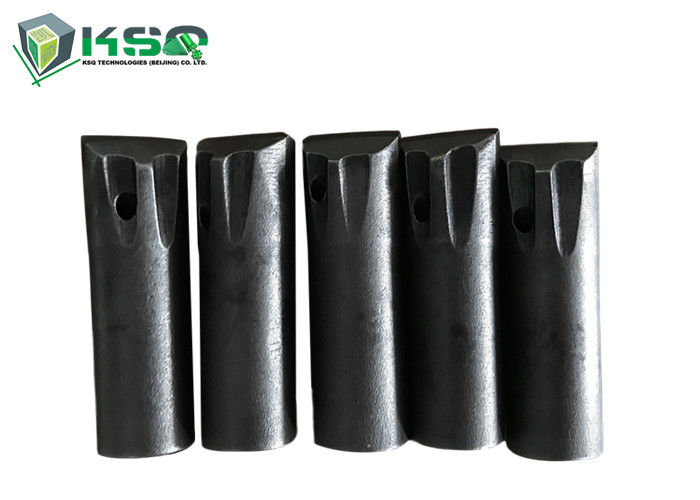

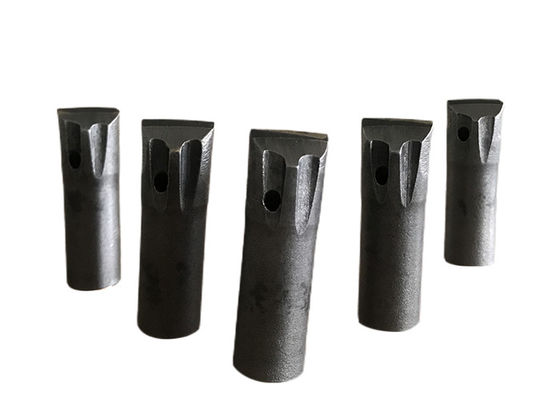

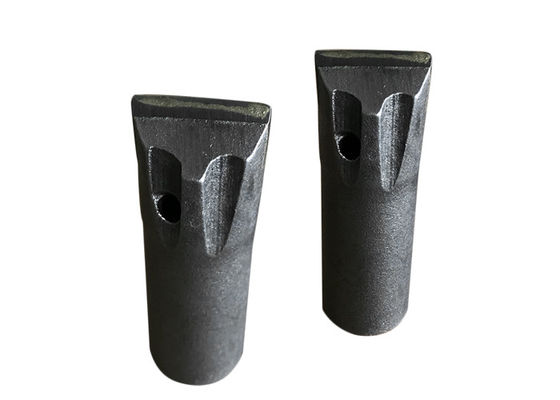

TC15-20 Tungsten Carbide Chisel Drill Bit for Small Hole Hard Rock Drilling
Applications
• Underground mining
• Dimensional Stone Industry
• Tunneling,quarrying
Feature
1. Tapered chisel bits connect with tapered drill rod for drilling holes
2. Stale and mature welding technology ensure good quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. Work reliable and very cost-effective
Specification of tapered chisel bits
Part Number |
Product Code and Brief Description |
Bit Diameter (mm) |
Bit Diameter (inch) |
Tip Size (W x H, mm) |
Weight (kg) |
4148300123 |
FC38-7D-23, 7° Taper Flat Chipways Chisel Bit |
38 | 1 1/2 | 16 x 10 | 0.36 |
4148300124 |
FC40-7D-23, 7° Taper Flat Chipways Chisel Bit |
40 | 1 4/7 | 16 x 10 | 0.38 |
4148300125 |
FC41-7D-23, 7° Taper Flat Chipways Chisel Bit |
41 | 1 3/5 | 16 x 10 | 0.41 |
4148300126 |
FC42-7D-23, 7° Taper Flat Chipways Chisel Bit |
42 | 1 2/3 | 16 x 10 | 0.43 |
4148300127 |
FC45-7D-23, 7° Taper Flat Chipways Chisel Bit |
45 | 1 7/9 | 22 x 16 x 10 | 0.6 |
4148300128 |
FC46-7D-25, 7° Taper Flat Chipways Chisel Bit |
46 | 1 4/5 | 22 x 16 x 10 | 0.61 |
4148300129 |
FC48-7D-25, 7° Taper Flat Chipways Chisel Bit |
48 | 1 8/9 | 22 x 16 x 10 |
0.63 |
