Product Details:
Payment & Shipping Terms:
|
| Type: | 537 Tricone Drill Bit | Material: | High Manganese Steel, Diamond |
|---|---|---|---|
| Application: | Coal Mining,Quarry Drilling,DTH Drilling | Color: | Request |
| Advantage: | High Wear Resistance And High Toughness | Formation: | Soft To Hard |
| Bearing Type: | Rubber Sealed And Metal Sealed | Export Markets: | Global |
| Size: | Customization Is Welcomed | Nozzle: | Normal |
| High Light: | 11 5/8 Diameter Tricone Bit,IADC 537G Tricone Bit,Geoloical Prospecting Tricone Drill Bit |
||

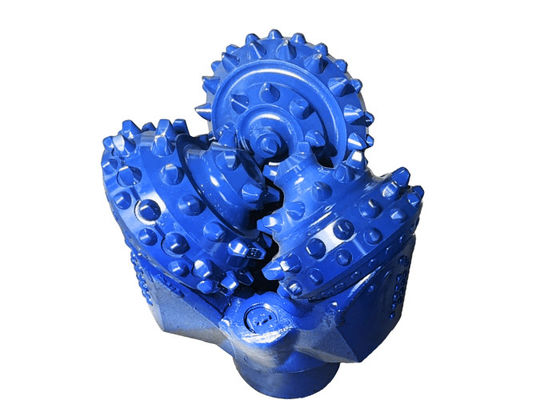

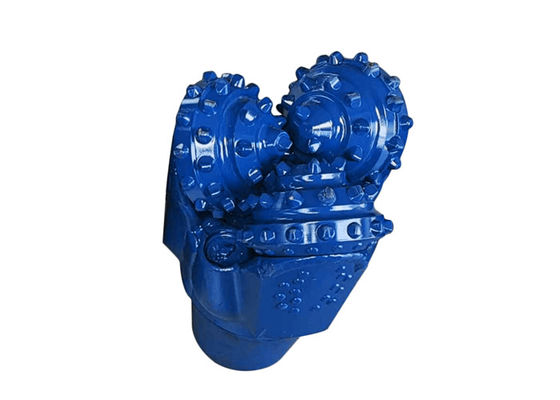

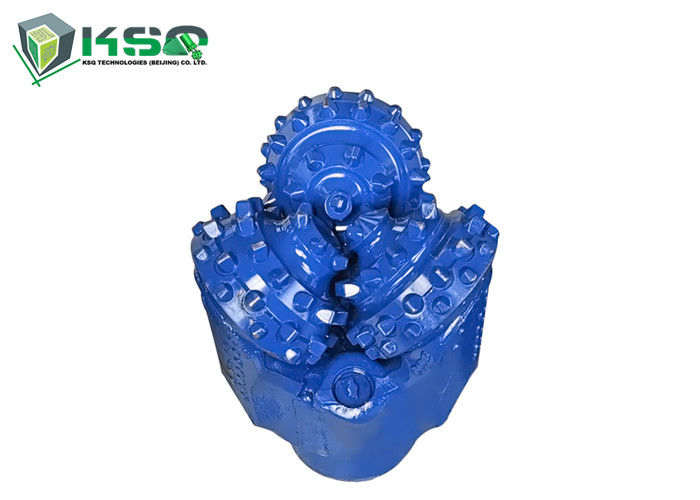

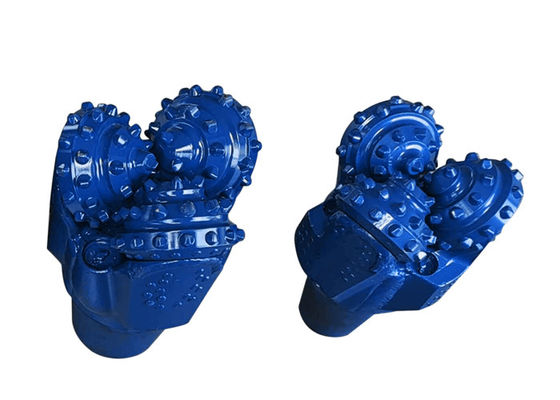

11 5/8 Diameter IADC 537G Tricone Bit For Geoloical Prospecting
KSQ tricone bit used for geoloical prospecting,development of oil and gas,drilling water wells,blast holes and making holes for seismic prospecting,construction engineering.now there are eleven common types of tricone rock bits.
Steel teeth series:IADC CODE:116,117,126,127,136,137,216,217,317,337,
TCI series:IADC CODE:417,437,447,517,527,537,547,617,627,637,647,737,837.
TCI tricone bit, tci roller Bits ,roller bit,steel tooth roller bit,TCI roller bit,TCI tricone bit
1.Sizes rang from 3 7/8" to 26"
2.Covers almost all IADC code.
3.Reliable quality and reasonable price
Advantages of our products:
(1) Strong resistance to abrasion and impact resistance.
(2) Cutter's quality performance is good ,
(3) long work life
(4) stocks adequate, time delivery
(5) rich experience in drill bit
(6) good after-sales service
(7) High quality, competitive price
Specifications:
| Product Parameter | |
| Bit Size | 11 5/8 (295.3MM) |
| IADC Code | 537G |
| Connection | 6 5/8 inch API REG PIN |
| Nozzle Qty | 3NZ |
| Making up torque (KN.M) | 38~43.4 |
| MAX. WOB(KN) | ≤200 |
| FLOW Rate (IPS) | 24~32 |
| Application formation | Soft shale,limestone,dolomite |
| sandstone,hard gypsum,etc | |
