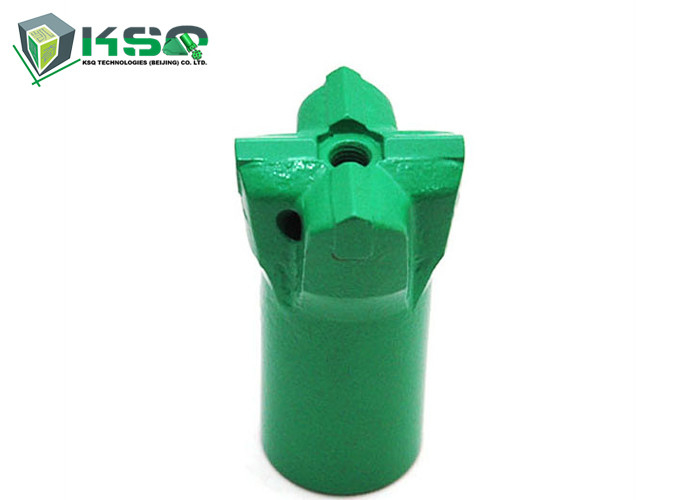

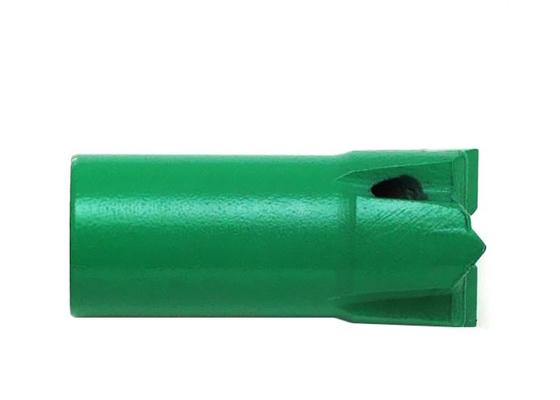

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining

  • High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining
  • High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining
  • High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining
High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO9001
Model Number: 4148300233-4148300240
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: USD$5-$20
Packaging Details: Carton Box or Wooden Box
Delivery Time: 15 days
Payment Terms: T/T or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: Tapered Cross Chisel Bit Material: Carbon Steel
Machinery: Tapered Cross Chisel Bit For Jack Hammer Processing Type: Forging
Advantage: High Performance With Competitive Price Use: Ore Mining
Color: Green Or Customize Machine Type: Drilling Tool
High Light:

short drill bits

,

high speed drill bits

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit For Mining



Description

Taper chisel bit (cross bit, button bit) is widely applicable to mining industry, tunneling and underground engineering, open pit, construction drill, blast industry, civil engineering operations, road, gas line, pipe and trench projects, quarry work, rock anchoring and ground stabilization projects, water well industry, etc.


• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry


Color: Green, or Based on Customer requirements


Material: Tungsten carbide


Processing: CNC milling and proprietary heat treatment process


Type: 11° Tapered Cross Type Bit


Applications

• Dimensional Stone Industry
• Underground Mining
• Tunneling


Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

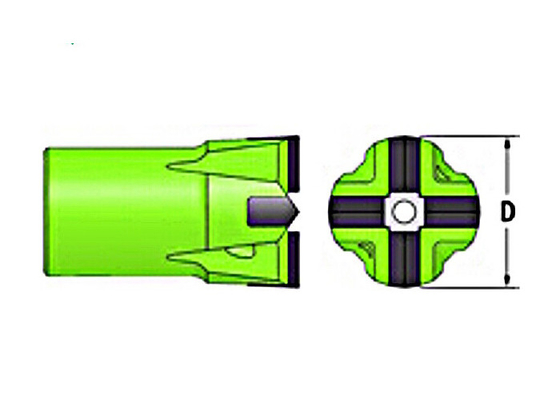

Specification

Part Number

Product Code and

Brief Description

Bit

Diameter

(mm)

Bit

Diameter

(inch)

Tip Size

(W x H, mm)

Front

Flushing

Holes

Side

Flushing

Holes


Weight

 (kg)

4148300233

CR29-11D-22, 11°

aper Cross Type Bit

29 1 1/7 12 x 8 1 2 0.25
4148300234

CR30-11D-22, 11°

Taper Cross Type Bit

30 1 1/6 12 x 8 1 2 0.26
4148300235

CR32-11D-22, 11°

Taper Cross Type Bit

32 1 1/4 12 x 8 1 2 0.3
4148300236

CR33-11D-22, 11°

Taper Cross Type Bit

33 1 2/7 12 x 8 1 2 0.32
4148300237

CR35-11D-22, 11°

Taper Cross Type Bit

35 1 3/8 12 x 8 1 2 0.36
4148300238

CR36-11D-22, 11°

Taper Cross Type Bit

36 1 3/7 12 x 8 1 2 0.39
4148300239

CR38-11D-22, 11°

Taper Cross Type Bit

38 1 1/2 12 x 8 1 2 0.43
4148300240

CR41-11D-22, 11°

Taper Cross Type Bit

41 1 3/5 14 x 8 1 2 0.49

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining 0High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining 1

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining 2

High Strength Alloy Steel 11 Degree Small Hole Drilling Rock Drill Taper Cross Bit  For Mining 3
