T45 Tungsten Carbide Thread Drilling Rod Extension Rod

T45 Tungsten Carbide Thread Drilling Rod Extension Rod

T45 Tungsten Carbide Thread Drilling Rod Extension Rod
T45 Tungsten Carbide Thread Drilling Rod Extension Rod
T45 Tungsten Carbide Thread Drilling Rod Extension Rod
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: iso
Model Number: T45 Extension Rod
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Drill Pipe, Bench And Production Drill Rods Material: Carbon Steel
Color: Black Or Customized Application: Mining / Quarrying / Tunneling/ Blasting
Rock Formation: Hard / Medium Hard / Soft Rock Formation Products Process: Heat Treatment &full Carburized
High Light:

Threaded Drill Rod

,

Drill Rod Threaded

,

drill extension rod

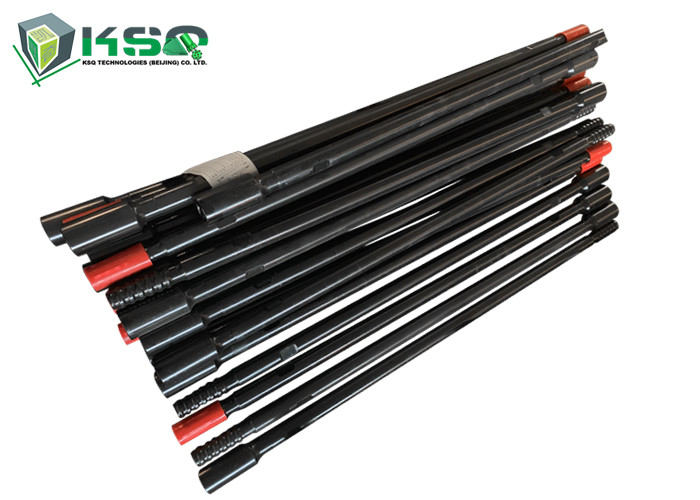

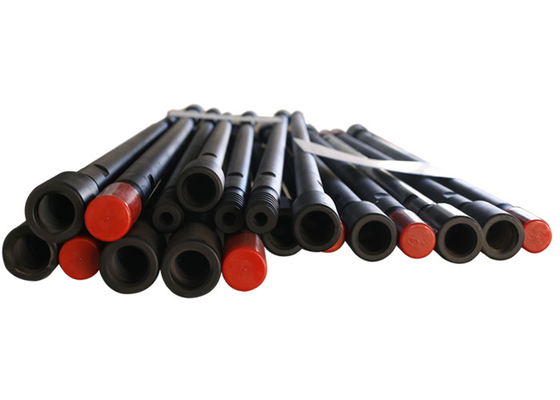

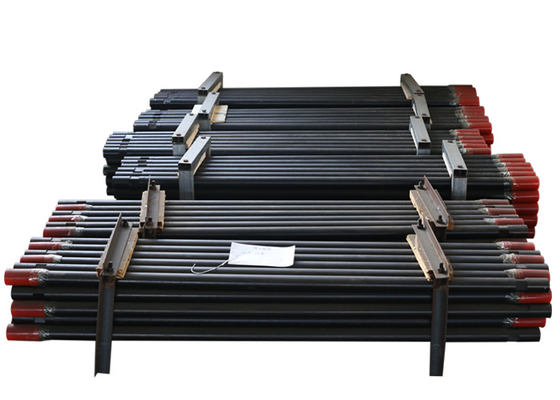

T45 Tungsten Carbide Thread Drilling Rod Extension Rod



Description

Our thread drill rods are made of high-intensity alloy steel .All the trails and threads are formed by high precision CNC machines. The thread is induced by induction hardening, then fast heating and cooling. The precision temperature controlled heat treatment equipment ensures the service life of the drill rod, improves the mechanical properties of the drill rod, Holistic carburization increases the carbon content in the outer layer of drill rod, and hardened outer steel body. The solid thread can fit perfectly with the inner wall of the drill bits,and complete various roadway tunneling, underground mining and open pit drilling task in complex rock and terrain rough drilling with high precision and high efficiency .



Note: We can design and manufacture according to customer's requirement of the Drifter Rod, Extension Rod, Speed Rod, MF-Rod and others.



Drill rod using T45 thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling.

• R28 thread system
• Suitable for small hole range


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: T45 Extension Rod T45-Round 46-T45 Flushing Hole 17 mm Wrench Flat 38 mm


Applications
• Underground Mining
• Tunneling


Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance


Specification

Part Number Product Code and Brief Description

Length

(mm)

Length

(ft/inch)

Diameter

(mm)

Diameter

(inch)

Weight

(kg)

4148300867

ER46-T45-1830,

T45 Extension Rod,

T45-Round 46-T45,

Flushing Hole 17 mm,

Wrench Flat 38 mm

1830 6     46 1 4/5 21.6
4148300868

ER46-T45-2435,

T45 Extension Rod,

T45-Round 46-T45,

Flushing Hole 17 mm,

Wrench Flat 38 mm

2435 8     46 1 4/5 28.3
4148300869

ER46-T45-3050,

T45 Extension Rod,

T45-Round 46-T45,

Flushing Hole 17 mm,

Wrench Flat 38 mm


3050 10     46 1 4/5 35.2
4148300870

ER46-T45-3660 ,

T45 Extension Rod,

T45-Round 46-T45,

Flushing Hole 17 mm,

Wrench Flat 38 mm

3660 12     46 1 4/5 42.1
4148300871

ER46-T45-4270,

T45 Extension Rod,

T45-Round 46-T45,

Flushing Hole 17 mm,

Wrench Flat 38 mm

4270 14     46 1 4/5 48.9
4148300872

ER46-T45-5530,

T45 Extension Rod,

T45-Round 46-T45,

Flushing Hole 17 mm,

Wrench Flat 38 mm

5530 18 1/7 46 1 4/5 63
4148300873

ER46-T45-6095,

T45 Extension Rod,

T45-Round 46-T45,

Flushing Hole 17 mm,

Wrench Flat 38 mm

6095 20     46 1 4/5 69.3



T45 Tungsten Carbide Thread Drilling Rod Extension Rod 0



T45 Tungsten Carbide Thread Drilling Rod Extension Rod 1
