| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||
|---|---|---|---|

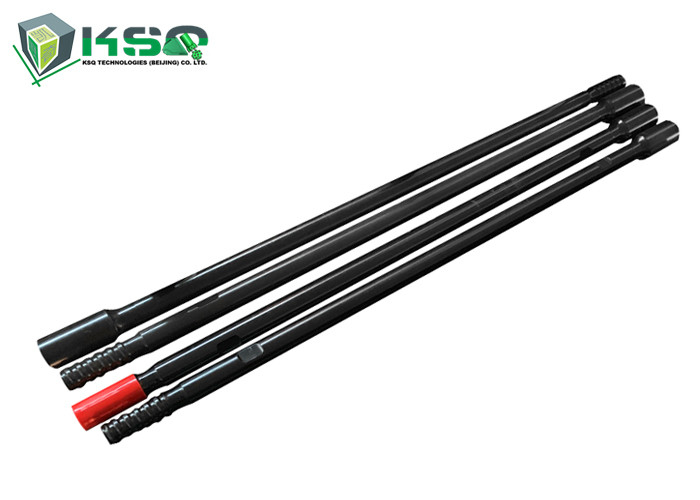

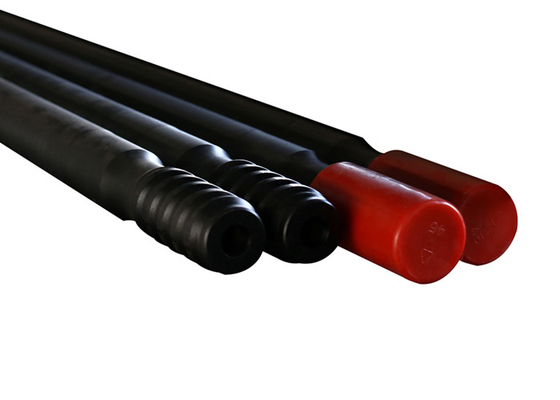

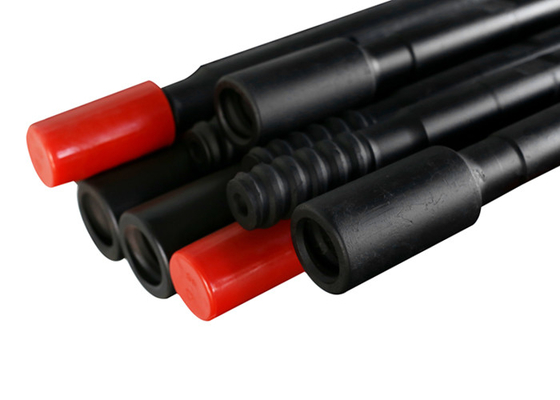

High Speed Round T45 Threaded Drill Rod With CNC Milling 5 Inch / 10 Inch
Description
Drill rod using T38/T45/T51 thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling. Used in benching and long hole drilling.Produce Hexagonal and round cross sections, Hexagon rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing. Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications. With the longer steel tending to be larger in diameter, conventional extension steel is characterized by a duplicate thread on each end of the steel.
Drill rod using T45 thread system. In good rock conditions it will produce straighter holes and at least 10% higher penetration rate compared to rod and coupling sleeve combination system.
• T45 thread system
• Widely used in drifting, tunneling, benching, and long hole drilling
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type:T45 Speed Rod T45-Round 46-T45 Flushing Hole 17 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
| 4148300874 |
MF46-T45-1525, T45 Speed Rod, T45-Round 46-T45, Flushing Hole 17 mm |
1525 | 5 | 46 | 1 4/5 | 21.2 |
| 4148300875 |
MF46-T45-1830, T45 Speed Rod, T45-Round 46-T45, Flushing Hole 17 mm |
1830 | 6 | 46 | 1 4/5 | 24.6 |
| 4148300876 |
MF46-T45-3050, T45 Speed Rod, T45-Round 46-T45, Flushing Hole 17 mm |
3050 | 10 | 46 | 1 4/5 | 38.2 |
| 4148300877 |
MF46-T45-3660, T45 Speed Rod, T45-Round 46-T45, Flushing Hole 17 mm |
3660 | 12 | 46 | 1 4/5 | 45.0 |
| 4148300878 |
MF46-T45-4270, T45 Speed Rod, T45-Round 46-T45, Flushing Hole 17 mm |
4270 | 14 | 46 | 1 4/5 | 51.9 |
| 4148300879 |
MF46-T45-5530, T45 Speed Rod, T45-Round 46-T45, Flushing Hole 17 mm |
5530 | 18 1/7 | 46 | 1 4/5 | 66.0 |
| 4148300880 |
MF46-T45-6095, T45 Speed Rod, T45-Round 46-T45, Flushing Hole 17 mm |
6095 | 20 | 46 | 1 4/5 | 72.3 |
