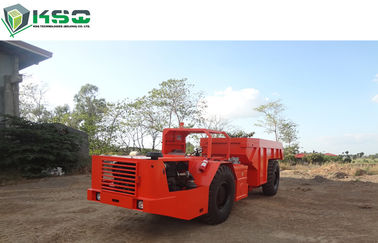

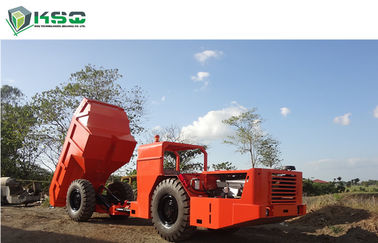

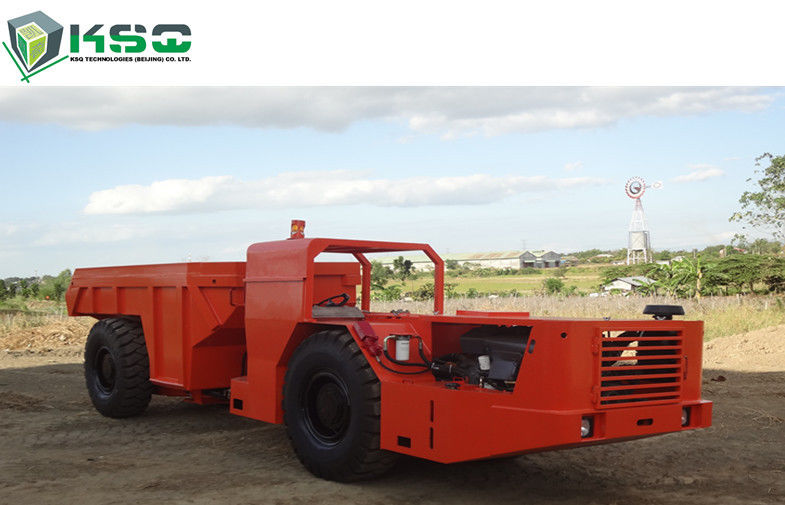

12 Ton Hydraulic Underground Low Profile Dump Truck For Railway Tunneling
Description
The trusted workhorse of miners and tunneling professionals, the RT-12 Low
Profile Dump Truck is ideal for medium size rock excavation operations that
require high haulage productivity. The RT-12 maintains the simple yet very
robust design tenets of what a mining equipment should be.
Ideal for medium size mining/tunneling operations requiring trackless loading and hauling
equipment for moving ore and debris
DEUTZ air-cooled engine, combined with best-in-class catalytic exhaust and silencer system
DANA SPICER OFF-HIGHWAY transmission and torque converter
DANA SPICER OFF-HIGHWAY axles
Spring applied hydraulic release service brakes
Color: Based on Customer requirements
Type: RT-12 Low Profile Dump Truck
Applications
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling
Competitive Advantage
Major components from industry respected suppliers
Simple yet very robust design
Very competitive pricing compared to its counterparts coming from well-known brands
Competitive delivery
specification
| Main Dimensions | |
| Lengh | 7956mm |
| Width | 1804mm |
| Height | 2150mm |
| Ground Clearance | 294mm |
| Dump Box Capacity | 6.0m3 |
| Maximum Dump Angle | 70° |
| Weights | |
| Deadweight | 15000kg |
| Payload | 12000kg |
| Fully Loaded | 27000kg |
