Name: Integral Drill Rods
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: H22x108mm
Price: 508.50 USD
Availability: InStock

Home Products Rock Drilling Tools

Integral Drill Rods

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	H22x108mm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Delivery Time:	20-30

Contact Now

Detailed Product Description

Model NO:	H19 H22 H25	Usage:	Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling
Material:	High Manganese Steel	Color:	Black
Product Name:	Integrall Drill Rod	Length Range:	From 400mm To 6000mm

Application of Integral Drill Rods:
The integral drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions.

Features of Integral drill rods:
Integral Drill Rod is used by a hand-held drill machine in underground mining for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc.
It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 28mm to 41mm usually.
According to different application, different lengths are available from 400mm to 4800mm usually.
Regarding Integral drill steels, the quality of a steel material and a tungsten carbide is very important to get good drilling performance.

Integral Drill Rods Specification:

Head diameter: 28mm to 41mm
Shank size: hex19/hex22/hex25*108mm/159mm
Length: 400mm to 4800mm

H22 x 108mm Integral Drill rod Specification

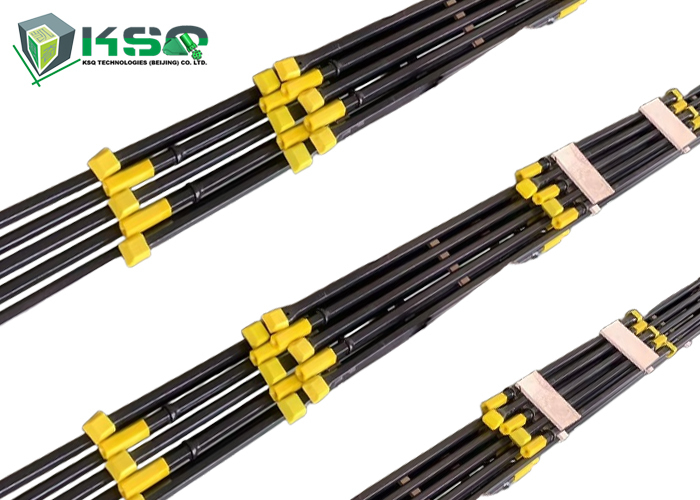

Integral Drill Rods 0

Length		Bit diameter	Weight	Part number
mm	ft	mm	Kg
800	2 5/8	34	3	4148300035
1600	5 1/4	33	5.2	4148300036
2400	7 7/8	32	8	4148300037
3200	10 1/2	31	10.2	4148300038
4000	13 1/8	30	12.9	4148300039
4800	15 3/4	29	15.1	4148300040
5600	18 3/8	28	17.6	4148300041
6400	21	27	20.1	4148300042
7200	23 5/8	26	22.5	4148300043
800	2 5/8	40	3	4148300044
1600	5 1/4	39	5.2	4148300045
2400	7 7/8	38	8	4148300046
3200	10 1/2	37	10.2	4148300047
4000	13 1/8	36	12.9	4148300048
4800	15 3/4	35	15.1	4148300049
5600	18 3/8	34	17.6	4148300050
6400	21	33	20.1	4148300051
7200	23 5/8	32	22.5	4148300052
8000	26 1/4	31	25	4148300053
400	1 1/3	34	1.7	4148300054
800	2 5/8	33	3	4148600055
1200	4	32	4.1	4148900056
1600	5 1/4	31	5.2	4149200057
2000	6 5/9	30	6.7	4149500058
600	2	41	2.4	4148300059
1200	4	40	4.3	4148300060
1800	6	39	6.2	4148300061
2400	7 7/8	38	8	4148300062
400	1 1/3	41	1.7	4148300063
800	2 5/8	29	3	4148300064
800	2 5/8	38	3.1	4148300065
1200	4	39	4.3	4148300066
1600	5 1/4	36	5.2	4148300067
1800	6	36	6	4148300068
2000	6 5/9	32	6.7	4148300069
2400	7 7/8	27	8	4148300070
3200	10 1/2	27	10.2	4148300071
3200	10 1/2	32	10.3	4148300072
6400	21	30	20.1	4148300073
8000	26 1/4	26	25	4148300074

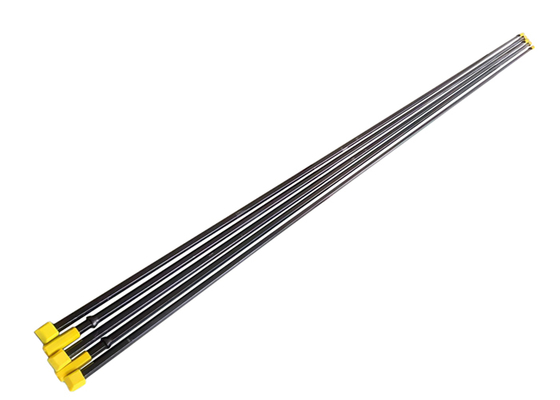

Integral Drill Rods 1

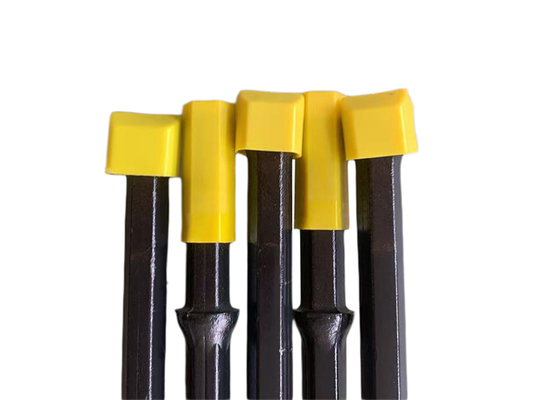

Integral Drill Rods 2

Integral Drill Rods 3 Integral Drill Rods 4 Integral Drill Rods 5
