Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm

Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm

  • Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm
  • Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm
  • Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm
  • Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm
  • Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm
Low Energy Consumption Ceramic Vacuum Filter System 4300 X 3100 X 2490mm
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE Certified
Model Number: TT-15
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 30-60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10+Unit+Month
Contact Now
Detailed Product Description
Color:: Yellow Application:: Mining
Place Of Origin:: China
High Light:

ceramic disc filter

,

vacuum disc filter

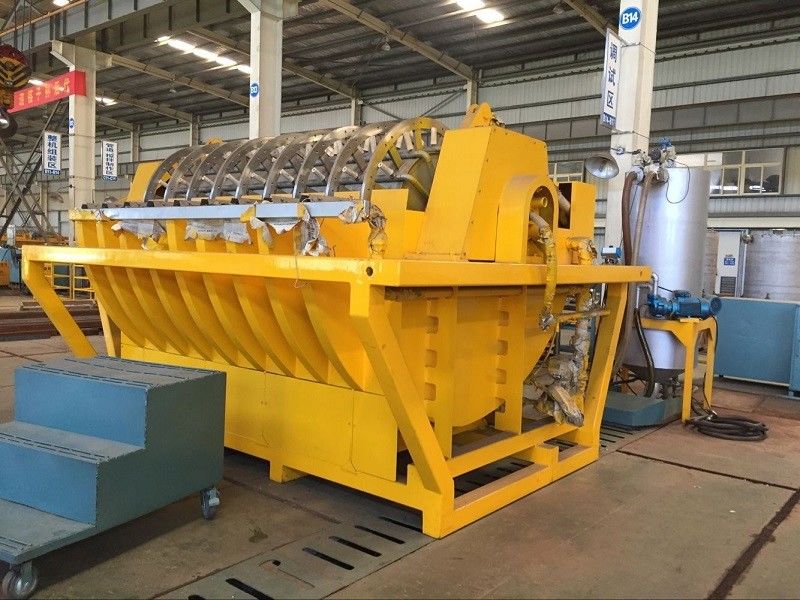

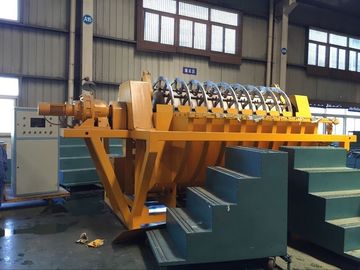

Improved Version of TT Series Vacuum Ceramic Filter System TT-15 3 square meter Filter

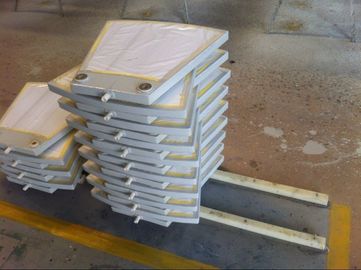

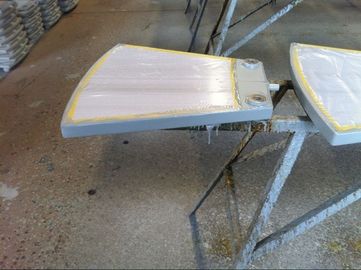

The TT Series Vacuum Ceramic Filter System is extensively used in the Mining industry to separate liquids from solids dewatering purposes. The operation and construction principle is similar to a convertional disc filter except the filter medium is replaced by finely porous ceramic discs, providing resistance to almost all chemicals and having a long operational life. The TT Series is designed and manufacturered based on specific requirements by clinents



Features:


1. Filtering area from 6 cubic meters up to 120 cubic meters
2. High vacuum degree, low moisture on formed cake
3. High filtration precision, solid filtration <50 ppm
4. Low energy consumption
5. Low running costs
6. Optional filter cake cleaning system
7. High degree of automation
8. Compact structure to minimize required floor space and make maintenance convenient
10. Advanced drainage system ensures application in any running condition


Main Technical Configuration:


Brand:ROXMECH
Liquid discharging way:Automatic liquid
Size (mm):

4300 x 3100 x 2490

Outer diameter of plate (mm):1920
Filter area (m2):15
Quanity of plate (Circle):5
Quantity of ceramic:60
Total weight:5.5t
Max. overhaul weight (t):1.4
Volume of tank (m3): 2

Installed power (kw):

12.1
Max.working power (kw):9.9
Power of spindle speed:2.2
Power of stirring speed:3
Power of vacuum: 2.35 x 2
Power of controlled volume pump (kw):0.2
98% dosage of nitric acid (kg/g):13.5
Clean water (m3/h):2.7
Entrance pressure of clean water (Mpa):0.35-0.5
Production water consumption (m3/d):12
Entrance pressure of production water:0.5-0.7
Air volume for gas back flushing (m3/min):1
Valve control gas:0.36
Air intake pressure (mpa):0.7
Main shaft speed (r/min):0.5-1.5
Speed of agitator (r/min):12-20








Our Service:

Our delivery can be 55 to 60 days;
We can offer training for our customers inside of our factory;
If the order is more then 5 units machines, we can send engineer to working side;
Offering some free spare parts together with the machines;
Can offer spare parts within short time;
Can change the machines based on customers' requirement.

Special service
Aside from the items above, there are also some special services,such as design service, customized product, training course, etc. The following paragraphs are brief introductions on these aspects.

Design service
Our design service means that our customers should supply relevant product drawings or specify their requirements, and our technicians will work out a design plan accordingly and then arrange production as customer requested. The design contents incluecab style, size of radiator, attachments of loader and more.

Training service
When it comes to training service, we offer technical manual to our customers, and we will provide group customers with drive and maintenance courses.In addition, OEM is also available.
