4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling

4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling

    • 4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling
    • 4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling
  • 4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: IADC Code F4446 / M432

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiable
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10 - 20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 3000pcs per month
    Contact Now
    Detailed Product Description
    Type: PDC Bits Material: Diamond And Alloy Steel
    Color: Green, Blue, Golden, Yellow Etc. Processing Type: Forging
    Cutter Dia.: Ø13 Cutters Application: Oil And Water Well Drilling

    PDC Drill Bit for IADC Code F4446 / M432​ with Power of Counterpoise Design

    Description:

    Matrix is relatively heterogeneous, because it is a composite material. Because the size and placement of the particles of tungsten carbide it contains vary (by both design and circumstances), its physical properties are slightly less predictable than steel.
    “Matrix” is a very hard, rather brittle composite material comprising tungsten carbide grains metallurgically bonded with a softer, tougher, metallic binder. Matrix is desirable as a bit material, because its hardness is resistant to abrasion and erosion. It is capable of withstanding relatively high compressive loads, but, compared with steel, has low resistance to impact loading.
    Matrix-body PDC bits are commonly preferred over steel-body bits for environments in which body erosion is likely to cause a bit to fail. For diamond-impregnated bits, only matrix-body construction can be used.

    Bit Selection Guide

    4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling



    Delivering Value and Advantages
    We can make various kinds of diamond drill bits and core bits form 4″ to 171/2″, and can research, develop, design and manufacture special purpose diamond bits according to customer’s requirements.

    We possess not only advanced diamond bit design & manufacturing techniques but also advanced manufacturing equipment. We also have high-technology talents coming back from abroad and high-qualified skilled technicians engaged in diamond bit manufacturing for more than 20 years.

    Our facilities are ISO9001:2000 Quality System Certified.The diamond bits made by us are completely in compliance with API and SY/T5217-2000 Standards.

    Specifications

    Regular Models of Tricone Bits
    Regular Sizes Regular IADC API Reg Pin Make-up Torque(N.m)
    3 7/8"(98.4mm) 126/216/637 2 3/8 4100~4700
    4 5/8"(117.4mm) 126/216/517/537/637 2 7/8 6100~7500
    5 1/4"(133.3mm) 126/216/517/537/637 3 1/2 9500~12200
    5 5/8"(142.8mm) 126/216/517/537/637 3 1/2 9500~12200
    5 7/8"(149.2mm) 126/216/517/537/637 3 1/2 9500~12200
    6"(152.4mm) 126/127/216/517/537/617/637 3 1/2 9500~12200
    6 1/4"(158.7mm) 126/127/216/517/537/617/637 3 1/2 9500~12200
    6 1/2"(165mm) 126/127/216/517/537/617/637 3 1/2 9500~12200
    7 1/2"(190mm) 126/216/517/537 4 1/2 16300~21700
    7 5/8"(193mm) 126/216/517/537 4 1/2 16300~21700
    7 7/8"(200mm) 126/216/517/537 4 1/2 16300~21700
    8 1/2"(215.9mm) 117/127/217/437/517/537/617/637 4 1/2 16300~21700
    9 1/2"(241.3mm) 117/127/217/437/517/537/617/637 6 5/8 38000~43400
    9 7/8"(250.8mm) 117/127/217/437/517/537/617/637 6 5/8 38000~43400
    10 5/8(269.8mm) 117/127/137/217/517/537/617/637 6 5/8 38000~43400
    11 5/8(295.3mm) 117/127/137/217/517/537/617/637 6 5/8 38000~43400
    12 1/4"(311.1mm) 114/127/217/437/517/537/617/637 6 5/8 38000~43400
    13 5/8"(346.0mm) 127/217/517/537/617/637 6 5/8 38000~43400
    14 3/4"(374.6mm) 127/217/517/537/617/637 7 5/8 46100~54200
    17 1/2"(444.5mm) 114/115/125/215/515/535/615/635 7 5/8 46100~54200
    26"(660.4mm) 114/115/125/215/515/535/615 7 5/8 46100~54200

    Application

    Oil and water well drilling.

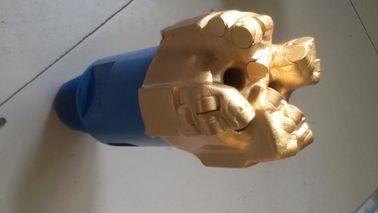

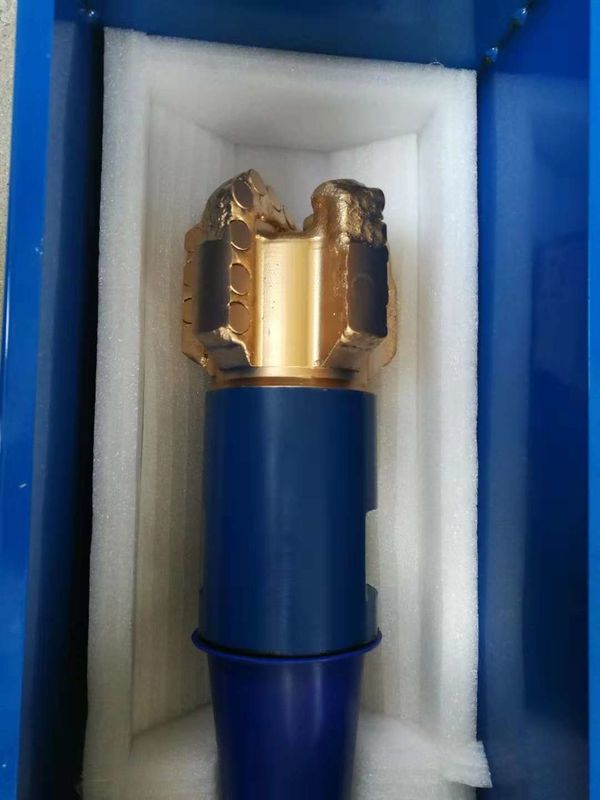

    Photo:

    4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling

    4 Blades Carbide Insert Drill Bits PDC Bits Forging For Water Well Drilling
