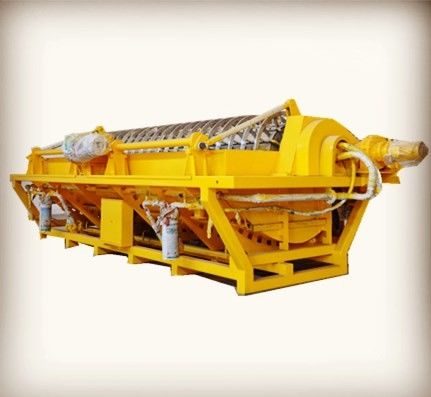

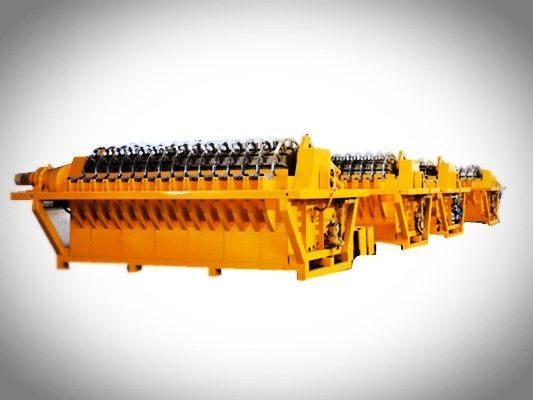

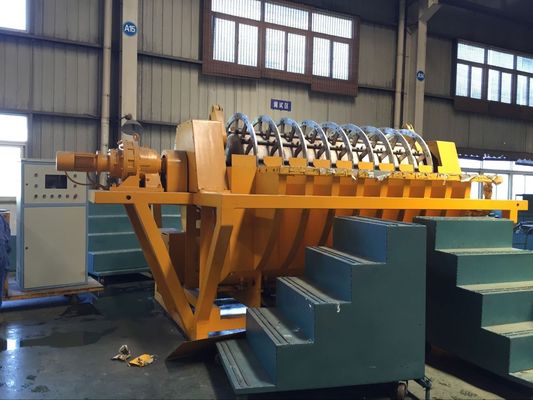

TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters

TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters

  • TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters
  • TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters
  • TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters
  • TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters
TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO 9001
Model Number: TT Series Vacuum Ceramic Filtration System
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 1000 - USD30000
Packaging Details: Iron Boxes
Delivery Time: 45 days - 60 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Color:: Yellow Type:: Automatic Liquid Discharging
Filter Area:: 2m³ To 120m³ Quanity Of Plate:: 1 Circle To 20 Circles
Outer Diameter Of Plate: 1510mm, 1920mm, 2182mm,2215mm,2360mm
High Light:

ceramic disc filter

,

vacuum disc filter

Application:



The TT Series Vacuum Ceramic Filter System is extensively used in the mining industry to separate liquids from solids for dewatering purposes. The operation and construction principle is similar to a conventional disc filter except the filter medium is replaced by finely porous ceramic discs, providing resistance to almost all chemicals and having a long operational life. The TT Series is designed and manufactured based on specific requirements by clients.



Features:

1. Filtering area from 6 cubic meters up to 120 cubic meters
2. High vacuum degree, low moisture on formed cake
3. High filtration precision, solid filtration < 50ppm
4. Low energy consumption
5. Low running costs
6. Optional filter cake cleaning system
7. High degree of automation
8. Compact structure to minimize required floor space and convenient maintenance
9. Advanced drainage system ensures application in any running condition

Automation on special functions available upon request.



Detail Specifications:

Small Capacity Systems from 2m2 ~ 9m2 filtration area

Model TT-2 TT-4 TT-6 TT-8 TT3C-9

Specification

(N m2 )

2m2 2m2 2m2 2m2

Liquid discharging

way

Automatic

liquid discharging

Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging

Size L×W×H

(mm)

2300×2480

×2100

2300×2480

×2100

2460×2480

×2100

2460×2480

×2100

2710×2480

×2100

2710×2480

×2100

2960×2780

×2100

2960×2780

×2100

2900×2850

×2450

Outer diameter of

plate (mm)

1510 1510 1510 1510 1510 1510 1510 1510 φ1920
Filter area (㎡) 2 2 4 4 6 6 8 8 9
Quantity of plate (Circle) 1 1 2 2 3 3 4 4 3
Quantity of ceramic 12 12 24 24 36 36 48 48 3
Total weight (t) 1.8 1.8 2 2 2.5 2.5 3 3 36
Max overhaul weight (t) 0.5 0.5 0.55 0.55 0.65 0.65 0.75 0.75 4
Volume of tank (m3) 0.7 0.7 0.85 0.85 1.1 1.1 1.3 1.3 1
Installed power (KW) 6.35 7.9 7.4 8.95 7.7 9.25 8.8 10.35 1.1
Max working power (KW) 5.85 7.4 6.6 8.15 6.6 8.15 7.4 8.95 8
Power of spindle speed 0.75 0.75 1.5 1.5 1.5 1.5 1.5 1.5 6.6

Power of

stirring speed

2.2 2.2 2.2 2.2 2.2 2.2 3 3 1.5
Power of vacuum 1.45×2 1.45 1.45×2 1.45 1.45×2 1.45 1.45×2 1.45 2.2
Powere of circulation   3   3   3   3 1.45×2
Power of controlled volume pump (KW) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Power of ultrasonic (KW) 0.3 0.3 0.6 0.6 0.9 0.9 1.2 1.2 1.2

98% dosage of nitric acid

(kg/d)

1.8 1.8 3.6 3.6 5.4 5.4 7.2 7.2 16.2
Clean water (m3/h) 0.36 0.36 0.72 0.72 1.08 1.08 1.44 1.44 38.88
Entrance pressure of clean water (Mpa) 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5
Production water consumption (m3/d) 4.2 4.2 5.1 5.1 6.6 6.6 7.8 7.8 6.6
Entrance pressure of production water 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.35 ~ 0.5
Air volume for gas back flushing (m3/min) 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.36
Valve control gas 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.7
Air intake pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.5 ~ 1.5
Main shaft speed (r/min) 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 12 ~ 20
Speed of agitator (r/min) 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20



Small Capacity Systems from 10m2 ~ 18m2 filtration area

Model TT-10 TT-12 TT-15 TT-18
Specification (N m2 ) 2m2 3m2 3m2 3m2
Liquid discharging way Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage
Size L×W×H (mm)

3210×2780

×2100

3210×2780

×2100

3200×3080

×2450

3200×3080

×2450

4300×3100

×2490

4300×3100

×2490

4600×3100

×2490

4600×3100

×2490

Outer diameter of plate (mm) 1510 1510 φ1920 φ1920 φ1920 φ1920 φ1920 φ1920
Filter area (㎡) 10 10 12 12 15 15 18 18
Quantity of plate (Circle) 5 5 4 4 5 5 6 6
Quantity of ceramic 60 60 48 48 60 60 72 72
Total weight (t) 3.5 3.5 5 5 5.5 5.5 6 6
Max overhaul weight (t) 0.85 0.85 1.2 1.2 1.4 1.4 1.5 1.5
Volume of tank (m3) 1.55 1.55 1.5 1.5 2 2 2.6 2.6
Installed power (KW) 9.1 10.65 9.2 10.75 12.1 15.25 12.5 15.65
Max working power (KW) 7.4 8.95 7.4 8.95 9.9 13.05 9.9 13.05
Power of spindle speed 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2
Power of stirring speed 3 3 3 3 3 3 3 3
Power of vacuum 1.45×2 1.45 1.45×2 1.45 2.35×2 2.35 2.35×2 2.35
Powere of circulation   3   3   5.5   5.5
Power of controlled volume pump (KW) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
Power of ultrasonic (KW) 1.5 1.5 1.6 1.6 2 2 2.4 2.4

98% dosage of nitric acid

(kg/d)

9 9 10.8 10.8 13.5 13.5 16.2 16.2
Clean water (m3/h) 1.8 1.8 2.16 2.16 2.7 2.7 3.24 3.24
Entrance pressure of clean water (Mpa) 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5
Production water consumption (m3/d) 9.3 9.3 9 9 12 12 15.6 15.6
Entrance pressure of production water 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7
Air volume for gas back flushing (m3/min) 0.67 0.67 1 1 1 1 1 1
Valve control gas 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.36
Air intake pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Main shaft speed (r/min) 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5
Speed of agitator (r/min) 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20



Parts Reference:

Dehydration Barrel:

TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters 0

Iron Box Packing :

TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters 1



Spare Parts Packing:



TT Series Separate Liquids From Solids Equipment In Mining Flotation Plant Disc Vacuum Filters 2
