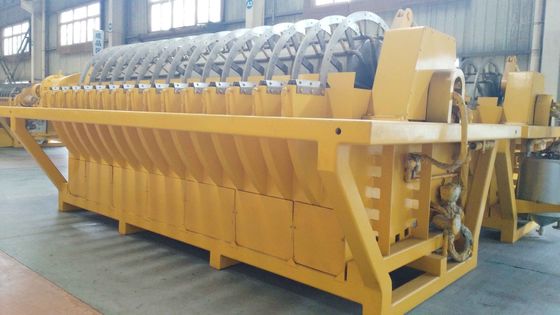

Mineral Ore And Industry Environmental Protection Vacuum Ceramic Filter

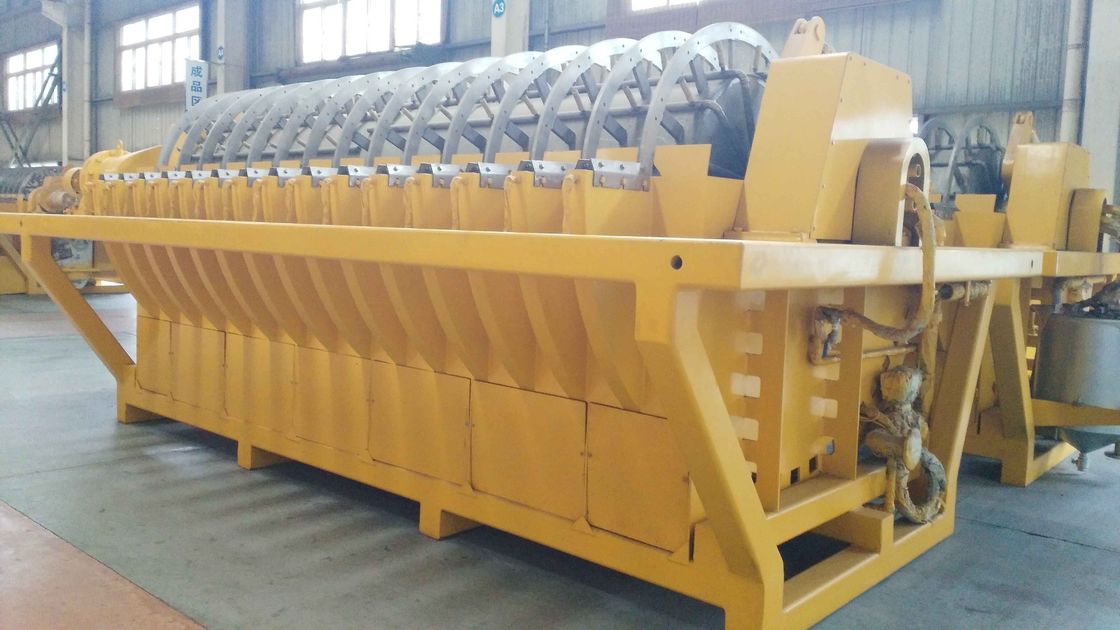

Mineral Ore And Industry Environmental Protection Vacuum Ceramic Filter

    • Mineral Ore And Industry Environmental Protection Vacuum Ceramic Filter
    • Mineral Ore And Industry Environmental Protection Vacuum Ceramic Filter
  • Mineral Ore And Industry Environmental Protection Vacuum Ceramic Filter

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: ISO 9001
    Model Number: TT Series Vacuum Ceramic Filtration System

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 1000 - USD30000
    Packaging Details: Iron Boxes
    Delivery Time: 45 days - 60 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Color:: Yellow Type:: Automatic Liquid Discharging
    Filter Area:: 2m³ To 120m³ Quanity Of Plate:: 1 Circle To 20 Circles
    Outer Diameter Of Plate: 1510mm, 1920mm, 2182mm,2215mm,2360mm

    Competitive Advantage:
    1. Very competitive pricing

    2. Efficient energy saving and environmental protection

    Production capacity increased by 50% over conventional filter

    Installed power is only the traditional vacuum filter 10%

    The filtrate has a solid content below 50 ppm and can be recycled

    3. Filter plate performance is superior

    Ceramic plate

    Uniform pore size distribution and ccontrollable, high porosity, good water permeability, and high compressive strength



    Our company has the only ceramic plate automatic spraying film production line in China, according to customer demand to produce different filter material filter plate, such as Al₂O₃, SiC and polymeric materials



    Polymer filter plate

    Corrosion resistance, high compressive strength, good filtration effect, wide application, light weight, recyclable, etc.



    Widely used in mining, chemical, smelting, titanium dioxide and other corrosive materials filtration

    4. Machine performance and stability Main component parts such as touch screen, PLC, inverter, metering pumps, pressure transmitters all installed by famous brands of international and domestic



    Application:



    Mineral concentrates



    Mineral concentrates are the product of ore dressing operations whereby valuable metals recovered through mining operations are separated from waste rock prior to shipment to market. After many mining operations people get the mineral slurry, at last they need the dry mineral concentrates that is shipped to refineries to produce metallic products, such as for minerals:



    Tailings Copper Zinc Palladium Metal salts
    Iron ore Aluminum Lead Cobalt ferrous metals
    Coal Silver Nickel Molybdenum Other concentrates



    Environmental protection industry



    Becides mineral industry, the application of filtration equipments also welcomed in below industries:



    1. Desulfurization and denitrification

    2. Stainless steel plants

    3. Boiler plants

    4. Building material plants

    5. Stone plants6. Ceramic plants





    Features:



    1. Filtering area from 6 cubic meters up to 120 cubic meters
    2. High vacuum degree, low moisture on formed cake
    3. High filtration precision, solid filtration < 50ppm
    4. Low energy consumption
    5. Low running costs
    6. Optional filter cake cleaning system
    7. High degree of automation
    8. Compact structure to minimize required floor space and convenient maintenance
    9. Advanced drainage system ensures application in any running condition

    Automation on special functions available upon request.







    Detail Specifications:



    Small Capacity Systems from 2m2 ~ 9m2 filtration area

    Model TT-2 TT-4 TT-6 TT-8 TT3C-9
    Specification (N m2 ) 2m2 2m2 2m2 2m2
    Liquid discharging way Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging
    Size L×W×H (mm) 2300×2480×2100 2300×2480×2100 2460×2480×2100 2460×2480×2100 2710×2480×2100 2710×2480×2100 2960×2780×2100 2960×2780×2100 2900×2850×2450
    Outer diameter of plate (mm) 1510 1510 1510 1510 1510 1510 1510 1510 φ1920
    Filter area () 2 2 4 4 6 6 8 8 9
    Quantity of plate (Circle) 1 1 2 2 3 3 4 4 3
    Quantity of ceramic 12 12 24 24 36 36 48 48 3
    Total weight (t) 1.8 1.8 2 2 2.5 2.5 3 3 36
    Max overhaul weight (t) 0.5 0.5 0.55 0.55 0.65 0.65 0.75 0.75 4
    Volume of tank (m3) 0.7 0.7 0.85 0.85 1.1 1.1 1.3 1.3 1
    Installed power (KW) 6.35 7.9 7.4 8.95 7.7 9.25 8.8 10.35 1.1
    Max working power (KW) 5.85 7.4 6.6 8.15 6.6 8.15 7.4 8.95 8
    Power of spindle speed 0.75 0.75 1.5 1.5 1.5 1.5 1.5 1.5 6.6
    Power of stirring speed 2.2 2.2 2.2 2.2 2.2 2.2 3 3 1.5
    Power of vacuum 1.45×2 1.45 1.45×2 1.45 1.45×2 1.45 1.45×2 1.45 2.2
    Powere of circulation   3   3   3   3 1.45×2
    Power of controlled volume pump (KW) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
    Power of ultrasonic (KW) 0.3 0.3 0.6 0.6 0.9 0.9 1.2 1.2 1.2

    98dosage of nitric acid

    (kg/d)

    1.8 1.8 3.6 3.6 5.4 5.4 7.2 7.2 16.2
    Clean water (m3/h) 0.36 0.36 0.72 0.72 1.08 1.08 1.44 1.44 38.88
    Entrance pressure of clean water (Mpa) 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5
    Production water consumption (m3/d) 4.2 4.2 5.1 5.1 6.6 6.6 7.8 7.8 6.6
    Entrance pressure of production water 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.35 ~ 0.5
    Air volume for gas back flushing (m3/min) 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.67 0.36
    Valve control gas 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.7
    Air intake pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.5 ~ 1.5
    Main shaft speed (r/min) 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 12 ~ 20
    Speed of agitator (r/min) 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20





    Small Capacity Systems from 10m2 ~ 18m2 filtration area

    Model TT-10 TT-12 TT-15 TT-18
    Specification (N m2 ) 2m2 3m2 3m2 3m2
    Liquid discharging way Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage
    Size L×W×H (mm) 3210×2780×2100 3210×2780×2100 3200×3080×2450 3200×3080×2450 4300×3100×2490 4300×3100×2490 4600×3100×2490 4600×3100×2490
    Outer diameter of plate (mm) 1510 1510 φ1920 φ1920 φ1920 φ1920 φ1920 φ1920
    Filter area () 10 10 12 12 15 15 18 18
    Quantity of plate (Circle) 5 5 4 4 5 5 6 6
    Quantity of ceramic 60 60 48 48 60 60 72 72
    Total weight (t) 3.5 3.5 5 5 5.5 5.5 6 6
    Max overhaul weight (t) 0.85 0.85 1.2 1.2 1.4 1.4 1.5 1.5
    Volume of tank (m3) 1.55 1.55 1.5 1.5 2 2 2.6 2.6
    Installed power (KW) 9.1 10.65 9.2 10.75 12.1 15.25 12.5 15.65
    Max working power (KW) 7.4 8.95 7.4 8.95 9.9 13.05 9.9 13.05
    Power of spindle speed 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2
    Power of stirring speed 3 3 3 3 3 3 3 3
    Power of vacuum 1.45×2 1.45 1.45×2 1.45 2.35×2 2.35 2.35×2 2.35
    Powere of circulation   3   3   5.5   5.5
    Power of controlled volume pump (KW) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
    Power of ultrasonic (KW) 1.5 1.5 1.6 1.6 2 2 2.4 2.4

    98dosage of nitric acid

    (kg/d)

    9 9 10.8 10.8 13.5 13.5 16.2 16.2
    Clean water (m3/h) 1.8 1.8 2.16 2.16 2.7 2.7 3.24 3.24
    Entrance pressure of clean water (Mpa) 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5
    Production water consumption (m3/d) 9.3 9.3 9 9 12 12 15.6 15.6
    Entrance pressure of production water 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7
    Air volume for gas back flushing (m3/min) 0.67 0.67 1 1 1 1 1 1
    Valve control gas 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.36
    Air intake pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
    Main shaft speed (r/min) 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5
    Speed of agitator (r/min) 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20





    Medium Capacity Systems from 10m2 ~ 18m2 filtration area

    Model TT-21 TT-24 TT-30 TT-36
    Specification (N m2 ) 3m2 3m2 3m2 4m2
    Liquid discharging way Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage Automatic liquid discharging Filter pump drainage
    Size L×W×H (mm) 4900×3100×2490 4900×3100×2490 5200×3170×2530 5200×3170×2530 5800×3170×2530 5800×3170×2530 5110×3435×2820 5110×3435×2820
    Outer diameter of plate (mm) φ1920 φ1920 φ1920 φ1920 φ1920 φ1920 φ2182 φ2182
    Filter area () 21 21 24 24 30 30 36 36
    Quantity of plate (Circle) 7 7 8 8 10 10 9 9
    Quantity of ceramic plate(pcs) 84 84 96 96 120 120 108 108
    Total weight (t) 6.5 6.5 7.5 7.5 9 9 9.7 9.7
    Max overhaul weight (t) 1.7 1.7 1.8 1.8 2.1 2.1 2.6 2.6
    Volume of tank (m3) 3.2 3.2 3.8 3.8 4.2 4.2 4.7 4.7
    Installed power (KW) 12.9 16.05 15.8 18.95 19.6 19.75 19.2 22.85
    Max working power (KW) 9.9 13.05 12.4 15.55 15.4 15.55 15.4 19.05
    Power of spindle speed reducer 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2
    Power of stirring speed 3 3 5.5 5.5 5.5 5.5 5.5 5.5
    Power of vacuum Pump(KW) 2.35×2 2.35 2.35×2 2.35 3.85×2 2.35 3.85×2 3.85
    Powere of circulation   5.5   5.5   5.5   7.5
    Power of controlled volume pump (KW) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
    Power of ultrasonic (KW) 2.8 2.8 3.2 3.2 4 4 3.6 3.6
    98dosage of nitric acid (kg/d) 18.9 18.9 21.6 21.6 27 27 32.4 32.4
    Clean water (m3/h) 3.78 3.78 4.32 4.32 5.4 5.4 6.48 6.48
    Entrance pressure of clean water (Mpa) 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5 0.35 ~ 0.5
    Production water consumption (m3/d) 19.2 19.2 22.8 22.8 25.2 25.2 28.2 28.2
    Entrance pressure of production water 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7 0.5 ~ 0.7
    Air volume for gas back flushing (m3/min) 1 1 1 1 1 1 2 2
    Valve control gas 0.36 0.36 0.36 0.36 0.36 0.36 0.36 0.36
    Air intake pressure(Mpa) 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
    Main shaft speed (r/min) 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5 0.5 ~ 1.5
    Speed of agitator (r/min) 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20 12 ~ 20
