Product Details:
Payment & Shipping Terms:
|
| Product: | R32 Button Bit | Diameter: | 38mm 48mm 64mm 76mm |
|---|---|---|---|
| Front Flushing Hole: | 2 | Side Flushing Hole: | 1 |
| Color: | Green | Part Number: | 4148300487 |
| High Light: | hardened steel drill bits,milling drill bits |
||

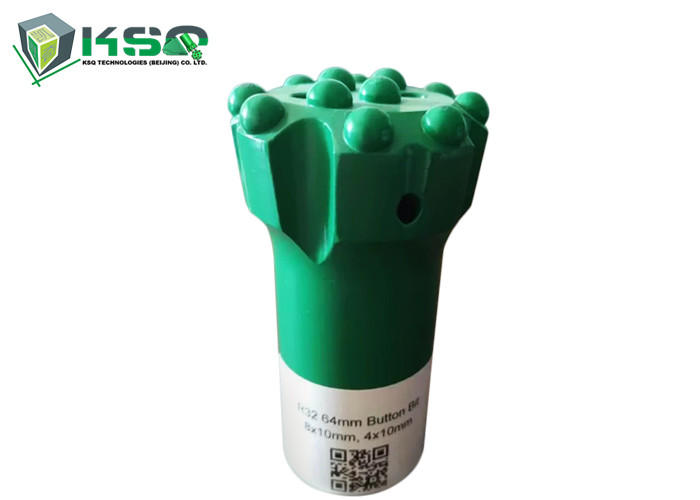

R32 64mm High Grade YK05 Tungsten Carbide Inserts Button Drill Bit
Thread: R32
Color: Green or Based on Customer requirements
Type: R32 Drill Bit
Widely used drifting and tunneling
|
Product name |
Tapered Button Bits |
|
Material |
Tungsten Carbides |
|
Application |
Quarrying, small hole drilling |
|
Advantage |
High Performance |
|
Color |
Customized |
|
Usage |
Mining / Quarrying / Tunneling |
|
Button Type |
Hemispherical/Parabolic/Ballistic / Conical |
R32 Thread Button Bit Specification
|
R32 Button Bit |
||||||||
|
Diameter |
Buttons and Size (mm) |
Flushing hole |
Weight |
Part Number |
||||
|
mm |
inch |
Front |
Gauge |
Angle |
Front |
Side |
kg |
|
|
Spherical |
||||||||
|
41 |
1 5/8 |
2×9 |
4×9 |
35° |
1 |
1 |
0.6 |
4148300487 |
|
41 |
1 5/8 |
2×8 |
5×9 |
35° |
1 |
1 |
0.7 |
4148300488 |
|
43 |
1 5/7 |
2×9 |
5×9 |
35° |
1 |
2 |
0.7 |
4148300489 |
|
43 |
1 5/7 |
2×9 |
5×10 |
35° |
1 |
1 |
0.7 |
4148300490 |
|
43 |
1 5/7 |
2×9 |
6×9 |
40° |
2 |
- |
0.7 |
4148300491 |
|
45 |
1 7/9 |
2×9 |
5×11 |
30° |
1 |
1 |
0.8 |
4148300492 |
|
45 |
1 7/9 |
2×9 |
6×10 |
35° |
2 |
- |
0.8 |
4148300493 |
|
45 |
1 7/9 |
3×8 |
6×10 |
30° |
3 |
- |
0.8 |
4148300494 |
|
48 |
1 8/9 |
2×9 |
5×11 |
35° |
1 |
1 |
0.9 |
4148300495 |
|
48 |
1 8/9 |
2×9 |
6×10 |
40° |
2 |
- |
0.9 |
4148300496 |
|
48 |
1 8/9 |
3×8 |
6×10 |
40° |
3 |
- |
0.9 |
4148300497 |
|
48 |
1 8/9 |
3×9 |
6×10 |
30° |
3 |
- |
0.9 |
4148300498 |
|
51 |
2 |
2×10 |
5×11 |
35° |
1 |
1 |
1 |
4148300499 |
|
51 |
2 |
2×10 |
6×10 |
40° |
2 |
- |
1 |
4148300500 |
|
51 |
2 |
3×9 |
6×10 |
35° |
3 |
- |
1 |
4148300501 |
|
57 |
2 1/4 |
3×9 |
6×11 |
35° |
3 |
- |
1.3 |
4148300502 |
|
64 |
2 1/2 |
3×10, 1×10 |
6×11 |
35° |
3 |
- |
1.6 |
4148300503 |
|
64 |
2 1/2 |
4×10 |
8×10 |
40° |
2 |
- |
1.6 |
4148300504 |
|
76 |
3 |
4×11 |
8×11 |
40° |
2 |
- |
2.6 |
4148300505 |
|
Ballistic |
|
|
|
|
|
|
|
|
|
41 |
1 5/8 |
2×8 |
5×9 |
40° |
1 |
1 |
0.7 |
4148300506 |
|
43 |
1 5/7 |
2×9 |
5×9 |
40° |
1 |
2 |
0.7 |
4148300507 |
|
43 |
1 5/7 |
2×9 |
6×9 |
40° |
2 |
- |
0.7 |
4148300508 |
|
43 |
1 5/7 |
3×8 |
6×8 |
40° |
3 |
1 |
0.7 |
4148300509 |
|
45 |
1 7/9 |
2×9 |
5×11 |
30° |
1 |
2 |
0.8 |
4148300510 |
|
45 |
1 7/9 |
2×9 |
6×9 |
40° |
2 |
2 |
0.8 |
4148300511 |
|
45 |
1 7/9 |
3×8 |
6×9 |
40° |
3 |
1 |
0.8 |
4148300512 |
|
48 |
1 8/9 |
2×9 |
5×11 |
35° |
1 |
1 |
0.9 |
4148300513 |
|
48 |
1 8/9 |
2×9 |
6×10 |
40° |
2 |
- |
0.9 |
4148300514 |
|
48 |
1 8/9 |
3×8 |
6×10 |
40° |
3 |
- |
0.9 |
4148300515 |
|
51 |
2 |
2×10 |
6×10 |
40° |
2 |
- |
1 |
4148300516 |
|
51 |
2 |
3×9 |
6×10 |
40° |
3 |
1 |
1 |
4148300517 |
|
54 |
2 1/8 |
3×9 |
6×10 |
40° |
3 |
1 |
1 |
4148300518 |
|
57 |
2 1/4 |
3×9 |
6×11 |
35° |
3 |
- |
1.3 |
4148300519 |
|
64 |
2 1/2 |
4×10 |
8×10 |
40° |
2 |
- |
1.6 |
4148300520 |
Applications
Used in small hole drilling.
1. Thread
2. Button Bit Diameter
3. Face Design: Flat Face or drop center
3. Body/Skirt: Rugular or retract body
